Pneumatic solenoid valve 5/2 bistable differential series 70 on base - Metal Work

€83.83 Tax included

€68.71 tax excl.

Solenoid valve on base plate 5/2 bistable differential series 70. Connector and coil not included.

Reference: 7011021300

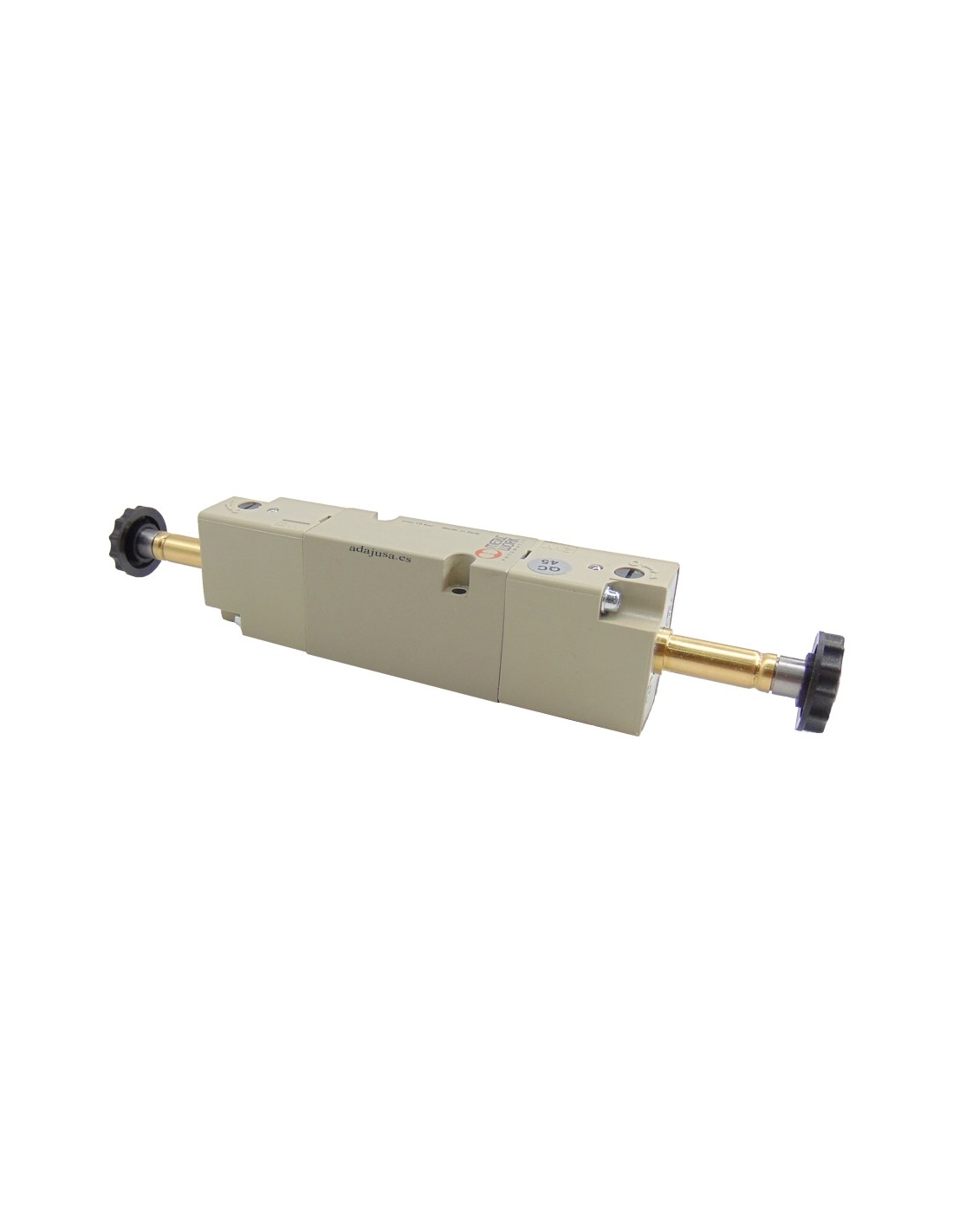

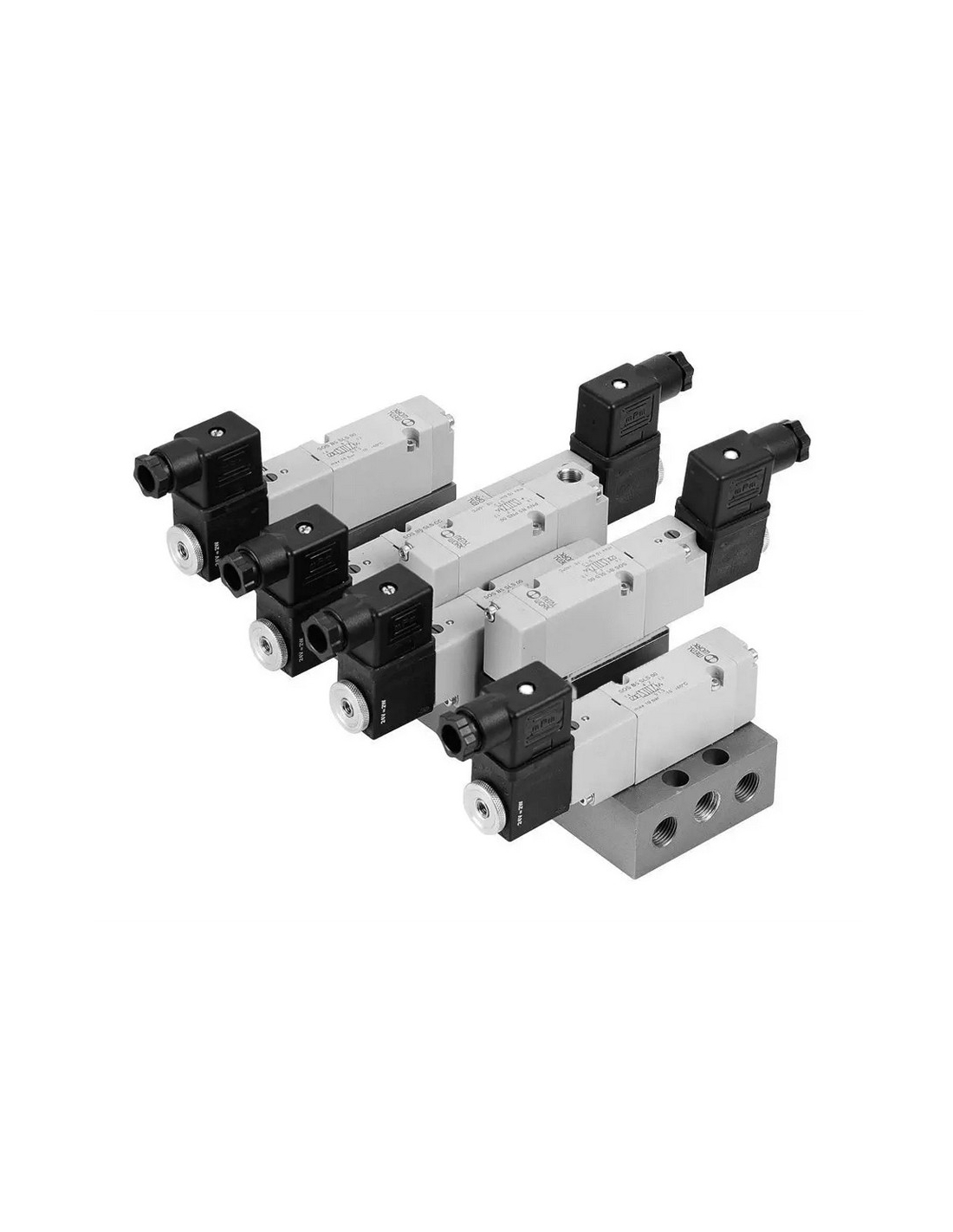

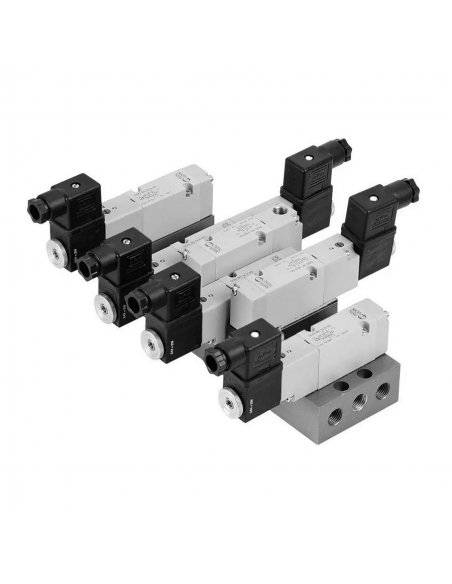

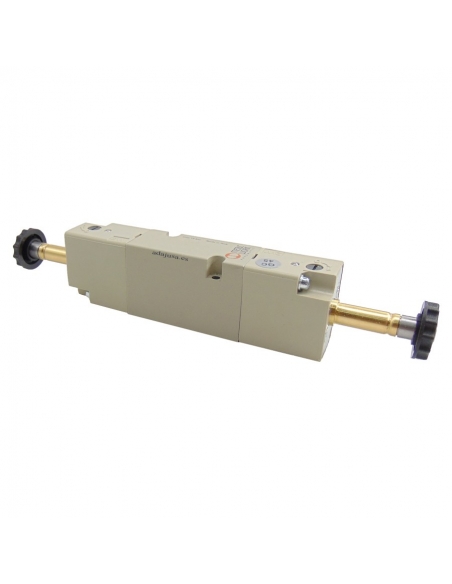

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve 5/2 bistable differential series 70 on plate. Connectors and coils not included.

Characteristics:
  • Manufacturer: Metal Work
  • Reference: 7011021300 - SOV B5 SOD OO
  • Pressure (bar): 1 +/- 10
  • Minimum pressure (bar): 2.5
  • Operating temperature (ºC): -10 +/- 60
  • Nominal diameter (mm): 5
  • Conductance C (N| /min - bar): 107.69
  • Critical ratio b (bar): 0.29
  • Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
  • Flow at 6 bar ∆P 1 bar (N| /min): 450
  • Monostable TRA/TRR at 6 bar (ms): 15 / 35
  • Tension tolerate (%): -10 +/- 15
  • Insulation class: F 155
  • Maximum torque core coil (Nm): 1



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
