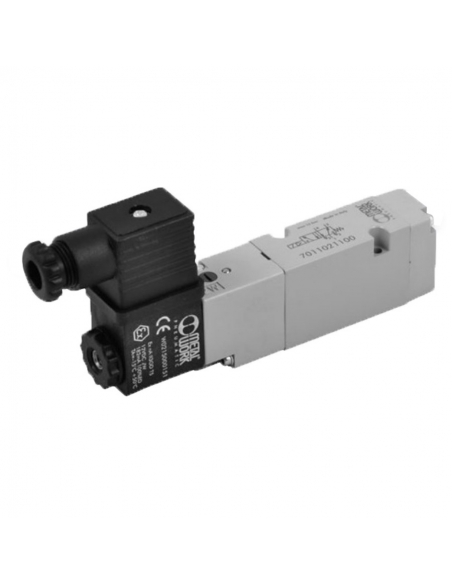

Solenoid valve 5/2 assisted monostable 230 Vac series 70 on base - Metal Work

€72.52 Tax included

59.44 tax excl.

PK-52230BA

Solenoid valve on base plate 5/2 assisted monostable series 70. With 230 Vac connector and coil


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve 5/2 assisted monostable series 70 on plate. With 230 Vac 3.5VA connector and coil

The supply includes:
  • Single-stable 5/2 assisted solenoid valve
  • Coil 230Vac 3.5VA
  • Connector 22 mm
Features:
  • Manufacturer: Metal Work
  • Reference: 7011021500 - SOV B5 SES OO
  • Pressure (bar): Empty +/- 10
  • Minimum pressure (bar): 2.5
  • Operating temperature (ºC): -10 +/- 60
  • Nominal diameter (mm): 5
  • Conductance C (N| /min - bar): 107.69
  • Critical ratio b (bar): 0.29
  • Flow rate at 6 bar ∆P 0.5 bar (N| /min): 320
  • Flow at 6 bar ∆P 1 bar (N| /min): 450
  • Monostable TRA/TRR at 6 bar (ms): 15 / 35
  • Tension tolerate (%): -10 +/- 15
  • Insulation class: F 155
  • Maximum torque core coil (Nm): 1
  • Voltage: 220- 240 Vac
  • Power: 3.5 VA



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
