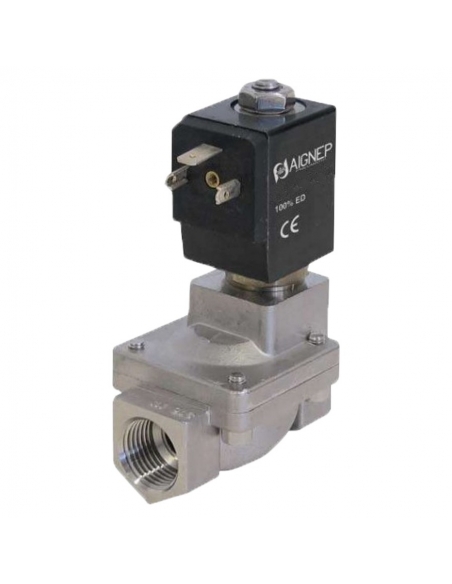

Solenoid valve fluids 1 1/2 2/2 230Vac 22VA indirect drive INOX FKM

Name: Solenoid valve fluids 1 1/2 2/2 230Vac 22VA indirect drive INOX FKM
Brand: Aignep
SKU: PK-11222230X
Price: 194.6406 EUR
Availability: InStock

€194.64 Tax included

€160.86 tax excl.

Electrovalve for home automation, fluids or process control, threaded 1" 1/2 in INOX AISI 316. Closed 2-way membrane valve (NC) indirect drive. Hole diameter 40 mm

Working pressure max. 13 bar. pressure dif. min. 0.5 bar.

Coil for electrovalve size 30mm, voltage 230Vac., with a consumption of 22VA. Connector 30 mm.

FKM gaskets: Temperature: -10º to +140º C. Fluid: Air, inert gas, water max 75º C, mineral oils, gasoline, fuel oil

Manufacturer: Aignep
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 30

€1.49

Solenoid valve coil 220Vac 22VA RSPJ

€11.52

solenoid valve fluids 1 1/2 2/2 closed indirect drive INOX joints FKM - ADAJUSA

Solenoid valve fluids 1 1/2 2/2 closed indirect drive INOX FKM joints

€181.63

No queries yet, leave the first!

Privacy

Shipments

Returns

1" 1/2, 2-way, normally closed (NC) membrane solenoid valve for use with fluids, indirectly operated. Body: INOX AISI 316.

Coil for solenoid valve size 30mm, voltage 230Vac., with a consumption of 22VA.

Plastic connector 30 mm.

Hole diameter: 40 mm

The main hole of the valve body is opened by the effect of an imbalance between the upper and lower surfaces of the membrane, when the coil is not activated, there is pressure in the upper chamber of the membrane, while in the lower chamber there is only pressure in the main hole of the valve, keeping it closed. When we give tension to the coil, we move the moving core, opening the piloting hole and doing the fluid discharge from the upper chamber, the pressure difference at this time causes it to open the main hole.

In this type of solenoid valves there must be a small pressure difference between the inlet and the outlet for it to work properly.

Supply includes:

1" 1/2 2-way NC solenoid valve
Coil 230Vac 22VA
Connector 30 mm

specifications:

Manufacturer: Aignep
Reference: RSP-40J
Type of control: indirect drive.
Thread size: 1" 1/2.
Number of tracks: 2.
Number of positions: 2.
Configuration: 2/2 closed (NC).
Coil voltage: 230Vac
Consumption: 22VA
Body: INOX AISI 316.
Guide tube, nuclei and spring: Stainless steel.
Gasket type: FKM.
Fluid type: Pressure air, water (max. 75oC), mineral oils, diesel, oil.
Maximum pressure: 13 bar.
ISO size 228: 1" 1/2.
Step: 40.
Minimum pressure differential (P bar): 0.5 bar.
Maximum Pressure Differential (P bar): 13
Working temperature of the solenoid valve: -10oC to +80oC.
Fluid temperature: -10oC to +140oC.
Installation: Never with the coil down.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
