Solenoid valve for discharge 1/2 2/2 closed...

Solenoid valve for discharge 1/2 2/2 closed 220Vac 21VA T30

Solenoid valve for discharge 1/2 2/2 closed 220Vac 21VA T30

Name: Solenoid valve for discharge 1/2 2/2 closed 220Vac 21VA T30
Brand: Aignep
SKU: PK-9097500005
Price: 60.7662 EUR
Availability: InStock

€60.77 Tax included

€50.22 tax excl.

1/2" normally closed (NC) condensate water discharge Solenoid valve , 1/2" outlet thread, brass body and internal stainless steel accessories, for compressor tanks and pneumatic installations. The 1/2" 2/2- way NC solenoid valve is compatible with a 13mm diameter coil and a size 30 connector. This type of solenoid valve, associated with a timer, and installed in a pressurized air installation, performs periodic purging. of water and other harmful elements that accumulate, avoiding the risk that they may pass to other circuits and pneumatic machines.

Coil for solenoid valve size 30mm, voltage 220Vac, with a consumption of 21VA, for 13mm diameter cores. 30mm connector

Max pressure 40 bar . Min. pressure: 0 bar .

Fluent:

Condensed

Adajusa discharge solenoid valve diagram
Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

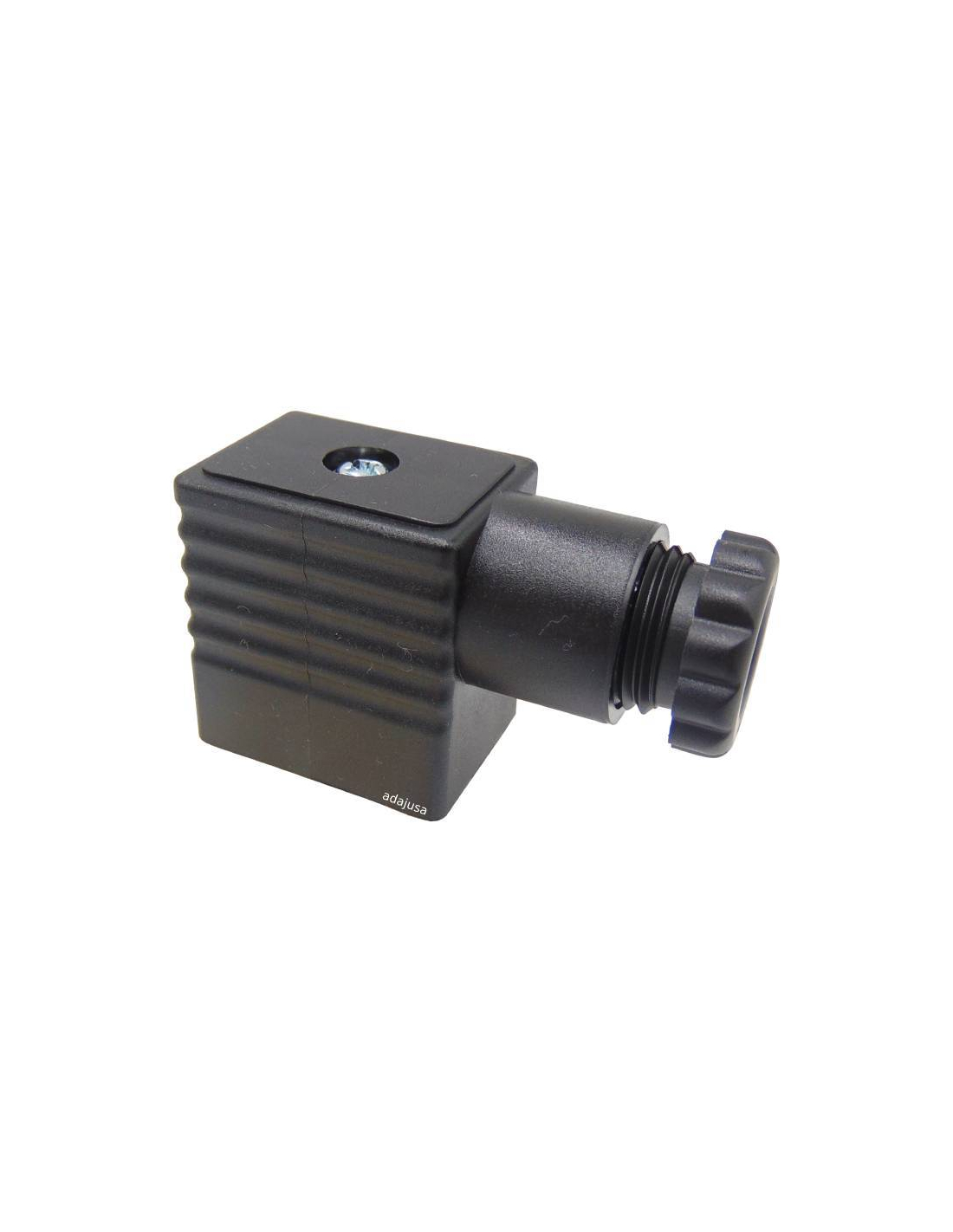

Solenoid valve connector size 30

€1.49

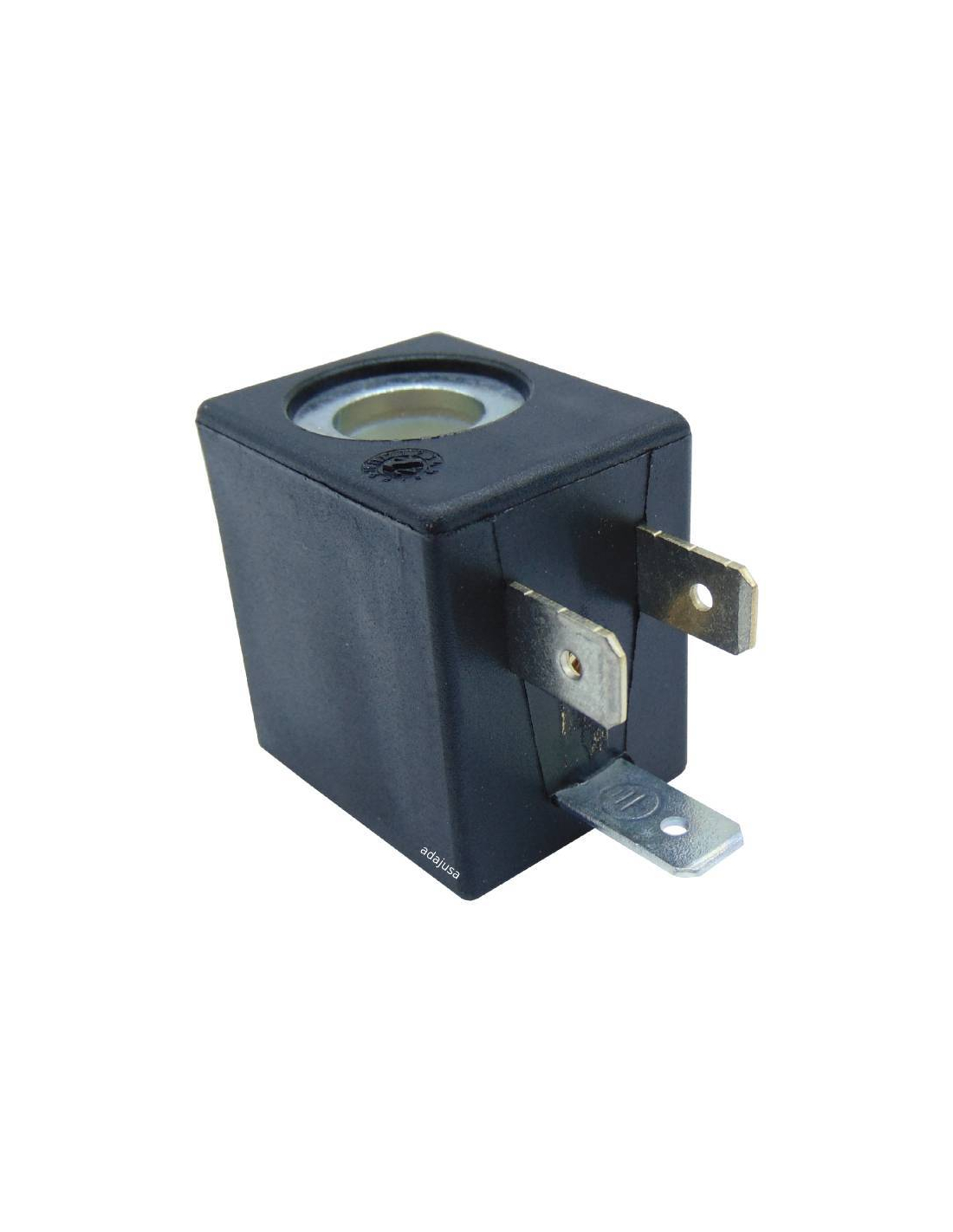

Solenoid valve coil 220VAC 21VA T30 diameter 13

€8.99

1/2 discharge Solenoid valve - Aignep

€50.29

No queries yet, leave the first!

Privacy

Shipments

Returns

This series of solenoid valves are manufactured with a CW617N brass body and NBR gaskets. The guide tube, cores and springs are made of stainless steel.

An excessive presence of condensation water in the pneumatic installation, due to negligence in drainage by manual means or by float purging, can be very harmful to an installation and the elements connected to it. The installation of a discharge solenoid valve allows you to automate its drainage process. This type of solenoid valve incorporates a manual shut-off valve and a manual discharge control.

The supply includes:

1/2" 2/2 NC Solenoid valve , with integrated manual shut-off valve
Coil 220Vac 21VA size 30
Connector size 30

Fluent:

Condensed

Technical characteristics:

Manufacturer: Aignep
Inlet thread size: 1/2
Outlet thread size: 1/2
Body: Brass
Gaskets: NBR
Maximum allowable pressure: 40 bar
Filtration degree: 500 um
Core diameter for coil: 13mm
Ambient temperature with coil in class H: -10ºC to +80ºC
Auxiliary shut-off valve type: Manual ball valve
Passage hole diameter: 3mm
Fluid viscosity: 53 cSt
Valve coefficient (Kv): 0.21 m3h
Differential pressure (OPD): 10 to 40 bar depending on the size and power of the coil

Compatible coils for this type of solenoid valve are SOL20 and SOL21 range, for 13mm diameter cores (SOL20 range coil included)

Solenoid valve dimensions:

Adajusa discharge solenoid valve dimensions

Adajusa discharge solenoid valve dimensions table

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
