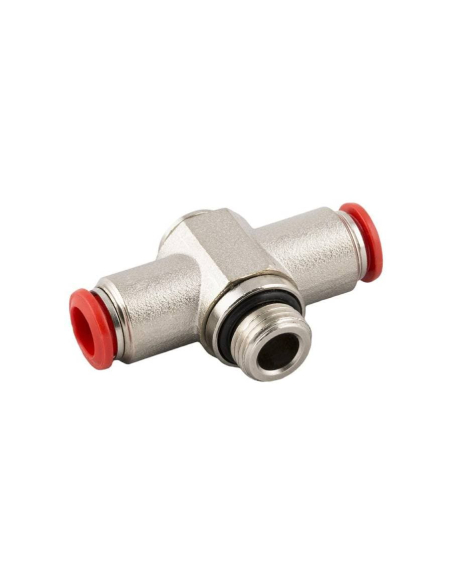

Double swivel fitting 1/8 pipe diameter 6mm with O-ring male Series 50000 - Aignep

Swivel fitting double diameter 1/8 tube diameter 6mm with gasket, made of chrome-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. On the fittings, the ring of the fitting is equipped with a screwdriver's slots to facilitate the disconnection in applications inaccessible to the fingers.

Technical characteristics:

• Manufacturer: Aignep.
• Part number: 50560 6 1/8
• Outer tube diameter: 6mm
• Thread: 1/8
• Fluid: Vacuum - Compressed air
• Working pressure: -0.99 bar at 20 bar
• Material: Chrome-plated brass
• Seal of retention: NBR
• Tube extractor ring: acetal resin
• Clamping spring: stainless steel
• Working temperature: -20ºC to +80ºC
• Thread standard
  • Gas conical according to ISO 7.1, BS 21,DIN 2999
  • Gas cylindrical according to ISO 228 Class A
  • Metric according to ISO R/262

Material for professional use, install in compliance with the regulations in force at the place of installation.
