Switch 3-pole 32A between lines

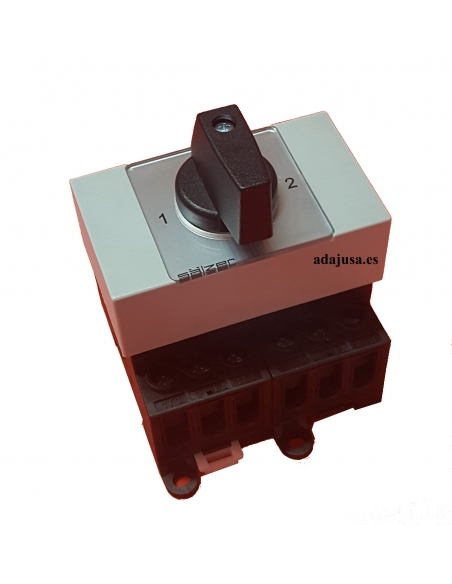

3-pole 32A manual switch for switching between power lines, allows to be mounted on standard distribution box, equal to those used for MCB circuit breaker and differential, l as on panel.

Switches between the 2 inputs with an output, this allows switching between two power lines, for example, between generator or inverter and general line, or between generator and inverter.

If used in photovoltaic installations, switching must always be performed on the AC mains output, it cannot be used in DC power.

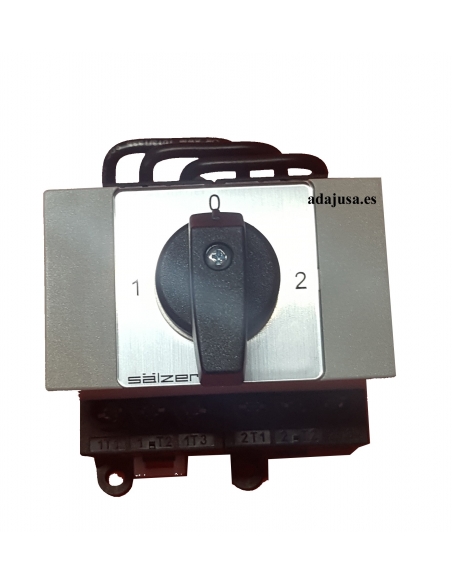

It has 3 positions:

• Position 1: Input 1 selected.
• Position 0: Isolated output, without any connected.
• Position 2: Input 2 selected.

Single-phase connection:

• Input 1: 1Q1 and 1T3.
• Input 2: 2T1 and 2T3.
• Output: L1 and L3.

Connection line 3 poles:

• Input 1: 1T1, 1T2 and 1T3.
• Input 2: 2Q1, 2T2 and 2T3.
• Output: L1, L2 and L3.

Attention: Do not remove the bridge connection at the exit.

Main technical characteristics:

• Manufacturer: Salzer.
• Reference: H226-71300-026M1.
• AC21A rated current: 32A.
• Maximum power 230Vac (AC21A): 5.5 kW.
• Maximum power 400Vac (AC21A): 11 kW.
• Current type: AC current.
• Maximum operating voltage (Ub): 690Vac.
• Number of poles: 3.
• Cutting capacity: 15kA.
• Maximum connection cable diameter: 6mm2.
• Actuator type: black lever.
• Front dimensions: 45x76mm.
• Degree of protection: IP30
• Working temperature: -25oC to 40oC.
• Regulations: 60947-1, EN 60947-3, EN 60947-5-1, EN 60204-1.
