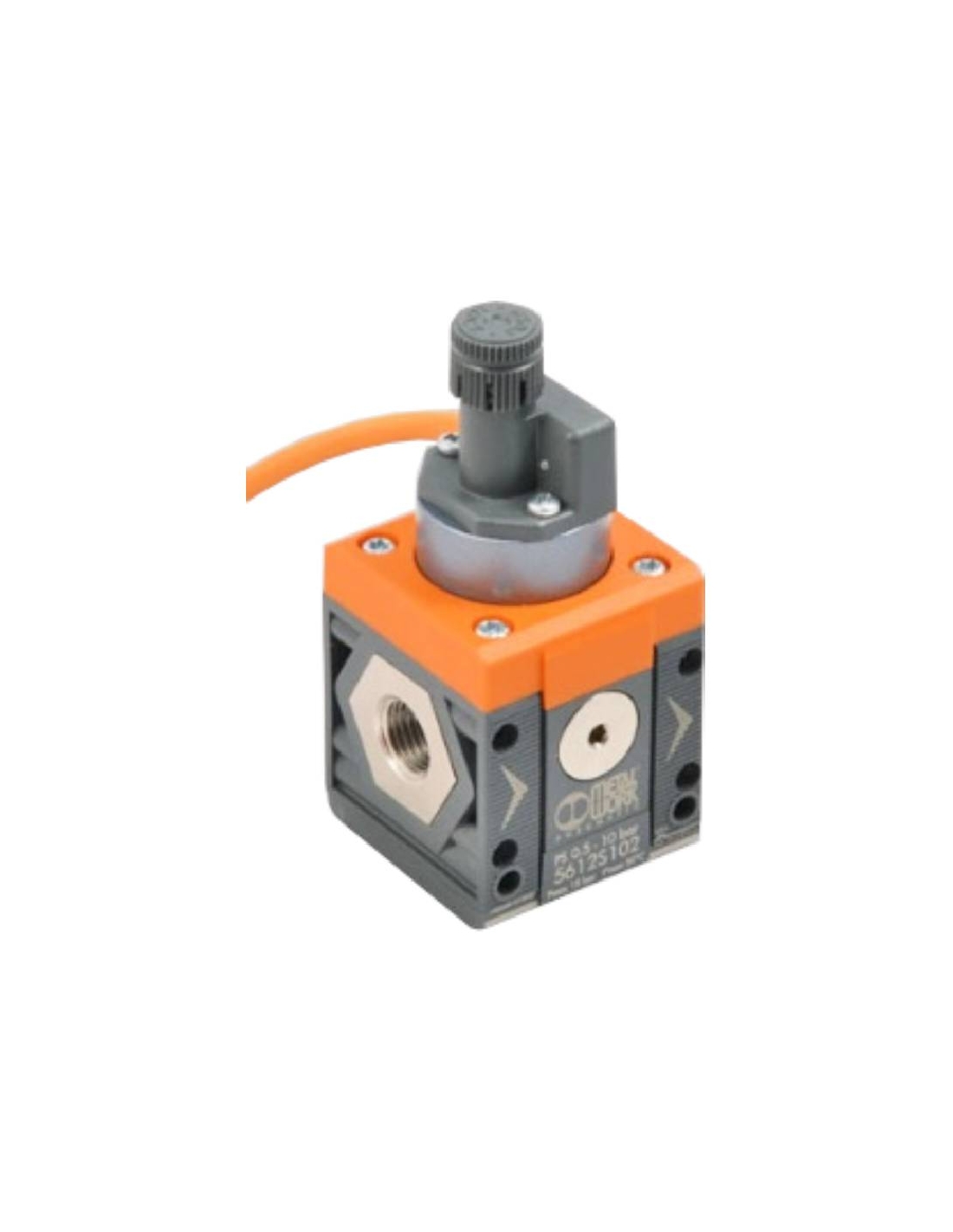

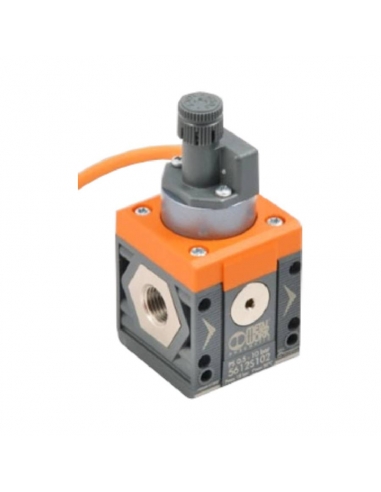

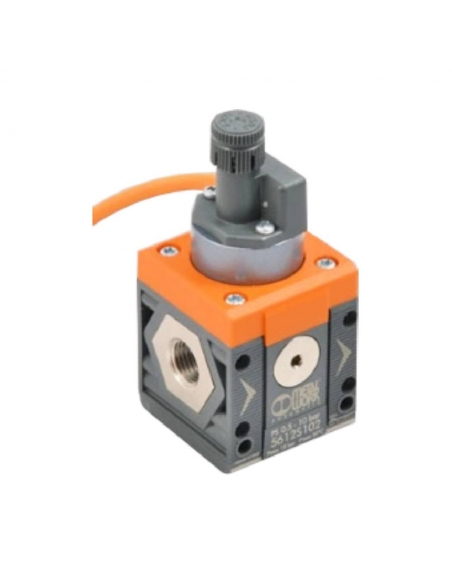

Pressure switch Size 2 1/2 2m cable Syntesi - Metal Work

1/2" size 2 pressure switch, it has a high degree of miniaturization. They are ready assembled with a 2 m cable or with an M8 connector with a 300mm cable. The contact is of the switch type, so they can be normally open or closed. They can be regulated by means of a knurled push-lock knob.

• Manufacturer: Metal Work
• Reference: 5624S104
• Discharge threaded coupling: 1/2"
• Maximum current / maximum voltage: 2A / 250V
• Cable outer diameter: 4.9mm
• Number and section of wires: 3 x 0.5mm²
• Contacts: normally open (NO) and normally closed (NC)
• Protection: IP65
• pressure max. admitted:
  • • bar : 13
    • MPa: 1.3
    • psi: 188
• Flow rate of additional air intakes 6.3 bar (0.63 MPa; 91 psi) ΔP 1 bar (0.1 MPa; 14 psi): Nl/min 1500 - scfm 53
• temperature at 10 bar ; 1MPa; 145psi°: -10÷+50
• Fluid: Filtered air with or without lubrication, if lubrication is used it must be continuous.
• Mounting position: In any position
• Supplementary air intake, for pressure gauge or fitting: 1/4”, front and rear
• Wall fixing screws: Number 2 M5 screws

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
