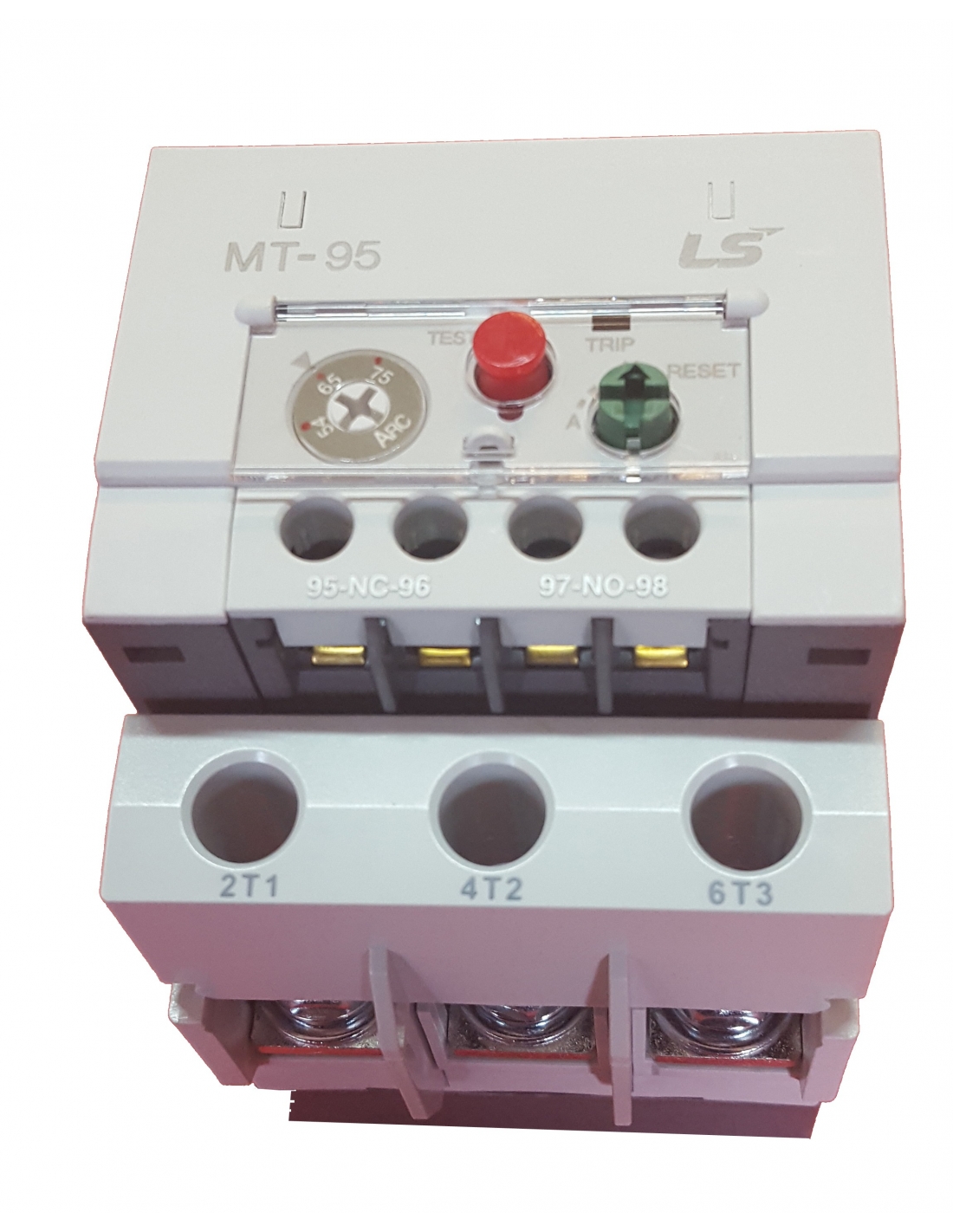

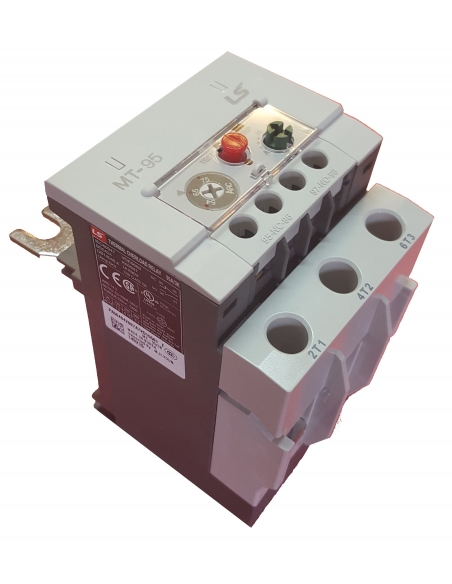

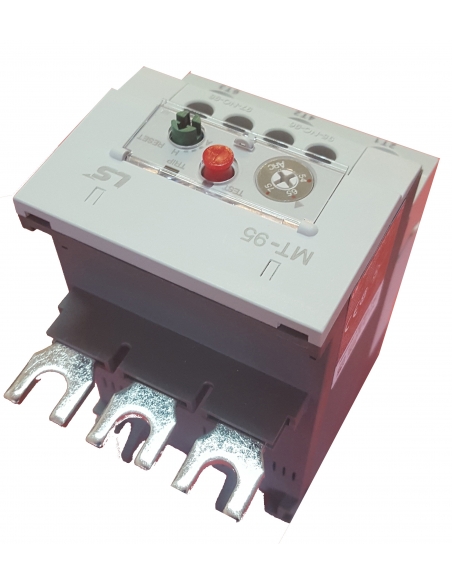

Thermal regulation relay 45 to 65 A - LS

thermal relay three-phase for protection of electric motors against overloads. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). The reset can be selected to occur automatically or manually by means of a button located on the body of the thermal relay. It has ambient temperature compensation, they also provide protection against unbalance and phase failure.

The thermal relay is designed to be coupled directly to the output of a contactor, it can also be fixed to a DIN rail using the available adapter.

Characteristics of the thermal relay:

• Manufacturer: LG- LS .
• Reference: MT-95 54A 3K
• Regulation range: 45 to 65A.
• Rated voltage Ue: 690V.
• isolation voltage: 690V.
• Maximum peak voltage Uimp: 6kV.
• Shooting class: 10.
• Compatible with MC-75, 85 and MC-100A contactors.
• Protection against unbalance and phase failure.
• Ambient temperature compensation between -5 and 40ºC.
• Weight: 0.5 Kg.
• Dimensions: 70x97x110mm.

For more information, you can download the technical sheet by clicking on the "Attached Files" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation.
