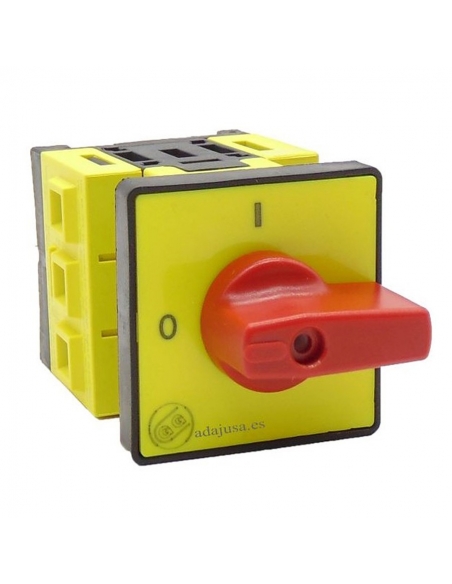

Three-phase disconnector switch 32A for inductive loads (Electric motors) and general control. Rotary command 90º with two positions 0-1. Plate in yellow and lever in red.
This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.
Mounting by rear-panel fixation (back frame), IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.
In addition to the transpanel mounting (back frame) the disconnector switch can be installed on din-rail fixing it by its base. an auxiliary contact can also be added and converted into 4 poles.
characteristics:
- Brand: Giovenzana.
- Vendor reference: SQ032003R.
- number of poles: 3.
- Rated voltage Ue: 690V.
- Nominal intensity Ie (AC21A): 32A.
- Nominal thermal intensity ith: 40a.
- Rated interrupt capacity: 8kA.
- Contacts: Slow opening of double interrupt.
- Number of maneuvers / hours: 120.
- Mechanical durability: 100,000 maneuvers.
- Maneuver angle: 90º.
- Built-in assembly.
- Degree of protection:
- Controls type 1-4-4X: IP-65.
- Bornes: IP-20.
- Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14
Table of intensities and powers of employment:
- Use category AC-21A: 40a.
- Use category AC-22A: 32A.
- Use category AC-23A:
- Standard three-phase motors 230Vac: 32A - 10kW.
- Standard three-phase motors 400Vac: 32A - 18,5kW.
- Use category AC-3:
- Standard three-phase motors 230Vac: 27A - 7,5kW.
- Standard three-phase motors 400VAc: 27A - 15kW.
dimensions:
assembly:
Material for professional use, has to be installed respecting the regulations in force at the place of installation.
