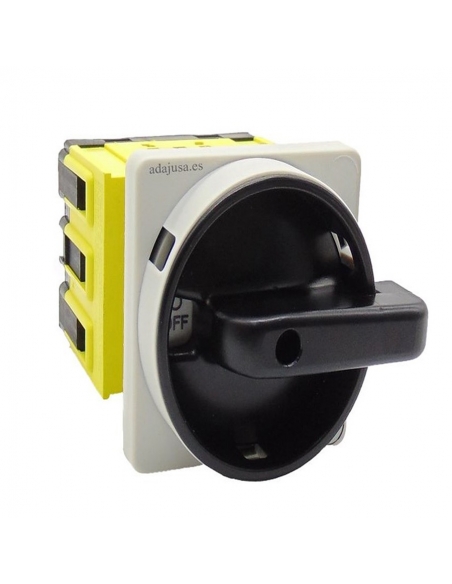

63A three-phase disconnector switch for inductive loads (electric motors) and general control. Rotary knob 90o with two positions 0-1. Grey color and black lever, possibility of locking.
This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.
Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.
In addition to the transpanel (rear-frame) mounting the disconnector switch can be installed on DIN rail by fixing it by its base. An auxiliary contact can also be added and converted to 4 poles.
An auxiliary pole can be added to become a 4-pole switch or an auxiliary pole with advance closure to become 3 Poles + Neutral. Open or closed auxiliary contacts as well as bribe covers can also be added.
Note: The supply does not include padlock.
Features:
- Brand: Giovenzana.
- Vendor reference: SQ063033R.
- Number of poles: 3.
- Rated voltage Ue: 690V.
- Nominal current Ie (AC21A): 63A.
- Thermal nomitanl intensity ith: 80A.
- Nominal interrupt capacity: 8kA.
- Contacts: Slow opening of double interruption.
- Number of manoeuvres / hours: 120.
- Mechanical durability: 100,000 maneuvers.
- Maneuvering angle: 90o.
- Built-in mounting.
- Degree of protection:
- Type 1-4-4X controls: IP-65.
- Bornes: IP-20.
- Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14
Table of intensities and powers of use:
- AC-21A usage category: 80A.
- AC-22A use category: 63A.
- AC-23A Usage Category:
- Standard three-phase motors 230Vac: 80A -
- Standard three-phase motors 400Vac: 75A -
- AC-3 Usage Category:
- Standard three-phase 230Vac motors: 60A
- Standard three-phase 400VAc motors: 60A
Dimensions:
Mounting:
As additional elements we can add the following references:
- Additional open pole: GISQ063AFPR
- Fourth pole (early closing): GISQ063ANIR
- Auxiliary contact closed: GISQ010AS3R
- Auxiliary contact open: GISQ010AS4R
- 3-pole terminal protection: GI20900041
