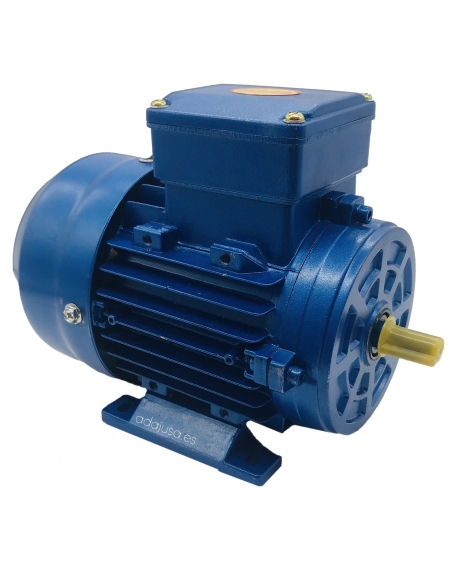

Three-phase motor 11Kw 15HP 400/690V 750 rpm B3 Legs Cast iron housing legs

Three-phase electric motor 11kW (15HP) 400/690V 750 rpm Flange B3 ( Legs ). Made in cast iron.
Standardized three-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55.

Characteristics:

• Manufacturer/Importer: Motorseg
• Reference: SSY-180L-8 B3 4/6
• Motor type: squirrel cage asynchronous.
• Efficiency: IE1.
• Voltage: 230/400 V. III. 50/60 Hz.
• number of poles: 8.
• Revolutions: 750 (730).
• Power: 11Kw (15HP).
• Intensity: 23.4/13.5A
• Performance: 88.7%
• Continuous service: S1.
• Protection degree: IP55.
• Fastening type: Flange B3 Legs
• Shaft diameter: Ø48mm
• Case size 180 (180L).
• Color blue.
• Weight: 170Kg.
• Housing material : cast iron.
• CE marking.

For more information, other powers or executions, consult.

As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems.
