Discs or single girth gears Z13 3/4 x 7/16 12B-1 ISO DIN 606

€13.39 Tax included

€11.07 tax excl.

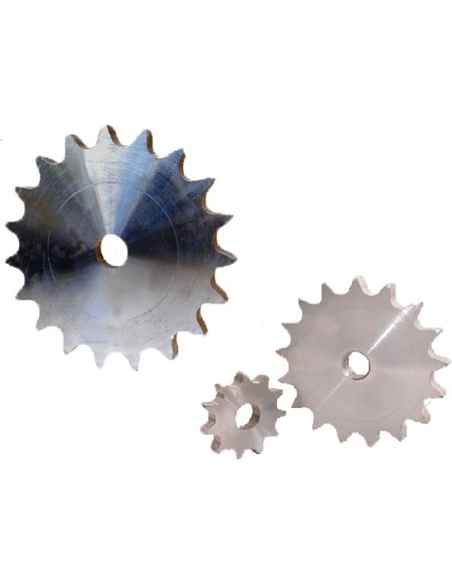

Toothed discs or simple toothed chains for roller chain 3/4" 12B-1 according to European standard DIN ISO 606

Reference: DISCO Z13 3/4

Teeth: 13

ISO: 12B-1 (3/4" - 7/16mm)

No queries yet, leave the first!


Toothed discs or simple toothed crowns Z13 (13 teeth) for roller chain 3/4" 12B-1
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISCO Z13 3/4

The toothed discs or toothed crowns are made of 1020 steel, and are used to transmit power between two shafts joined through a roller chain.

Characteristic:

  • 3/4” x 7/16”mm ISO 12B-1
  • 19.05 x 11.68mm
  • Teeth: 13
  • Tooth Radius: 19mm
  • Curved area width: 2 mm
  • Tooth width (h1): 11.1 mm
  • Outside Diameter (OD): 87.5
  • Primitive diameter (Dp): 79.59
  • Hub diameter (d): 15 (unmachined shaft)


Material for professional use, install in compliance with the regulations in force at the place of installation.
