Single discs or ring gears Z22 1 x 17.02 16B-1 ISO DIN 606

€67.43 Tax included

€55.73 tax excl.

Toothed discs or single toothed chains for roller chain 1" x 17,02mm 16B-1 according to European standard DIN ISO 606

Part number: DISCO Z22 1

Teeth: 22

ISO: 16B-1 (1" - 17,02mm)

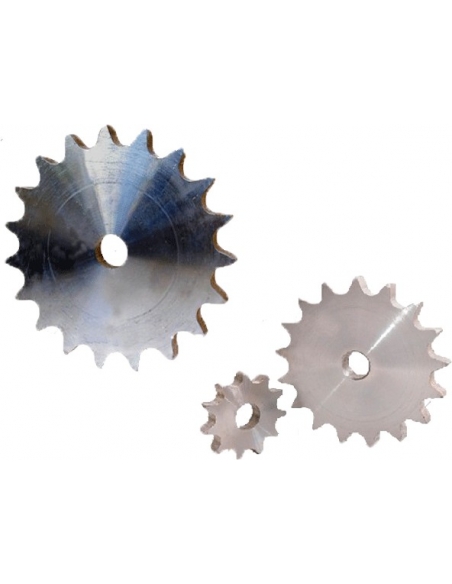

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

* Blind hole, with shaft hole size according to disc model, not customizable.

No queries yet, leave the first!
Privacy
Shipments
Returns


Z22 single sprocket discs (22 teeth) for roller chain 1" x 17,02mm 16B-1
Manufactured according to European standard DIN ISO 606

Manufacturer Technox

Reference: DISC Z22 1

The toothed discs or sprockets, are manufactured in 1020 steel, and are used to transmit power between two shafts connected through a roller chain.

Characteristics:

  • 1" x 17.02mm ISO 16B-1
  • 25.4 x 17.02mm
  • Teeth: 22
  • Tooth radius: 26 mm
  • Curved zone width: 2.5 mm
  • Tooth width (h1): 16.2 mm
  • Outside diameter (De): 189.3
  • Primitive diameter (Dp): 178.48
  • Bushing diameter (D): 20 (unmachined shaft)


Material for professional use, install in compliance with the regulations in force at the place of installation.
