Single discs or ring gears Z28 1 x 17.02 16B-1 ISO DIN 606

€102.84 Tax included

€84.99 tax excl.

No queries yet, leave the first!

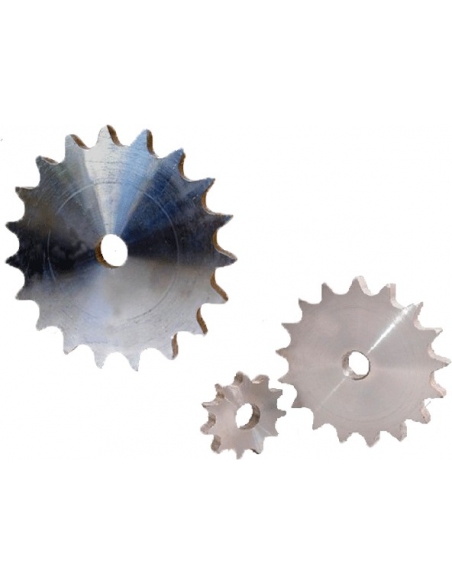

Single toothed discs or sprockets Z28 (28 teeth) for roller chain 1" x 17.02mm 16B-1
Manufactured according to European standard DIN ISO 606

Manufacturer: Technox

Reference: DISCO Z28 1

The toothed discs or toothed crowns are made of 1020 steel, and are used to transmit power between two shafts joined through a roller chain.

Characteristics:

  • 1” x 17.02mm ISO 16B-1
  • 25.4x17.02mm
  • Teeth: 28
  • Tooth radius: 26mm
  • Curved area width: 2.5 mm
  • Tooth Width (h1): 16.2mm
  • Outer Diameter (OD): 237.7
  • Primitive diameter (Dp): 226.85
  • Hub diameter (D): 20 (unmachined shaft)


Material for professional use, install in compliance with the regulations in force at the place of installation.
