Double toothed discs or crowns Z58 3/4 x 7/16 12B-2 ISO DIN 606 blind shaft

€508.09 Tax included

€419.91 tax excl.

Toothed discs or double toothed chains for roller chain 3/4" x 7/16" mm 12B-2 according to European standard DIN ISO 606

Part number: DISC Z58 3/4 DOUBLE

Teeth: 58

ISO: 12B-2 ( 3/4" x 7/16" mm )

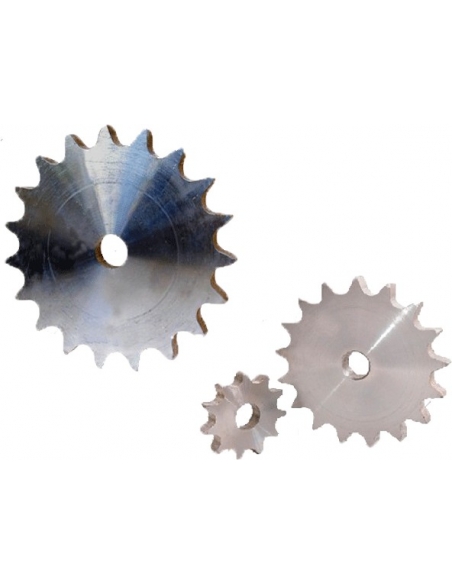

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

* Blind hole, with shaft hole size according to disc model, not customizable.

No queries yet, leave the first!
Privacy
Shipments
Returns


Z58 double sprockets (58 teeth) for roller chain 3/4" x 7/16" mm 12B-2.
Manufactured according to European standard DIN ISO 606

Manufacturer Technox

Reference: DISC Z58 3/4 DOUBLE

Toothed discs or sprockets, are manufactured in 1020 steel, and are used to transmit power between two shafts connected through a roller chain

Characteristics:

  • 3/4" x 7/16" mm 12B-2
  • 19.05 x 11.68 mm
  • Teeth: 58
  • Tooth radius: 19 mm
  • Curved zone width: 2 mm
  • Tooth width (h1): 11.1 mm
  • Outside diameter (De): 361.5
  • Primitive diameter (Dp): 351.87
  • Bushing diameter (D): 25 (shaft not machined)


Material for professional use, install in compliance with the regulations in force at the place of installation.
