V-belt pulley SPB 800x5 taper slot T4545

€1,206.98 Tax included

€997.50 tax excl.

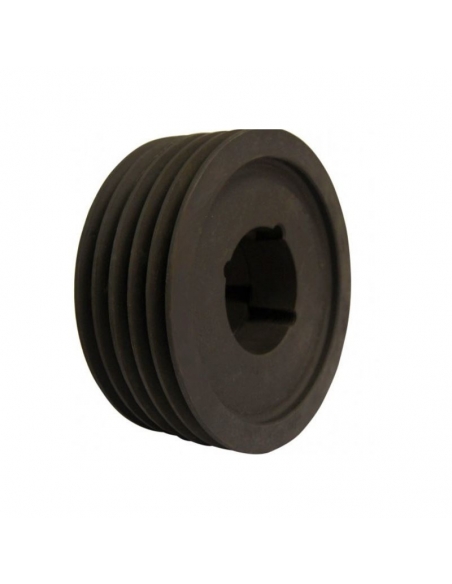

Pulley for V-belts Ø800mm, 5 belt slots . Machined for conical bushing - taper lock T4545. Made of cast steel and valid for all belts with a "V" profile type B and SPB. Manufactured according to ISO4183 - DIN2211.

Reference: POLE-SPB-800X5-T4545


  • Type of belts: "V" profile type B and SPB.
  • Diameter: 800mm.
  • Number of strap slots : 5.
  • Taper: T4545

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for "V" profile V-belts , for mechanical transmission. Manufactured from cast steel and steel, and according to DIN2211 - ISO4183 standard.

Machined trapezoidal pulley for "Taper Lock" conical bushing.

  • Reference: POLE-SPB-800X5-T4545
  • Supplier: TECHNOX

Technical characteristics:

  • Type: trapezoidal "V" profile.
  • Models: B and SPB.
  • Material: cast steel.
  • Diameter: 800mm.
  • number of slots : 5.
  • Conical bushing type - taper: T4545
  • Manufacturing standard: DIN2211 - ISO4183.
  • Tapered Cap : T4545

Note: The conical bushing is not included in the supply.

Dimensions:

Dimensions-pulleys-F4

  • Dp: 800mm
  • Od: 807mm
  • F: 101mm
  • J: 754mm
  • L: 102mm
  • M: 1mm
  • N: 210mm
  • 5 Slots
  • Taper: 4545

Material for professional use, install in compliance with the regulations in force at the installation site.
