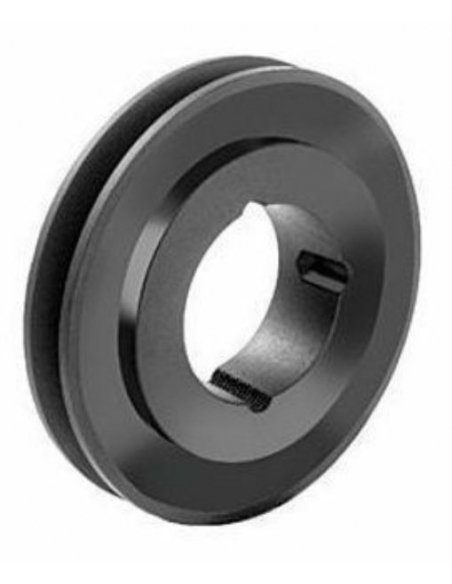

Pulley v-belt SPZ 75x1 taper slot T1108 - adajusa

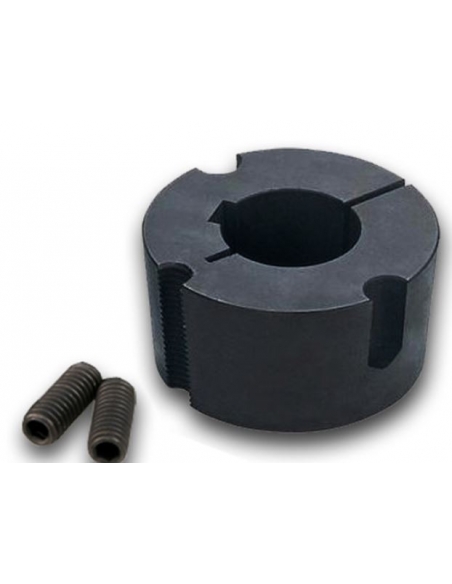

Taper lock size 1108
Pulley v-belt SPA 90x4 with taper T1615 - ADAJUSA
Pulley v-belt SPZ 75x1 taper slot T1108 - adajusa
Taper lock size 1108
Pulley v-belt SPA 90x4 with taper T1615 - ADAJUSA

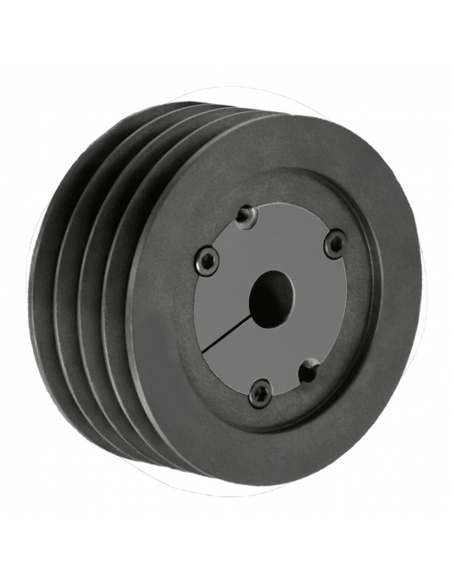

Pulley v-belt SPA 90x4 with taper T1615

€52.77 Tax included

€43.61 tax excl.

Pulley for trapezoidal belts Ø90mm, 4 slot with taper lock T1615 included. Valid for all straps with profile in "V" type A and SPA. Manufactured according to ISO4183 - DIN2211.

  • Type of straps: Profile in "V" type A and SPA
  • Pulley diameter. 90mm.
  • Number of strap slots: 4
  • Taper: T1615 (Available shaft diameters are selected from the side menu (right))

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pulley for trapezoidal belts profile in "V", for mechanical transmission. Made of cast iron and steel, and according to DIN2211 - ISO4183.

Machined trapezoid pulley with conical bushing "Taper Lock" T1615 with the hole and chavetero already machined to the diameter selected by the customer, with all prisoners and screws, made of GG25 machined iron.

Pulley dimensions:

  • (Dp): 90
  • (Od): 95.5
  • (F): 65
  • (J): 59
  • (K): 27
  • (L): 38

Taper dimensions:

Dimensiones-taper

  • Size: 1615.
  • Available diameters: 18,19,20,21,22,24,25,28,30,32,35,38,40 and 42.
  • Tightening torque: 19.6
  • D1: 57 mm.
  • Type: A.
  • S: 38.1



Material for professional use, install in compliance with the regulations in force at the place of installation.
