Triple sprockets Z19 taper lock T3030 1 x 17.02 16B-3 ISO 606

€232.83 Tax included

€192.42 tax excl.

Double sprockets for taper lock of bushing 3030 of roller chain 16B-3 according to European standard DIN ISO 606

Reference: PINHON Z19 1 TRIPLE-T3030

Teeth: 19

ISO: 16B-3

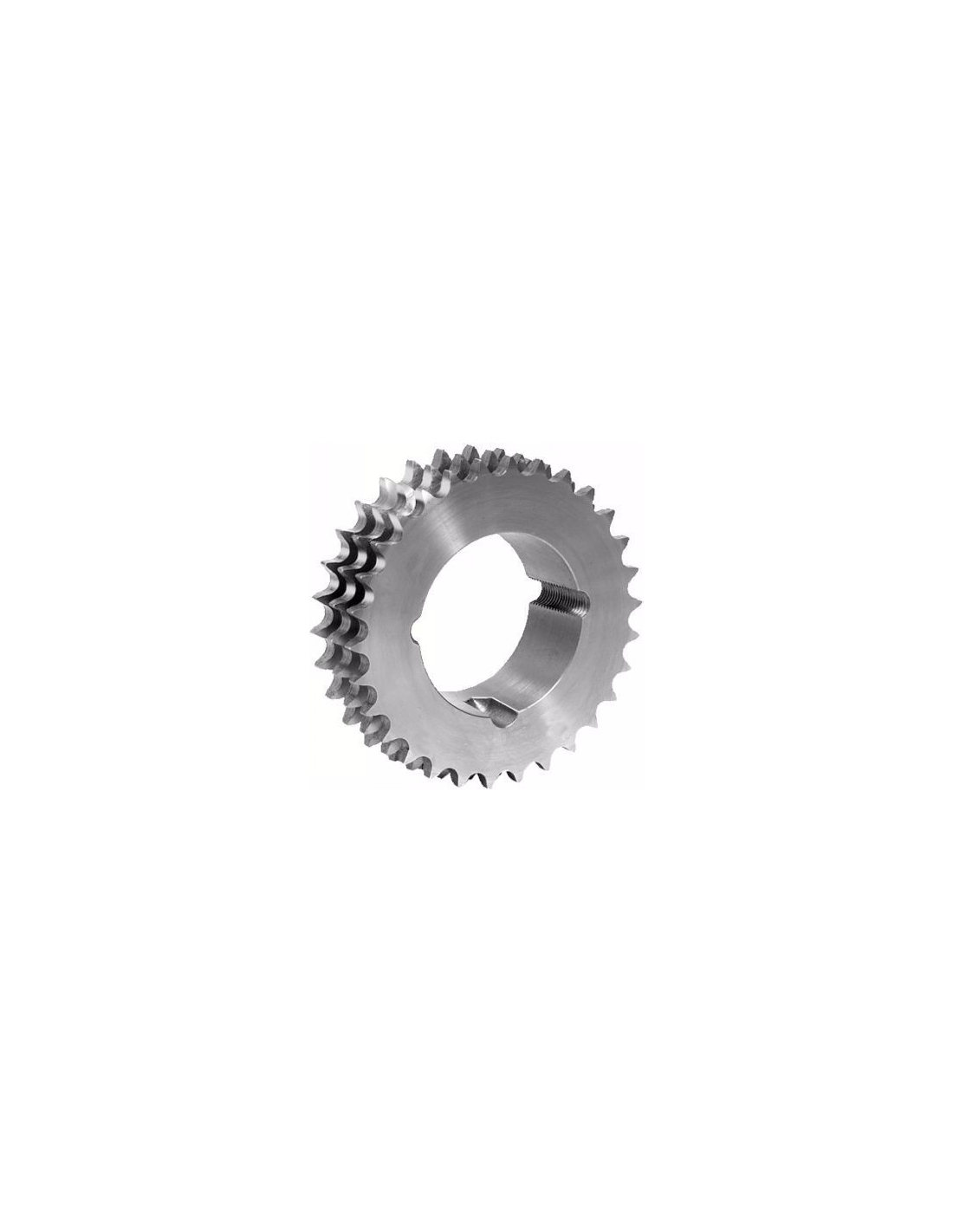

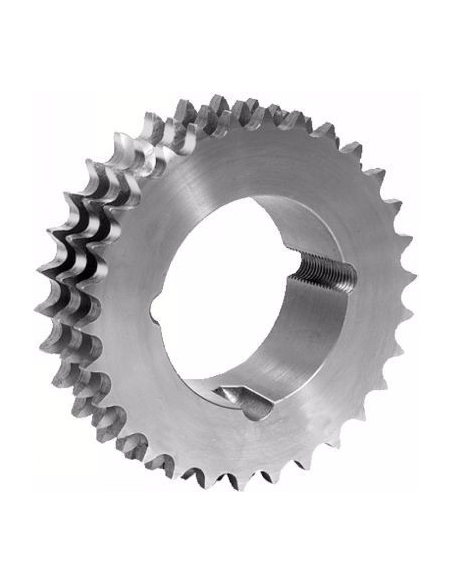

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Triple sprockets for taper lock of roller chain cap 3030 16B-3 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z19 1 TRIPLE-T30308


characteristics:

  • 1" x 17.02 mm ISO 16B-3
  • 25.4 x 17.02 mm
  • Teeth: 19
  • Taper Lock Cap: 3030
  • Outside diameter (De): 155.2
  • Primitive diameter (Dp): 154.33
  • Width (H): 79.6


Material for professional use, install respecting the regulations in force at the place of installation.
