Pack

SPZ 75x1 v-belt Pulley with T1108 taper - ADAJUSA

Polea correa trapecial 118mm 5 ranura para eje...

Polea correa trapecial 118mm 5 ranura para eje diámetro 24mm tipo SPASPA

€91.08 Tax included

€75.27 tax excl.

Pulley for V-belts Ø118mm, from 5 slot, with taper lock with 24mm shaft diameter and keyway. Valid for all V-belts with "V" profile type A and SPA. Manufactured according to ISO4183 - DIN2211

Type of belts: "V" profile type A and SPA
Pulley diameter (Dp): 118 mm
Number of slots for belts: 5
Taper: center shaft diameter of 24mm with 8mm key

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

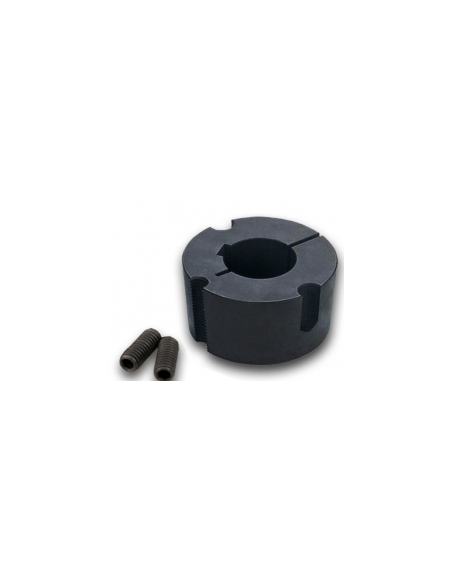

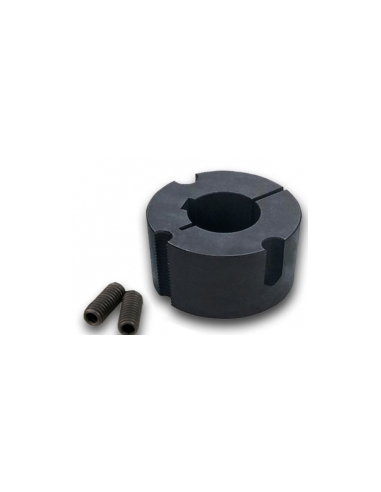

Conical bushing - taper lock size 2012 Shaft diameter-24 mm

€20.03

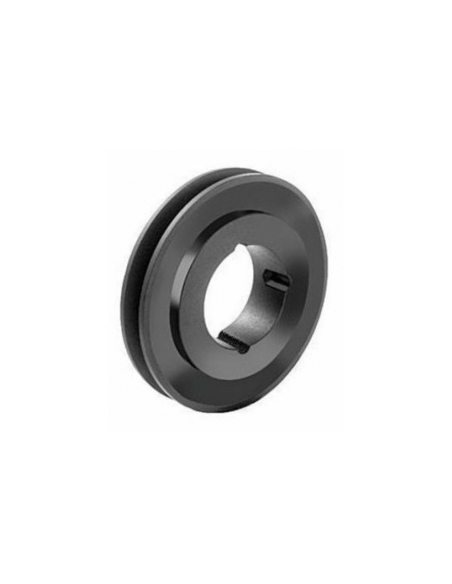

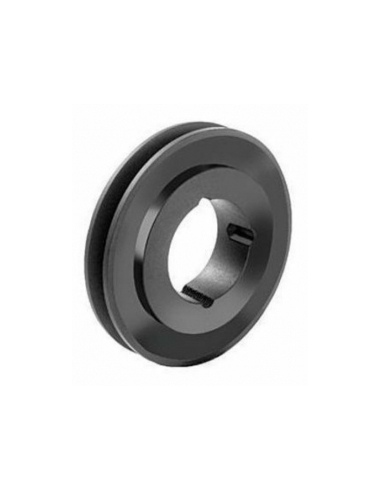

Pulley V-belt SPA 118x5 slots taper T2012

€71.05

No queries yet, leave the first!

Privacy

Shipments

Returns

Pulley for "V" profile V-belts, for mechanical transmission. Manufactured in cast iron and steel, and according to DIN2211 - ISO4183 standard.

Machined V-belt pulley with tapered bush "Taper Lock", with bore and keyway already machined to 28mm diameter and with 8mm keyway, with all set screws and bolts, manufactured in machined iron GG25.

Pulley dimensions:

(Dp): 118mm
(Od): 123,5mm
(F): 80mm
(J): 84mm
(L): 32mm
(M): 48mm

Shaft and keyway dimensions:

Dimensiones de taladro para chaveteres adajusa

Shaft diameter: 24mm
Keyway (b): 8mm
Dimension t: 31.8mm

Note: The reference of the taper and the pulley supplied may vary, always adjusting to the dimensions requested.

Material for professional use, install in compliance with the regulations in force at the place of installation.
