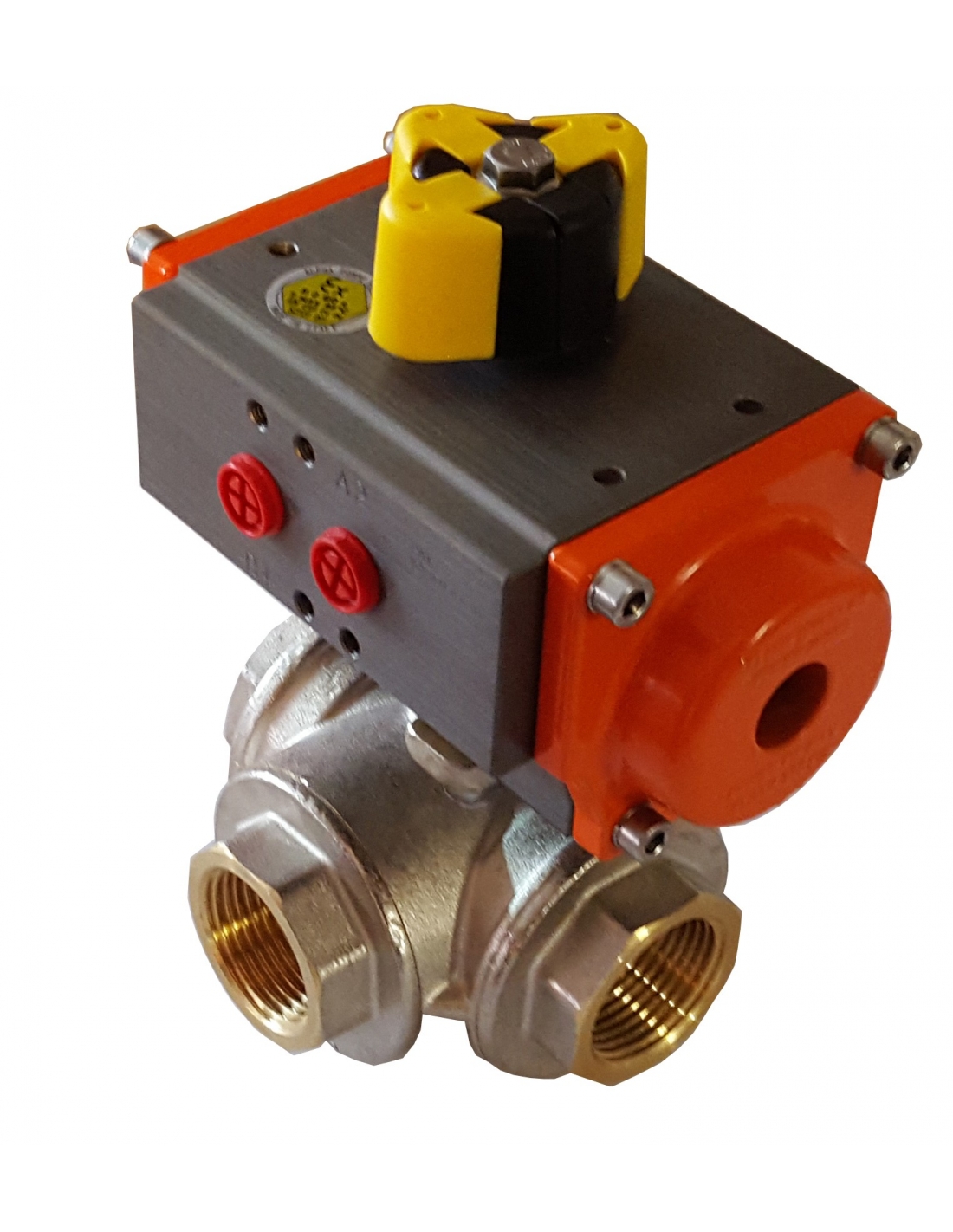

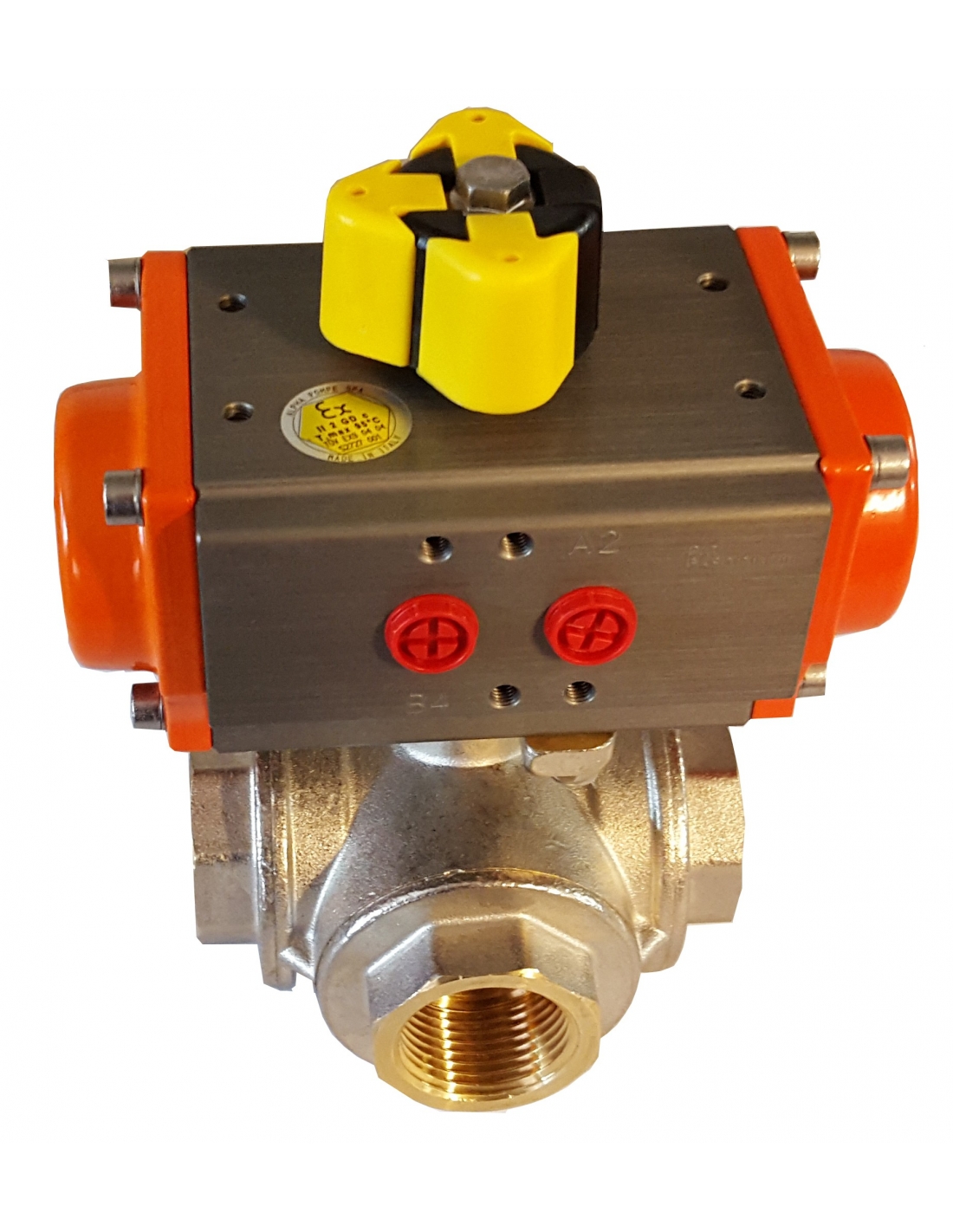

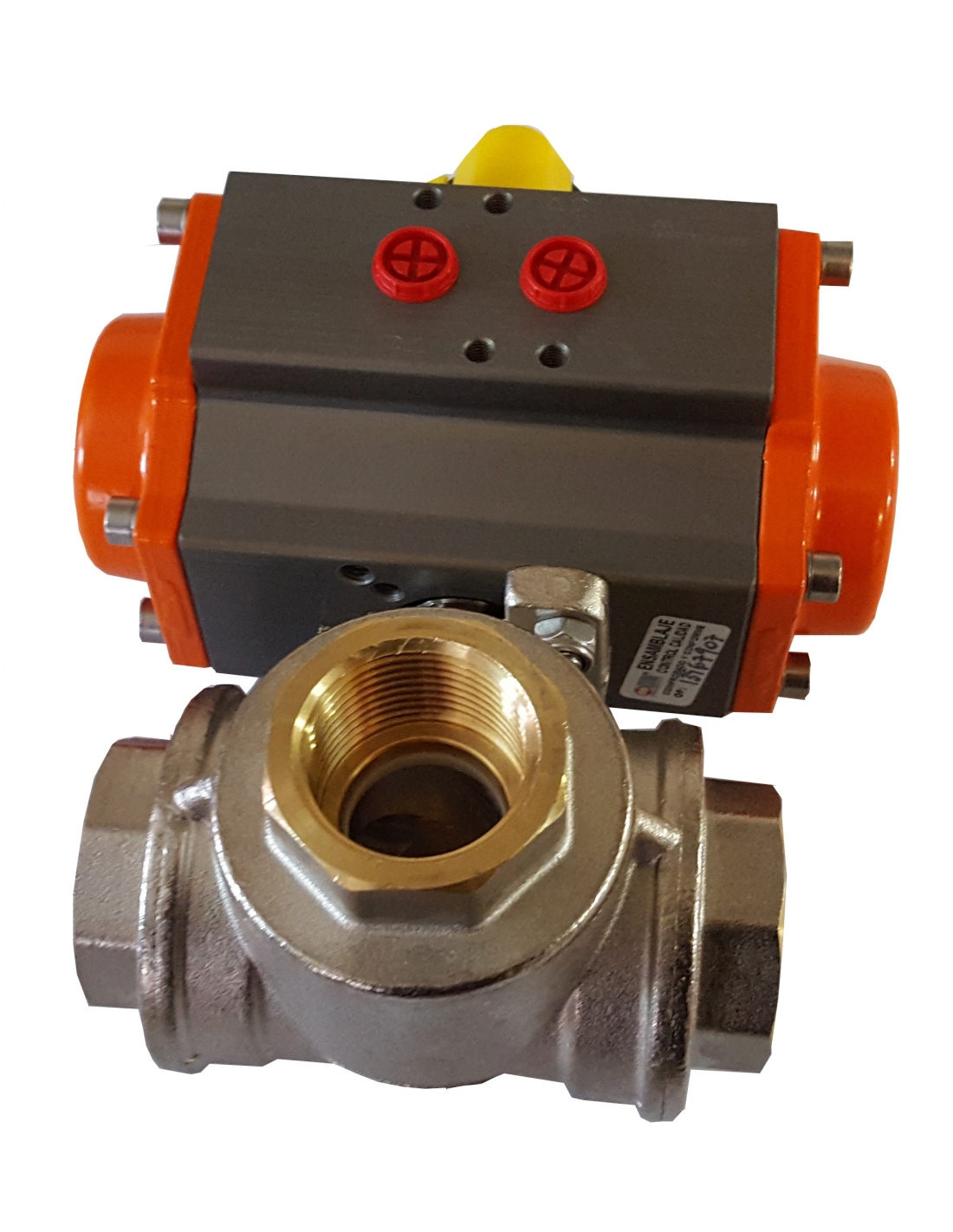

T-stainless steel valve 3/8 3/2-way with pneumatic rotary actuator

Name: T-stainless steel valve 3/8 3/2-way with pneumatic rotary actuator
Brand: Metal Work
SKU: VB3T2IA010032
Price: 235.3014 EUR
Availability: PreOrder

€235.30 Tax included

€192.87 tax excl.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3T2IA010032D

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Valve of 3/8" of sphere, 3 ways 2 positions, 3/2, made of stainless steel, with configuration and valve in "T", with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "T", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed between all the tracks.

Valves with ATEX certification.

Diagrama válvula en T de 3 Vías

Specifications:

Assembly Manufacturer: Metal Work
Manufacturer reference: VB3T2IA010032D
Actuator type: Ø32 double pneumatic effect.
Valve type: 3 ways 2 positions (3/2).
Valve configuration: in "T".
Thread Type: G 3/8" Female
Valve body: AISI 316 stainless steel
Dial: Stainless steel AISI 316
Joints: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvulas con actuador neumático de 3 vías

Esquema montaje válvula 3 vías en L con actuador

Material for professional use, install in compliance with the regulations in force at the place of installation.
