Distributor 2 outputs female input 1/2 - Aignep
Distributor 2 outputs female input 1/2 - Aignep

Distributor 2 outputs female input 1/2 - Aignep

€20.11 Tax included

€16.48 tax excl.

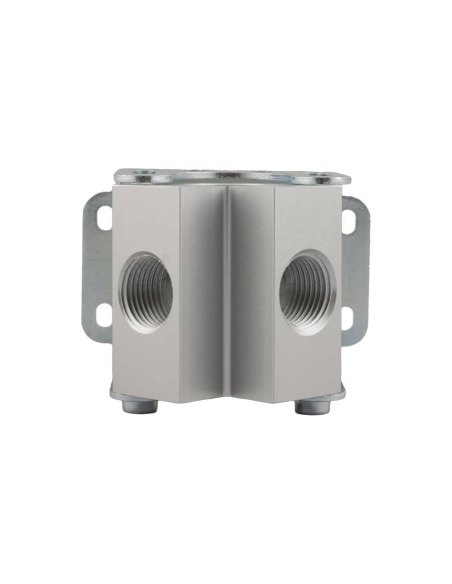

Distributor with two outlets for wall mounting, with inlet and outlets both with 1/2 cylindrical female thread. This wall socket allows you to install, in a simple and safe way, in the downpipes of a distribution network, the necessary accessories for the connection of machinery or pneumatic tools required to facilitate the efficient distribution of compressed air in the facilities.


Reference: 90642 1/2 1/2 2



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Wall socket or wall support with two outlets with 1/2 cylindrical female thread and 1/2 cylindrical female thread inlet. This wall socket allows you to install, in a simple and safe way in the downpipes of a distribution network, the necessary accessories for the simultaneous connection of pneumatic tools required for the operation and equipment of the installation, such as air treatment units, pipe or pneumatic hose for the use of compressed air, etc...







Characteristics:

  • Manufacturer: Aignep
  • Reference: 90642 1/2 1/2 2
  • Series: Infinity
  • Number of distributor outputs: 2
  • Inlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
  • Outlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
  • Material: Nickel-plated brass
  • Application: Compressed air, vacuum, inert gas (nitrogen, argon)
  • Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
  • Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
  • All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)
















Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Polyamide distributor 2... Polyamide distributor 2... 2
wall sockets

Polyamide distributor 2 outlets 1/2 female input with condensate drain - Sicomat

Sicomat
RP241012002SC
€15.58 (€12.77 tax excl.)
Distributor with two outlets for wall mounting, with 1/2 cylindrical female thread inlet and outlets. This wall outlet can be installed, simply and safely, in the downpipes of a distribution network by allowing manual drainage or draining of condensate. Made of high resistance polyamide. Reference: RP241.012.002SC Representative image for illustrative...
Polyamide distributor 2... Polyamide distributor 2... 2
wall sockets

Polyamide distributor 2 outlets 3/4 female input with condensate drain - Sicomat

Sicomat
RP241034002SC
€17.10 (€14.02 tax excl.)
Distributor with two outlets for wall mounting, with 3/4 cylindrical female thread inlet and 1/2 cylindrical female thread outlets. This wall outlet can be installed, simply and safely, in the downpipes of a distribution network by allowing manual drainage or draining of condensate. Made of high resistance polyamide. Reference: RP241.034.002SC...
Female elbow fitting 1/2...
Elbow fittings for compressed air installations

Female elbow fitting 1/2 20mm tube with fixing - Aignep

Aignep
906002012
€12.08 (€9.90 tax excl.)
"L" Elbow union with support for wall fixing, with 1/2 cylindrical female thread for 20mm outer diameter tube, body and nut made of nickel-plated brass. Fitting for 90º elbow joints, automatic or "Push In" type for quick and easy assembly in compressed air, vacuum and inert gas networks and installations.Reference: 90600 20 1/2 Representative image for...
Polyamide and aluminum... Polyamide and aluminum... 2
wall sockets

Polyamide and aluminum distributor 1 outlet 3/4 female inlet with condensate drain -...

Sicomat
R241034001SC
€25.08 (€20.56 tax excl.)
Single outlet distributor for wall mounting, with 3/4 cylindrical female thread inlet and 1/2 cylindrical female thread outlet. This wall outlet can be installed, simply and safely, in the downpipes of a distribution network by allowing manual drainage or draining of condensate. Made of aluminum and high resistance polyamide. Reference: R241.034.001SC...
Female elbow fitting 1 tube...
Elbow fittings for compressed air installations

Female elbow fitting 1 tube 32mm with fixing - Aignep

Aignep
90600321
€22.05 (€18.07 tax excl.)
"L" Elbow union with support for wall fixing, with 1 cylindrical female thread for 32mm outer diameter tube, body and nut made of nickel-plated brass. Fitting for 90º elbow joints, automatic or "Push In" type for quick and easy assembly in compressed air, vacuum and inert gas networks and installations. Reference: 90600 32 1 Representative image for...
2 outlet distributor with... 2 outlet distributor with... 2
  • Pack
wall sockets

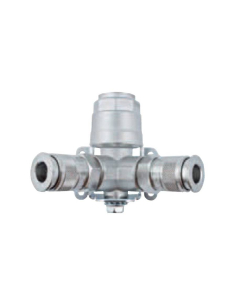

2 outlet distributor with quick connectors 20mm tube entry - Aignep

Aignep
PK90602E202
€35.64 (€29.21 tax excl.)
Distributor with two outlets for wall mounting, with inlet for 20mm outer diameter tube and 1/2 female thread outlets with universal profile quick connectors. This wall socket allows you to install and orient, in a simple and safe way, in the downpipes of a distribution network, the accessories necessary for the connection of machinery or pneumatic tools...
Polyamide and aluminum... Polyamide and aluminum... 2
wall sockets

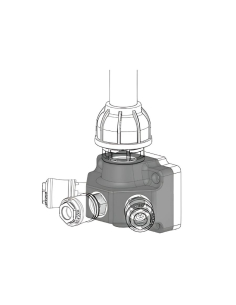

Polyamide and aluminum distributor 3 outputs 3/4 female input - Sicomat

Sicomat
R241.034.003
€31.04 (€25.44 tax excl.)
Distributor with three outlets for wall mounting, with 3/4 cylindrical female thread inlet and 1/2 cylindrical female thread outlets. It allows you to install, in a simple and safe way in the downpipes of a distribution network, the necessary accessories for connecting pneumatic tools required to facilitate the efficient distribution of compressed air in...
2 outlet distributor with... 2 outlet distributor with... 2
  • Pack
wall sockets

2 outlet distributor with quick couplings and 25mm tube cutting valve - Aignep

Aignep
PK90642VE252
€70.74 (€57.98 tax excl.)
Distributor with two outlets for wall mounting, inlet with shut-off valve for 25mm outer diameter tube and 1/2 female thread outlets with universal profile quick connectors. This wall socket allows you to install, in a simple and safe way, in the downpipes of a distribution network, the necessary accessories for connecting machinery or pneumatic tools...
Polyamide and aluminum... Polyamide and aluminum... 2
wall sockets

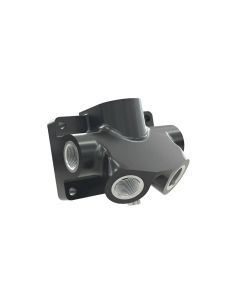

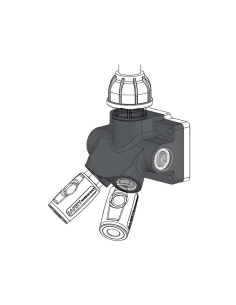

Polyamide and aluminum distributor 4 outputs female input 1/2 - Sicomat
