Valve solenoid coil 24Vcc T22 diameter 9 - Mindman
Valve solenoid coil 24Vcc T22 diameter 9 - Mindman

Valve solenoid coil 24Vcc T22 diameter 9 - Mindman

€7.25 Tax included

€5.99 tax excl.

Coil for electrovalve size 22mm, voltage 24Vcc., with a consumption of 2.6W, for cores of Ø9mm.

Valid for electrovalves with 9mm actuator core.

Reference: 243MAGNET0550024002

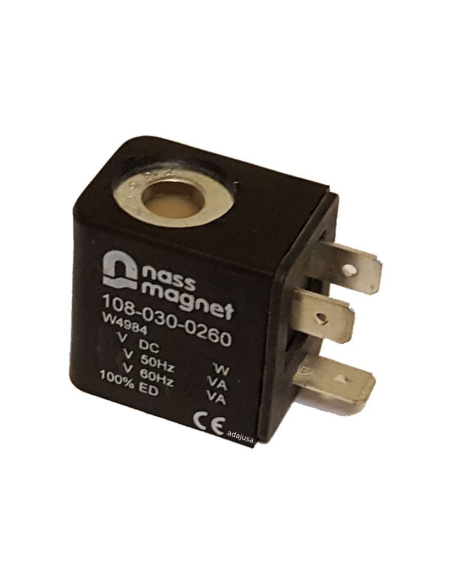

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Coil size 22mm for voltage of 24Vdc with a power of 2.6W, suitable for solenoid valves with an actuator core diameter of 9mm.

Suitable for solenoid valves manufactured by: Mindman

specifications:

  • Brand: Mindman.
  • Reference: 243MAGNET0550024002
  • Rated voltage: 24Vdc.
  • Voltage tolerance: ±10%.
  • Nominal power: 2.6W.
  • Core diameter: 9mm.
  • Insulation type: F.
  • Degree of progection: IP65.
  • Temperature: -20oC to 50oC.

Dimensiones bobinas electroválvulas Mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.
