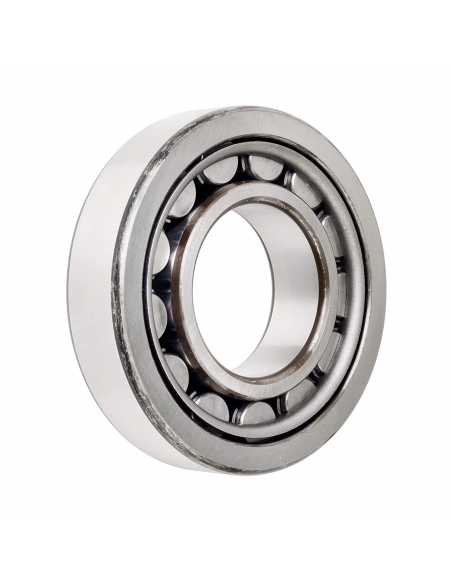

Single row cylindrical roller bearings NJ-304 20x52x15mm - ISB

€13.08 Tax included

€10.81 tax excl.

Single row cylindrical roller bearings NJ-304 dimensions 20x52x15mm. NJ bearing, with an outer ring with two integral flanges, while the inner ring has only one.

Reference: NJ-304

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Single row cylindrical roller bearings NJ-304 with dimensions according to ISO 15:1998 and tolerance according to ISO 492:2002.

The rollers and the respective cage can be guided by the inner or outer ring. The roller guide ring has flanges, the second ring has no flanges and is removable. The outer ring has two integral flanges, while the inner ring has only one.

The shaft is axially linked in one direction. The axial displacement of the shaft with respect to the housing, caused by thermal expansion, is compensated by the bearings.

Dimensions: Ø20xØ52x15mm .

For other references or measures consult.

Characteristics:

  • Material: hardened steel.
  • Dimension d: 20mm.
  • Dimension D: 52mm.
  • Dimension B: 15mm.
  • Load coefficient (KN) dynamic C: 35
  • Dynamic load coefficient (KN) C 0 : 25

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
