Connection dispatcher 2 poles isolated 15 outputs 125a

Connection dispatcher 2 poles isolated 15 outputs 125a

€9.73 Tax included

€8.04 tax excl.

Electric connection dispatcher of 2 poles of 15 outputs, suitable for intensities up to 125a at 40ºC, brass distribution bars with steel screws fixed in polyamide support and protected with polycarbonate cover. Fixing on panel or din-rail.

Reference: CSB 215

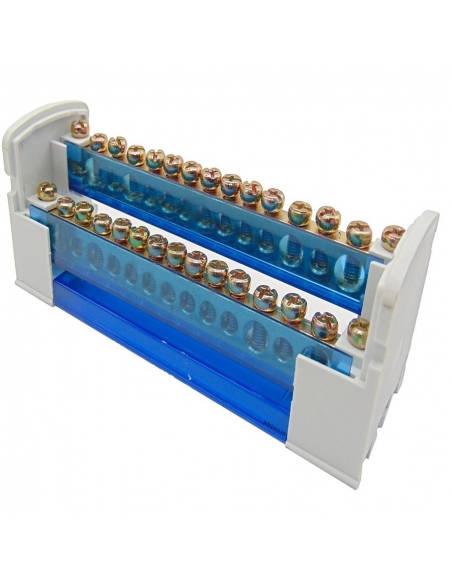

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Electrical connection dispatcher 2 poles insulated, of 15 outputs, for use in electrical distribution cabinets and control panels favoring the wiring and improving the distribution of the electrical load and the connection.

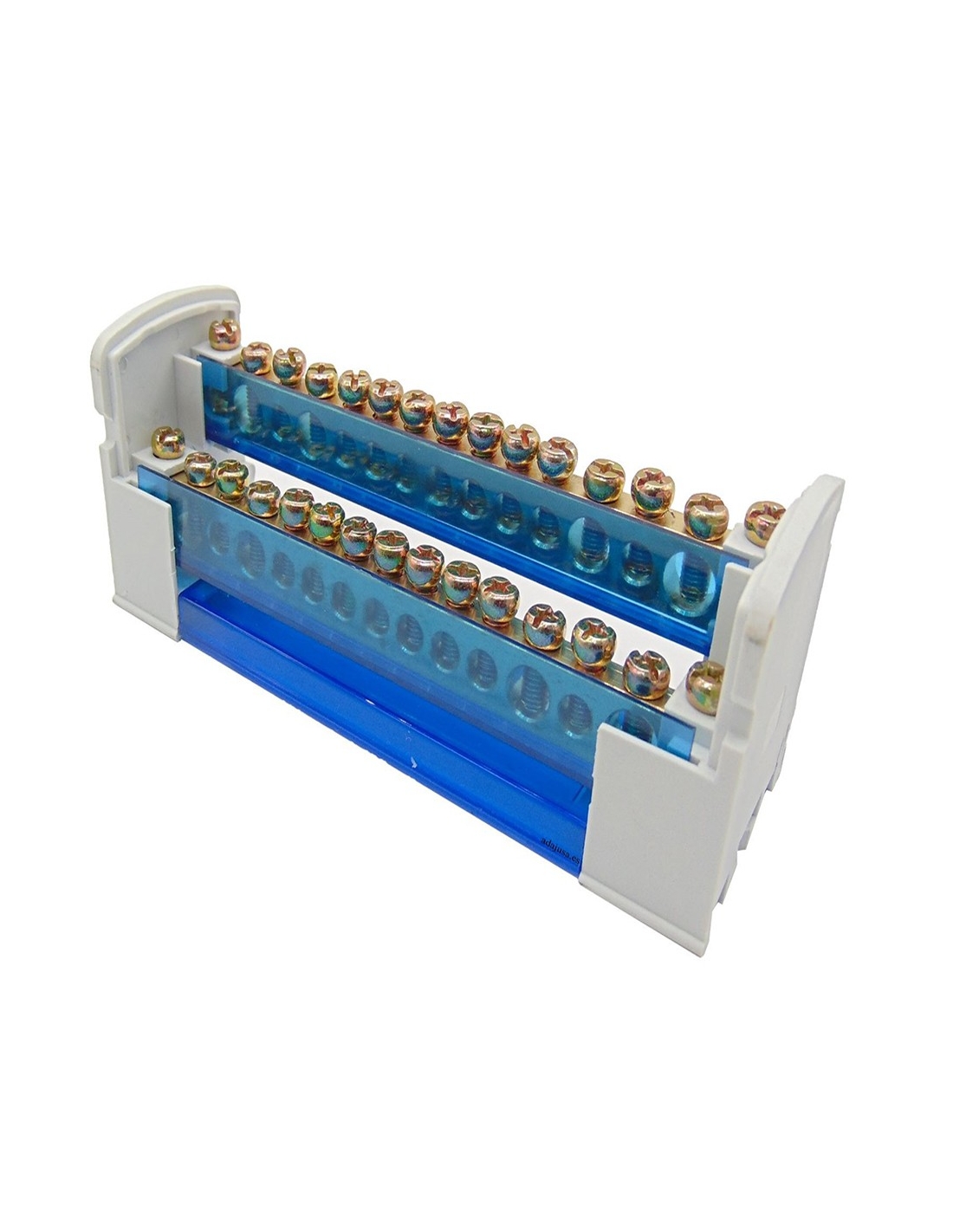

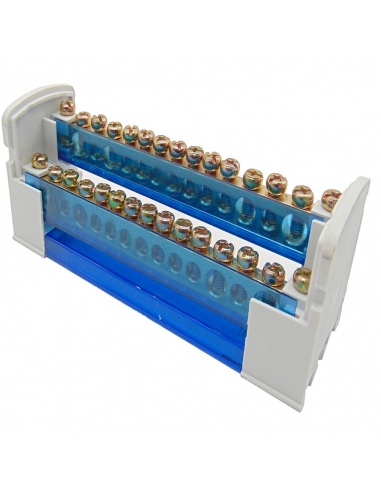

It has 2 brass distribution bars with steel screws. Distributed in 2 heights and several orientations to facilitate the connection.

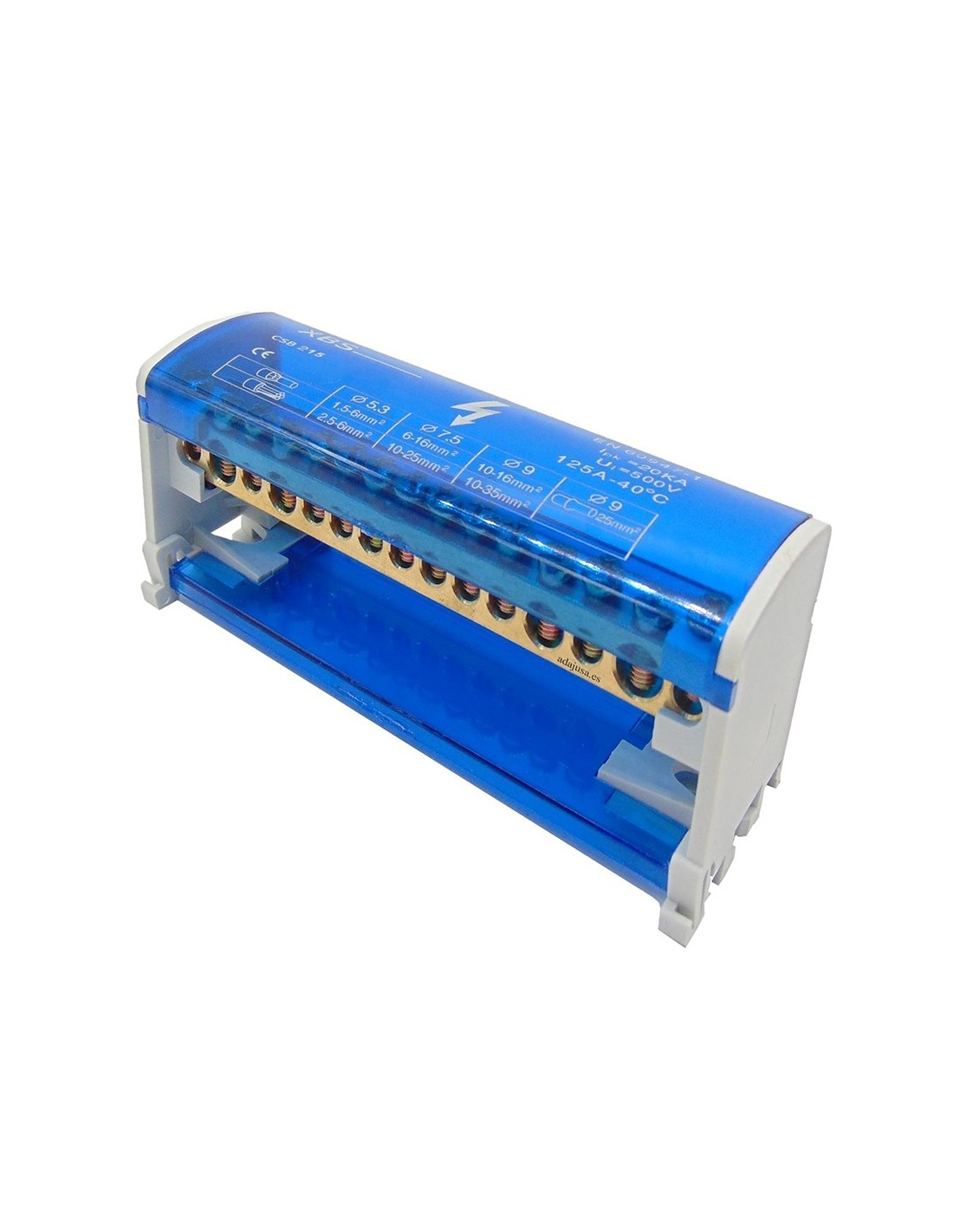

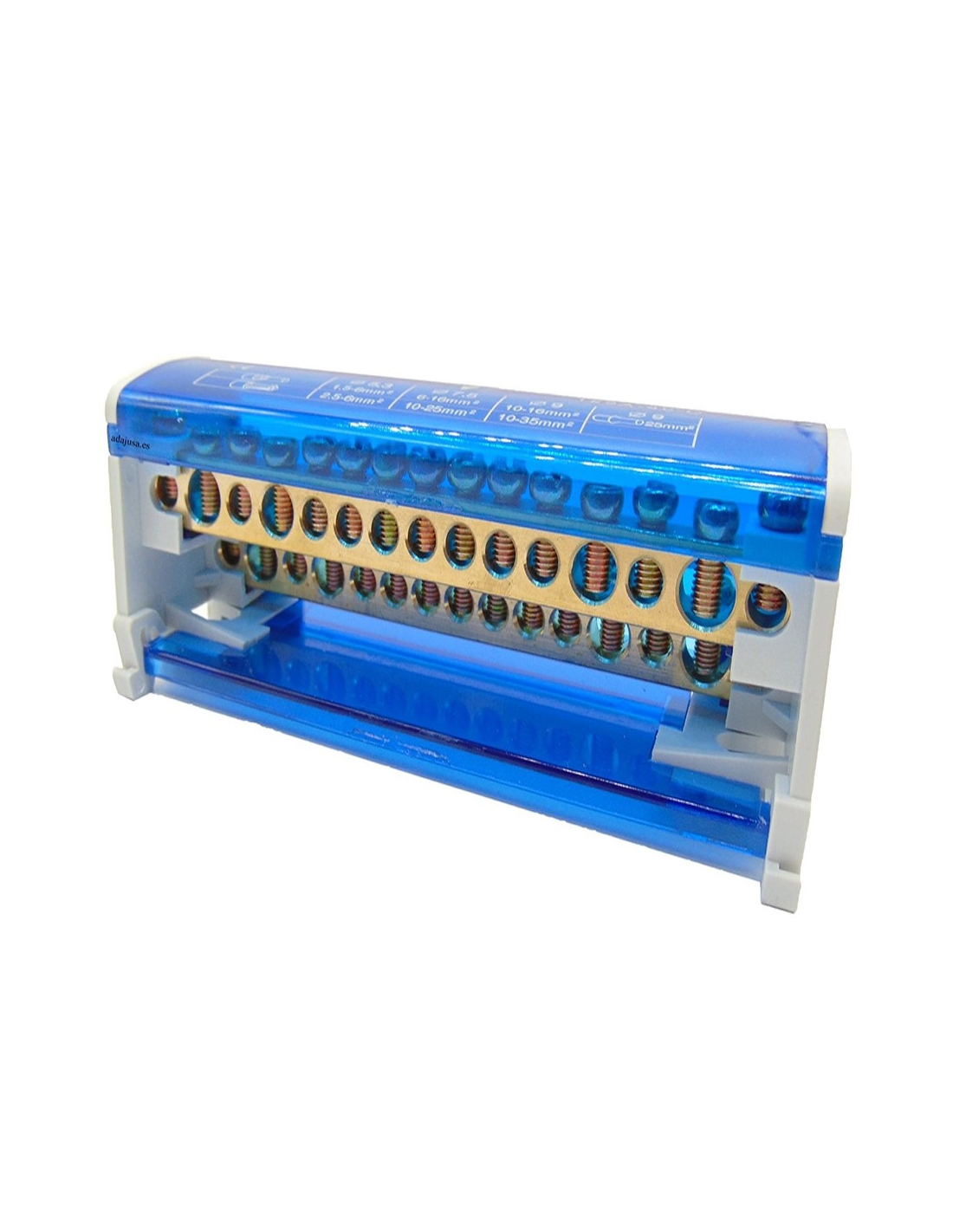

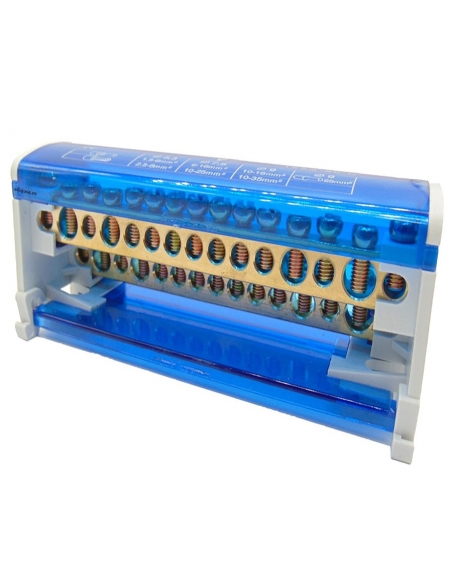

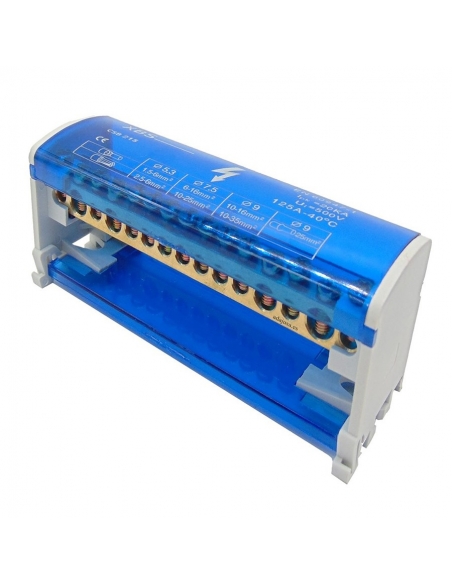

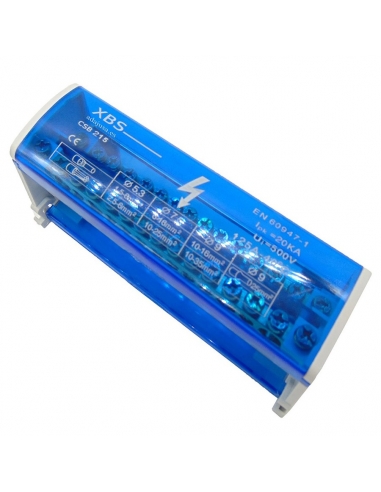

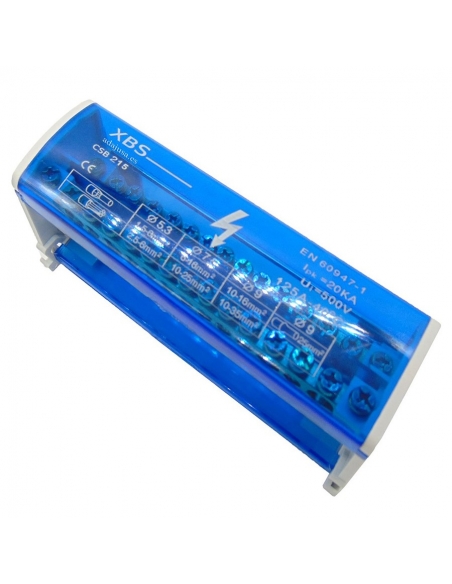

Attachment to the mounting panel by screws or by din-rail. The distributor is protected with a transparent polycarbonate cap.

The connection bar has 15 outputs:

  • 11 of Ø5.3mm for cables 1.5mm² to 6mm².
  • 2 of Ø7.5mm for cables 6mm² to 16mm².
  • 2 from Ø9 mm for cables 10mm² to 25mm²

specifications:

  • Manufacturer/Supplier: XBS/Mixvill
  • Manufacturer reference: CSB 215
  • Type: bipolar (2P)
  • Rated voltage:500Vac
  • Maximum intensity: 125a
  • Icc: 18KA
  • Number of holes: 15
  • Regulations: EC, EN60947-1
  • Protection: Transparent lid in polycarbonate
  • Dimensions : Width x Height x Depth : 132x51x45mm.


Material for professional use, install respecting the regulations in force at the place of installation.
