Limit switch 1/8 5/2 strut pneumatic - monostable with spring-return - Aignep

Name: Limit switch 1/8 5/2 strut pneumatic - monostable with spring-return - Aignep
Brand: Aignep
SKU: 03VG050002
Price: 26.7894 EUR
Availability: InStock

€26.79 Tax included

€22.14 tax excl.

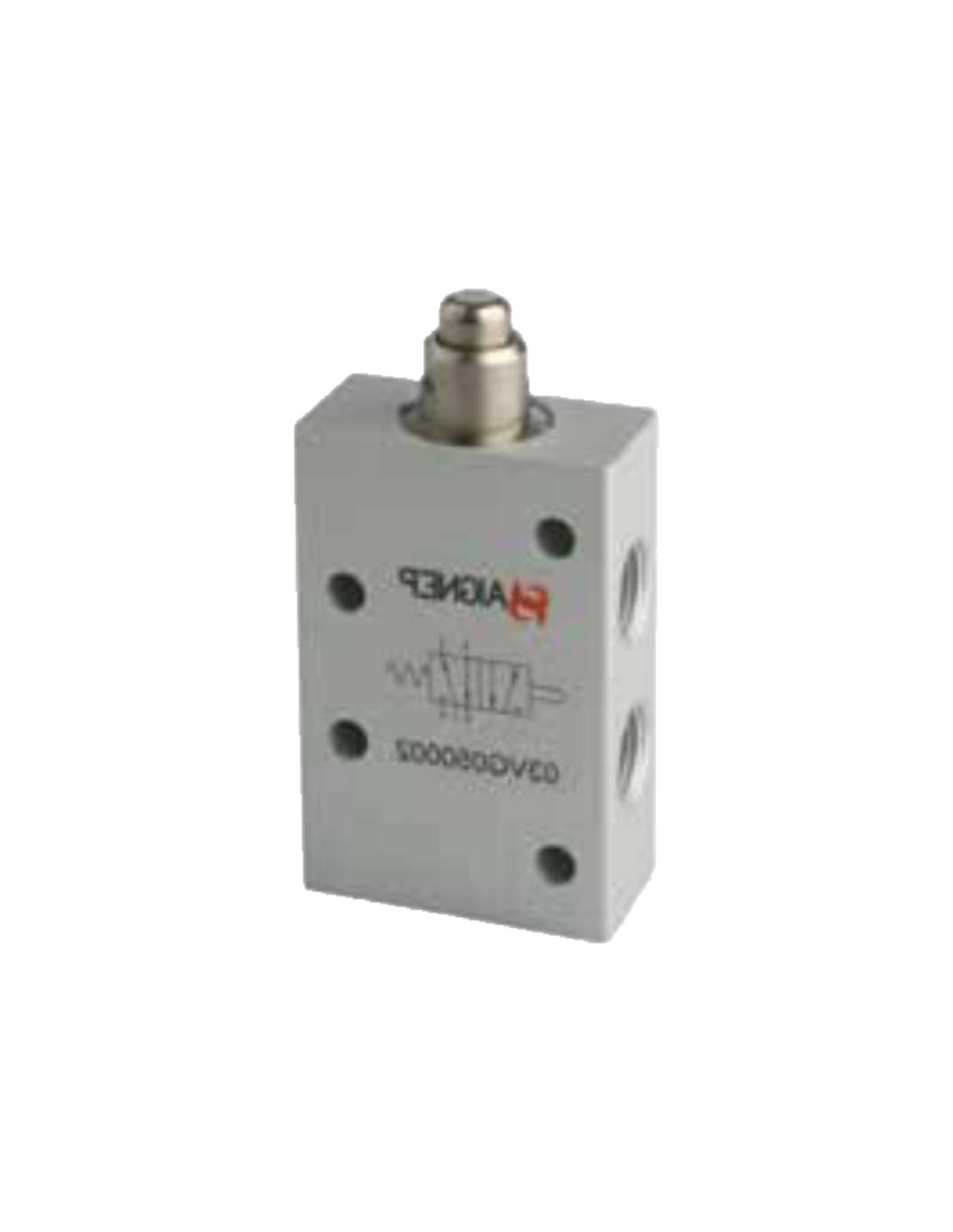

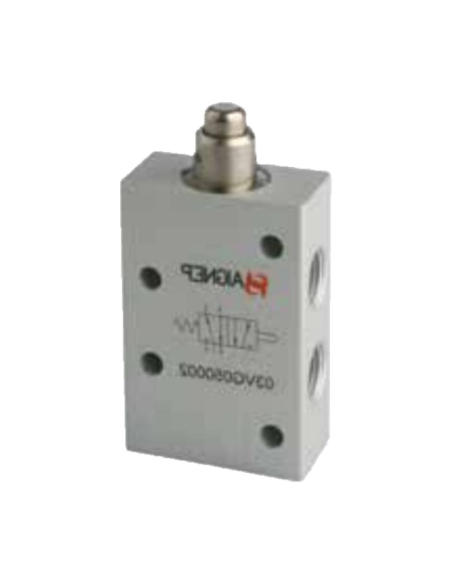

Limit switch pneumatic of 1/8 5 way and 2 positions, for mounting with emergency push button or similar. Actuated by spring return mechanical strut.

Series: 03V
Reference: 03VG050002

Logotipo Aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Limit switch pneumatic 1/8 5 way and 2 positions, monostable, actuated by spring return mechanical strut. Limit switch connections are by 1/8" thread (fittings located on the side of the valve).

Manufacturer: Aignep

Part number: 03VG050002
Valve body: anodized aluminum
Spring material: stainless steel
Seals: NBR
Actuating force: 39,2 N
Operating pressure: 2 ÷ 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 350

03vg050002

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Cátalogo serie 03V AIGNEP

Download (4.14MB)
