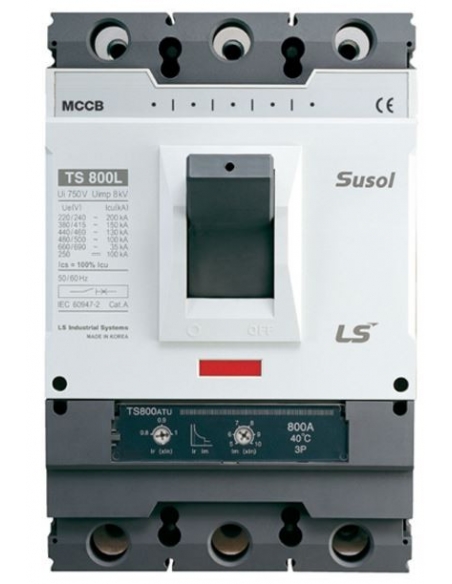

Automatic switch 3 pole 100A three-pole molded box
Automatic switch 3x250A Reg three-pole molded box.
Automatic switch 3x250A Reg three-pole molded box.
Automatic switch 3 pole 100A three-pole molded box
Automatic switch 3x250A Reg three-pole molded box.
Automatic switch 3x250A Reg three-pole molded box.

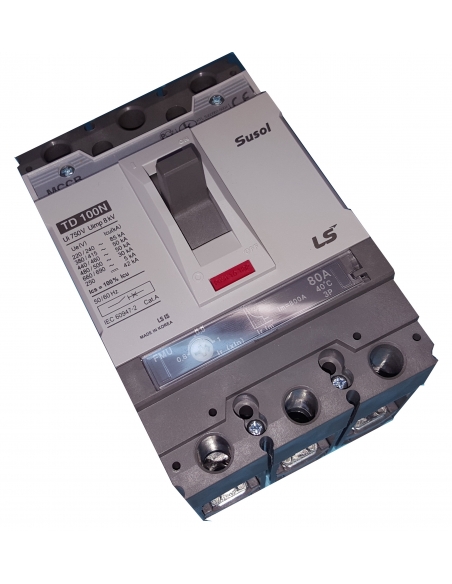

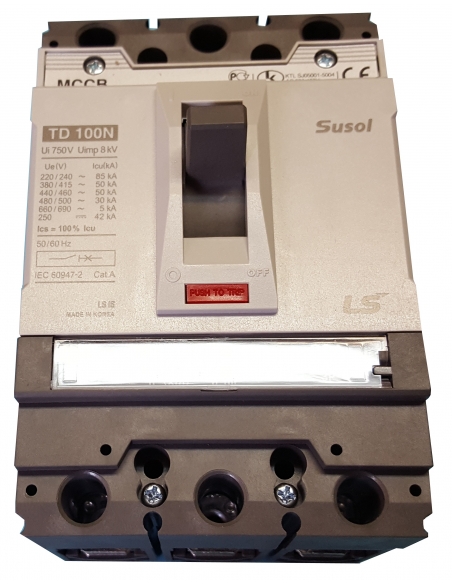

Automatic switch molded box three-pole 3x250A Thermal Reg. - LS

€595.56 Tax included

€492.20 tax excl.

Automatic switch in three-phase molded box 3 poles of 250A nominal intensity, with thermal regulation firing threshold between 200 to 250A and fixed magnetic threshold. 50kA cutting power and high electrical and mechanical life.

Reference: TS250N-FMU250-250A-3P

Logotipo marca LS LG

No queries yet, leave the first!
Privacy
Shipments
Returns


Automatic switch in three-phase molded box 3 poles of 250A rated intensity, for protections of electrical installations and machinery. With adjustable thermal firing threshold and fixed magnetic threshold. High cutting power and high electrical and mechanical life.

Technical details:

  • Manufacturer: LS (LG Industrial Systems)
  • Product Reference: TS250N-FMU250-250A-3P
  • Calibre (In): 250A
  • Number of poles: 3
  • Nominal voltage (Ue): 230-690V
  • Cutting power (Icu): 50kA to 400Vac
  • Short-circuit cutting power (Icm): 105kA to 400Vac
  • Thermal regulation: 0.8-1 of the nominal intensity
  • Mounting: fixed front connection
  • Dimensions: 105x160x86 mm
  • Weight: 2.6Kg
  • Regulations: IEC60947-2

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

16 other products in the same category:

Three-pole molded case circuit breaker 3x40A electronic regulation Adajusa
Automatic switches in molded box

Three-pole molded case circuit breaker 3x40A electronic regulation - LS

LS Electric
ETS23-40A-3P
€376.47 (€311.13 tax excl.)
Automatic switch in molded case with standard electronic control, three-phase 3 poles 40A nominal current . Breaking power 50kA. Thermal regulation between 16-40A, magnetic regulation between 1.5-10xIn and trip delay between 0.05-0.3 seconds. Compact design, high electrical and mechanical life. Reference: TS160N-ETS23-40A-3P Representative image for...
Automatic switch molded box 4 poles 4x160A differential protection - Hyundai
Automatic switches in molded box

Automatic switch molded box 4 poles 4x100A differential protection - Hyundai Electric

Hyundai Electric
HGE100-4P100
€317.81 (€262.65 tax excl.)
Automatic switch in three-phase molded box 4 poles of 100A rated intensity, with integrated differential protection. 50kA cutting power and high electrical and mechanical life. Neutral situation on the right side. Adjustable sensitivity and delay time for CLASS AC differential protection. Reference: HGE100-L4P100

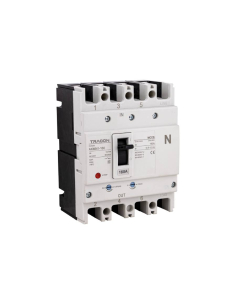

Four-pole molded case circuit breaker 4x160A electronic regulation Adajusa
