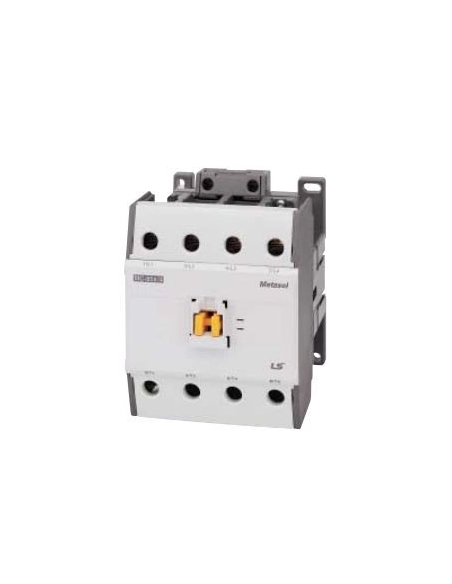

Tetrapolar contactor 110A coil 230Vac - LS

€166.92 Tax included

€137.95 tax excl.

Tetrapolar contactor equipped with high capacity contacts for control of electrical systems, generator sets, or general uses, 4 poles with a current capacity of 110A in AC1 or 75A in AC3, with 230Vac coil.

Maximum power AC1 (400Vac): 76kW.

Reference: MC-75a/4 AC230V 50/60HZ

Esquema eléctrico contactor 4 polos

Logotipo LS LG industrial Systems

No queries yet, leave the first!


110A tetrapolar contactor (4 poles) in AC1 category or 75A in AC3 category, the contactor is equipped with high robust main contacts, suitable for demanding applications for control of electrical systems, electrogen groups and general use. The contactor can be fastened by screws or by DIN rail.

Technical details:

  • Manufacturer: LS (LG Industrial Systems).
  • Contactor Reference: MC-75a/4 AC230V 50/60Hz.
  • Maximum operating voltage: 690Vac.
  • Coil voltage: 230Vac.
  • Number of contactor poles: 4.
  • Assigned current for contactor in AC3: 75A.
  • Assigned current for contactor in AC1: 110A.
  • Maximum power (kW) 380-400Vac: 76kW.
  • Maximum power (kW) 220-230Vac: 41kW.
  • Maximum peak voltage (Uimp): 6kV.
  • Maximum number of operations per hour: 1800.
  • Mechanical durability: 12,000,000 cycles.
  • Electrical durability: 1,000,000 cycles.
  • Weight: 1.2 Kg.
  • Dimensions: 91x123.5x117.8 mm.
