€15.25 Tax included

€12.60 tax excl.

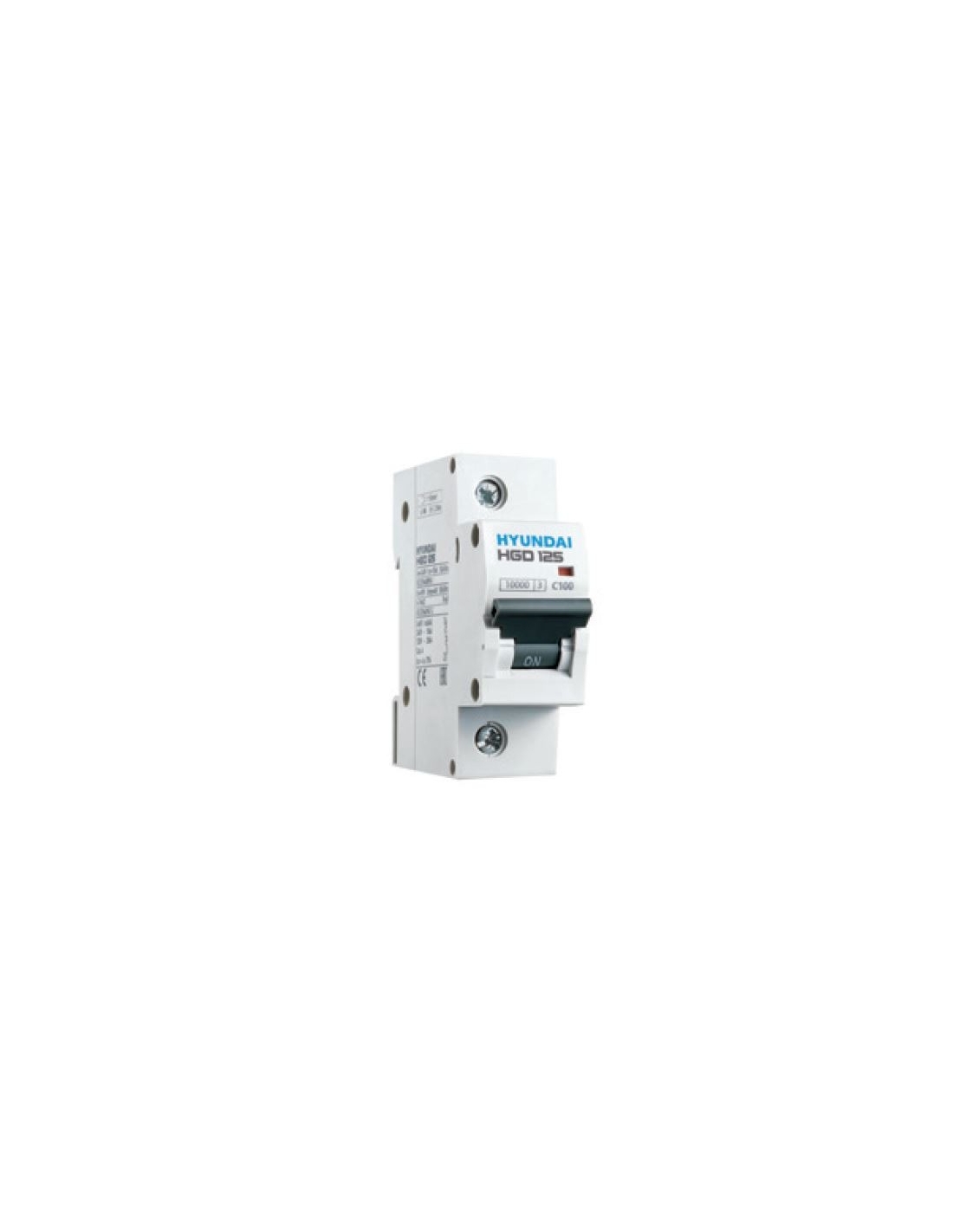

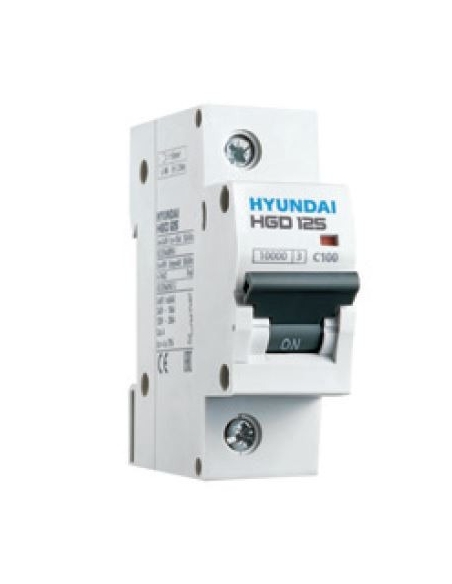

MCB circuit breaker 1 pole 100A curve C, for protection against short circuits and overloads. Hyundai brand. With a cutting power assigned according to IEC/EN60898 of 10000A (10kA), active protection of the poles with individual status indication of each of the poles.

Reference: HGD100S-1P100C.

Esquema electrico magnetotérmico 1 polo

No queries yet, leave the first!


MCB circuit breaker 1 pole 100A 10kA curve "C", for protection against short circuits and overloads. With an assigned cutting power of 10kA, active protection of the poles with status indication. Made of fireproof thermoplastic material. Manufactured according to reference regulations IEC/EN60947-2.

As main features of this product range we can review:

  • Accurate shooting lever performance.
  • Easy removal of DIN rail.
  • 13 plates in the extinguishing chamber for effective arc cooling.
  • Free firing mechanism. The switch fires even if maintenance is forced in the on position (ON).
  • Visual status indication, Red-ON, Green-OFF.
  • Supports mounting a large number of accessories.

Main features of MCB circuit breaker:

  • Manufacturer/Supplier: Hyundai Electric.
  • Manufacturer's Reference: HGD100S-1P100C.
  • Nominal MCB circuit breaker intensity (In): 100A.
  • Number of poles: 1 (1x100A).
  • Step: 1 and a half modules.
  • Cutting power (Icn): 10000A (10kA) (Ics-75% icn).
  • Maximum operating voltage (Eu): 240/415Vac, 50/60Hz.
  • Characteristic curve: C.
  • Assigned insulation voltage (Ui): 690Vac.
  • Rated pulse resistance voltage (Uimp): 4 KV.
  • Dielectric resistance: 2.5kV.
  • Protection: IP20.
  • Enduring: ≥10000/20000.
  • Operating temperature: -5oC... +55oC.
  • Humidity: 95% RH.
  • Energy limitation class: Class 3.
  • Regulations: EC; IEC60947-2 industrial application (type H), IEC60898-1 residential application.
  • Terminal type: Screw tightening jaw.
  • Maximum terminal capacity: 50mm2.
  • Maximum tightening torque: 2.5 Nm.
  • Weight: 0.150 Kg.
  • Dimensions (mm): 81x74.5x26.5.
  • Mounting position: Vertical/Horizontal.
  • Housing and cover material: Ignifugo molded thermoplastic.
  • Supports mounting of auxiliary elements: SI.

Dimensiones magnetotermicos HGD 125
