Closed contact NC screw connection - Giovenzana
Closed contact NC screw connection - Giovenzana

Closed contact NC screw connection - Giovenzana

€2.49 Tax included

€2.06 tax excl.

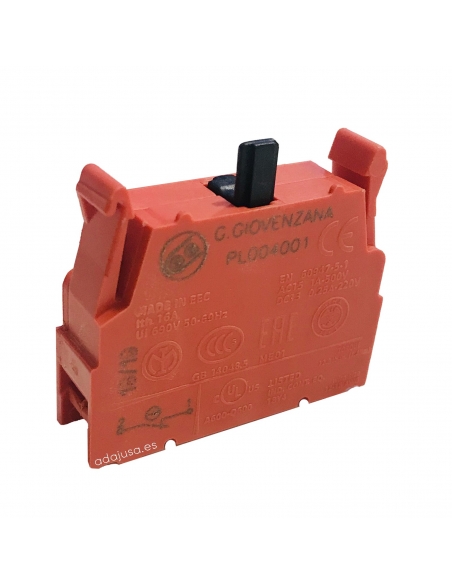

Block of nc (NC) to be installed in pushbuttons and control of the giovenzana brand.

Contact connection by screw, red color.

Reference: PL004001

Esquema contacto cerrado

Logotipo normativa botoneras serie HP resumido

Logotipo Giovenzana Adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Block of nc (NC) for command assistants of the Giovenzana brand. narrow profile, easy and strong support on the control element.

Connection of the electrical cable by screw, Contact of high current capacity (16a).

specifications:

  • Manufacturer: Giovenzana.
  • Reference: PL004001.
  • Type of action: Normally closed contact (C).
  • Color: Red.
  • Nominal insulation voltage (Ui): 690V.
  • Working frequency: 50/60Hz.
  • Rated thermal current (Ith): 16a.
  • Rated current of use (In) category AC15 (alternating current):
    • 24Vac: 16a.
    • 60Vca: 12A.
    • 110Vac: 8A.
    • 240Vac: 6A.
    • 400Vac: 4A.
    • 500Vac: 3A.
    • 690Vac: 1A.
  • Rated current of use (In) category DC13 (direct current):
    • 24Vcc: 2A.
    • 48Vcc: 1.2A.
    • 60Vcc: 0.85A.
    • 110Vcc: 0.4A.
    • 250Vcc: 0,25a.
  • Contact resistance:
  • Contact operation: Slow break double contact positive opening.
  • Drive force: 4N.
  • Cable connection: By screw.
  • Electrical duration:
    • 1A: 1500000 cycles.
    • 2A: 500000 cycles.
    • 3A. 250000 cycles.
  • Standard: IEC/EN60947-5-1.

dimensions:

Dimensiones bloque contacto abierto PL004002 Giovenzana Adajusa

diagrama de tiempos contacto cerrado PL004001 Giovenzana Adajusa

Mount mode:

Modo de montaje bloques de contactos Giovenzana Adajusa

Note: This contact block is only valid for elements manufactured by Giovenzana.

For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
