€25.51 Tax included

€21.08 tax excl.

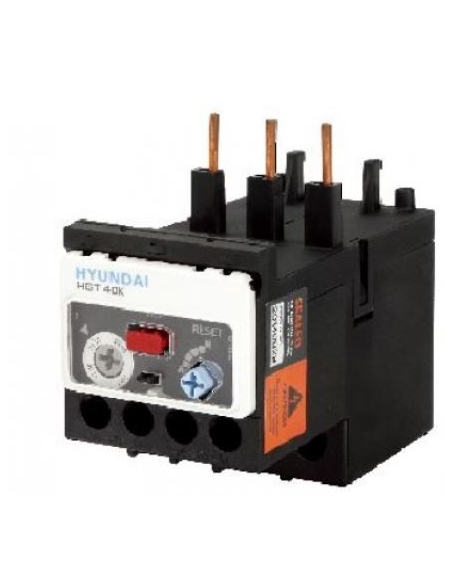

Three-phase thermal relay for overload protection of electric motors. The thermal relay regulation is between 0.6 and 0.9 A.

Reference: HGT18-KA0P90S

Esquema electrico rele termico

hyundai electric logo
Representative image for illustrative purposes, the supplied article is subject to the specifications indicated.

No queries yet, leave the first!


Three-phase thermal relay for protection of electric motors against overloads. The thermal relay has 2 independent auxiliary contacts (1 open and one closed). The reset can be selected to occur automatically or manually by pushbutton located on the body of the thermal relay. It has ambient temperature compensation.

The thermal relay is designed to be coupled directly to the output of a contactor, it can also be attached to a DIN rail using the available adapter.

Thermal relay features:

  • Manufacturer/Supplier: Hyundai Electric
  • Reference: HGT18-KA0P90S
  • Regulation range: 0.6 to 0.9A.
  • Rated voltage Ue: 690V.
  • Insulation voltage: 690V.
  • Maximum Uimp peak voltage: 6kV.
  • Kind of shot: 10.
  • Ambient temperature compensation between -5 and 40oC.
  • Dimensions: 45x78,2x82.7mm.


To expand the information you can download the data sheet by clicking on the tab "Attachments"
Material for professional use, install in compliance with the regulations in force at the place of installation.
