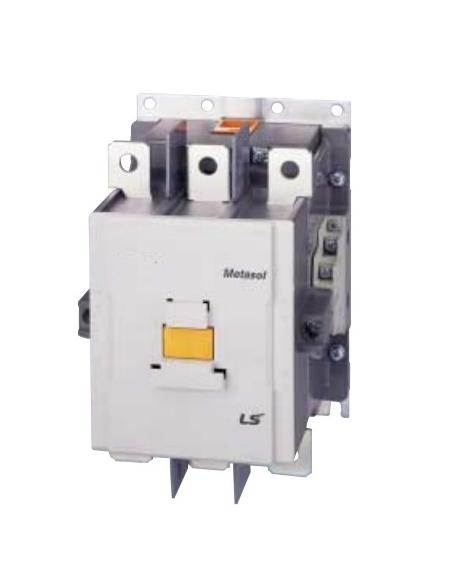

Three-phase contactor 225A coil 400Vac - LS

€378.44 Tax included

€312.76 tax excl.

Electric three-phase contactor equipped with high capacity contacts for electric motor control, heating, lighting, ventilation,.., 3-pole with a current capacity of 225A ac3 or 275A category AC1, with 400Vac coil, the contactor is equipped with two open auxiliary contacts (NA) and two other closed (NC)

Reference: MC-225a AC400V 3P

Esquema contactor 4 contactos auxiliares

Logotipo LS LG industrial Systems

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase contactor (3 poles) of 225A in AC3 category or 275A in AC1 category, the contactor is equipped with high robust main contacts, suitable for demanding applications for electric motor control, heating systems, lighting, ventilation and general use. The contactor is equipped with an open auxiliary contact (NA) and a closed auxiliary contact (NC), located on the sides of the contactor. Fastening can be done by screws or by DIN rail.

Technical details:

  • Manufacturer: LS (LG Industrial Systems).
  • Contactor Reference: MC-225a AC400V 50/60Hz 2a2b 3P
  • Maximum operating voltage (Eu): 690Vac.
  • Maximum insulation voltage (Ui): 1000Vac.
  • Maximum peak voltage (Uimp): 8kV.
  • Coil voltage: 400Vac.
  • Number of contactor poles: 3.
  • Assigned current for contactor in AC3: 225A.
  • Assigned current for contactor in AC1 (Ith): 275A.
  • Maximum power (kW) 380-400Vac: 132kW.
  • Maximum power (kW) 220-230Vac: 75kW.
  • Auxiliary contacts: 4 sides (2 open and 2 closed).
  • Minimum auxiliary contact current: cc 17V 5mA.
  • Hourly operations: 1200.
  • Mechanical durability: 5,000,000 operations.
  • Electrical dubability: 1,000,000 operations.
  • Weight: 5.4 Kg.
  • Dimensions: 138x203x181 mm.
