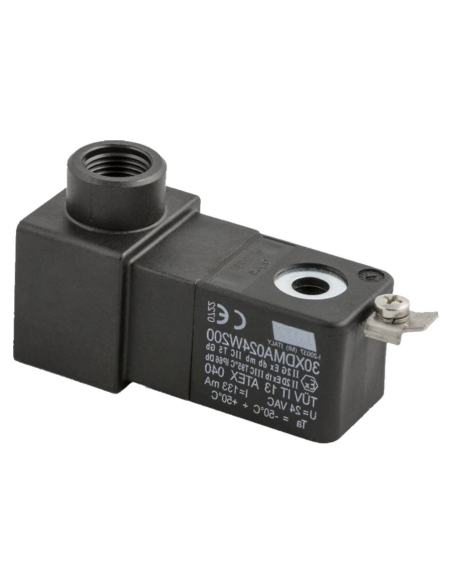

Coil solenoid valve 110Vac 4,8VA Size 30mm diameter 9 ATEX - Aignep

Name: Coil solenoid valve 110Vac 4,8VA Size 30mm diameter 9 ATEX - Aignep
Brand: Aignep
SKU: SOLX2110A2000
Price: 88.3058 EUR
Availability: InStock

€88.31 Tax included

€72.98 tax excl.

ATEX coil for solenoid valve size 30mm, voltage 110Vac, for Ø9mm cores. Coil consumption 4,8VA.

Valid for solenoid valves with 9mm actuator core.

Reference: SOLX2110A2000

Logotipo Aignep Logotipo identificador bobina ATEX 30mm Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
For more information, download the attached datasheet.

No queries yet, leave the first!

Privacy

Shipments

Returns

Coil size 30mm, operating voltage 110Vac, power consumption 4.8VA and 100% duty cycle, suitable for solenoid valves with an actuator core diameter of 9mm. IP66 degree of protection, suitable for working in ATEX zones.

Suitable for solenoid valves manufactured by Aignep, for installation follow the manufacturer's instructions.

Dimensiones bobinas tamaño 30mm ATEX Aignep Adajusa

Technical characteristics:

Brand: Aignep
Reference: SOLX2110A2000
Rated voltage: 110Vac
Voltage tolerance: ±10%
Rated power: 4.8VA
Duty cycle: ED 100%
Core diameter: 9mm
Type of isolation: F (EN 60085)
Degree of protection: IP66
Temperature: -50ºC to 50ºC
Electrical connection: PG 9
ATEX specifications: II 2G Ex db mb IIC T5 Gb | II 2D Ex tb IIIC T5 Db

Note: Do not use with 01VB subbases. With Namur 08V valves use spacer 08V01

Material for professional use, install in compliance with the regulations in force at the place of installation.

Catálogo válvulas Aignep

Download (8.44MB)
