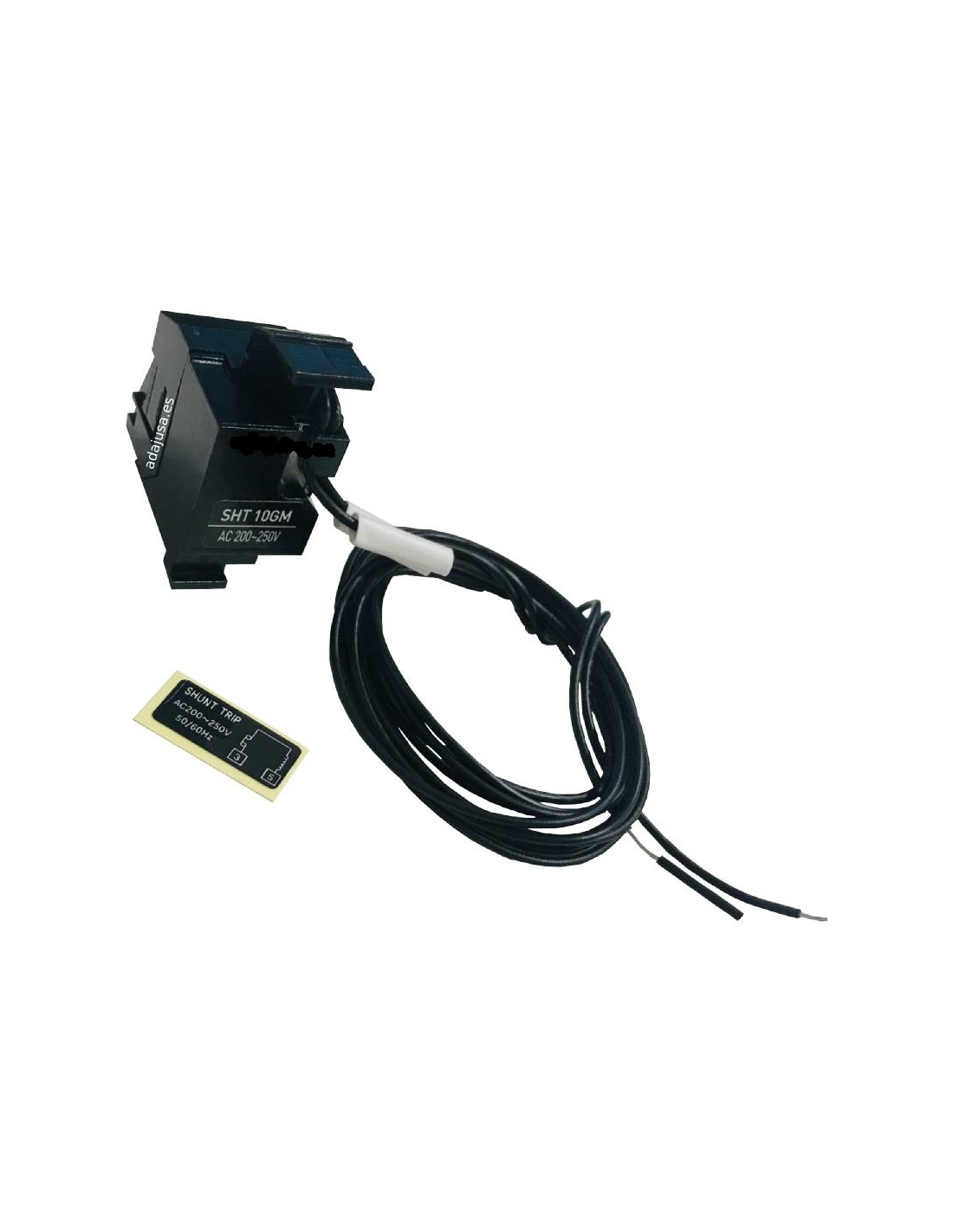

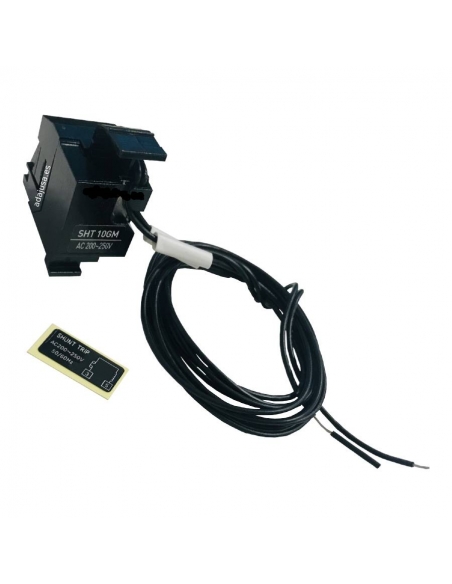

Emission Coil 400Vac Automatic Molded Box - Hyundai Electric

€77.09 Tax included

€63.71 tax excl.

400Vac emission coil for automatic molded box switch shooting.

Reference: SHT-10GM380V

No queries yet, leave the first!
Privacy
Shipments
Returns


Emission coil block for automatic molded box switch shooting, 400Vac working voltage.

The emission coil, or firing coil, produces the trigger of the automatic switch to which it is associated when the coil receives voltage. This allows you to attach the automatic switch to a differential relay, or to shoot it remotely in a simple and simple way.

This device is only valid to be mounted on molded box switches of the brand Hyundai Electric

Technical details:

  • Manufacturer/Supplier: Hyundai Electric
  • Reference: SHT-10GM380V
  • Nominal voltage (Vn): 400Vac
  • Activation voltage range: 0.7-1.1 Vn
  • Working frequency: 45Hz-65Hz
  • Current consumed: 7.5mA
  • Opening time: 50ms
