Solenoid valve 1/8 5 way 3 positions assisted exhaust centers with coil - Metal Work - ADAJUSA

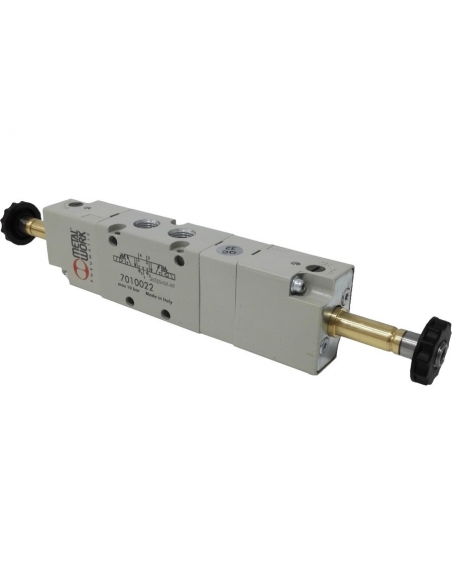

Solenoid valve 1/8 5 way 3 positions assisted escape centers - Metal Work - ADAJUSA

Solenoid valve 1/8 5 way 3 positions assisted c. e. 24Vdc - Metal Work

Name: Solenoid valve 1/8 5 way 3 positions assisted c. e. 24Vdc - Metal Work
Brand: Metal Work
SKU: PK-1853CE24C
Price: 125.2574 EUR
Availability: PreOrder

€125.26 Tax included

€102.67 tax excl.

Solenoid valves of 1/8" of 5 ways and 3 positions, assisted, open centers in exhaust, metal body, for pneumatic applications of industrial or general use. With 24Vdc connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.50

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€9.19

Solenoid valve 1/8 5 way 3 positions assisted exhaust centers - Metal Work

€103.88

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Solenoid valves of 1/8 " of 5 ways and 3 positions, assisted, open centers in exhaust, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder will be without pneumatic pressure by any of its inputs, with which the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.

The supply includes:

Electrovalvula 1/8 5/3 assisted exhaust centers
2 coils 24 Vdc 2.5W
2 T22 connectors

Specifications:

Solenoid valve manufacturer: Metal Work.
Solenoid valve reference: 7010022600 - SOV 26 SES PC
Solenoid valve working pressure: 2.5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow at 6 bars Δp 1 bar: 550 Nl/min.
Voltage: 24 Vdc
Power: 2.5W

Dimensiones electroválvula 1/8 5/3 Metal Work
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

Metal Work

W0215000111

€9.19 (€7.53 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm. Valid for solenoid valves with 8mm actuator core.Reference: W0215000111 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

Metal Work

W0215000101

€9.19 (€7.53 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000101 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

Metal Work

W0215000121

€9.19 (€7.53 tax excl.)

Coil for solenoid valve size 22mm, voltage 110Vca., with a consumption of 3.5VA, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core. Reference: W0215000121 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Luminous valve connector size 22 with VDR 220V - ADAJUSA

Accessories for solenoid valves

Solenoid valve connector luminous size 22 with VDR 220V

Metal Work

W0970510017

€7.60 (€6.23 tax excl.)

Connector for solenoid valve with VDR 220 V protector and LED indication. For 22mm coils. Reference: W0970510017Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.
