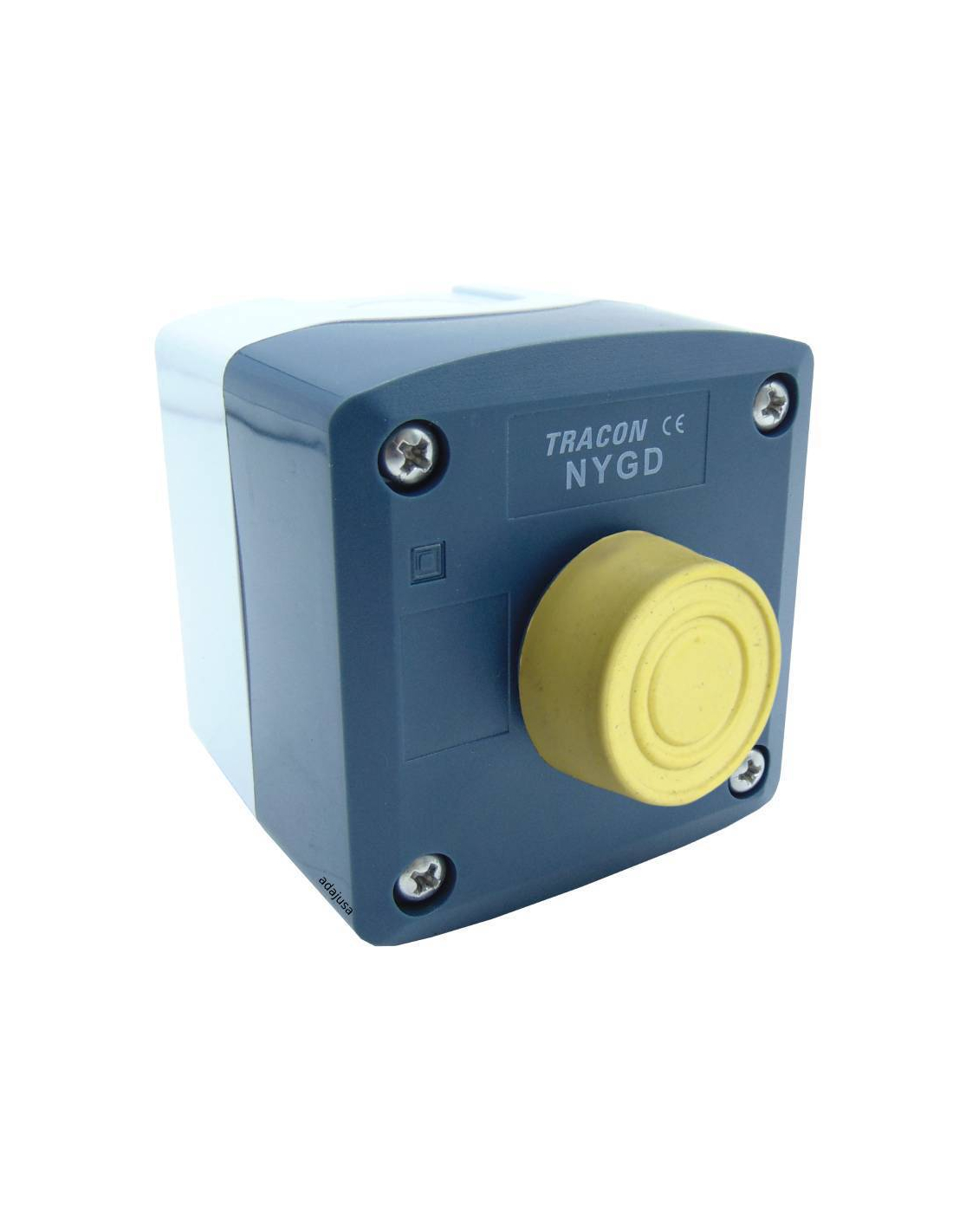

Yellow Push Button Box with Full Rubber Cover - NYG Series

Yellow Push Button Box with Full Rubber Cover - NYG Series

€8.39 Tax included

€6.93 tax excl.

Yellow push button Box with full rubber cover. Yellow metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.


Reference: NYGBP51ST


 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Yellow push button Box with full rubber protection. Yellow metal pushbutton with an open contact (1 NO) and rubber cover, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.

The box has space for mounting another additional contact, open or closed, on the button. The maximum number of contacts per item is 2.

The dimensions of the box are: 73x71x65.5mm



The supply does not include assembly, the box and the button are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYGBP51ST
  • Push button type: Push button
  • Button color: Yellow
  • Registration: None
  • Contacts : 1 NO
  • Light gray/dark gray plastic Box
  • Drill diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Nominal working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Protection grade: IP44
  • Regulations: EN 60947-1; EN 60947-5-1


BG31 Adajusa rubber push button dimensions







Material for professional use, install in compliance with the regulations in force at the installation site.
