Box with complete 2-position Off-On key...

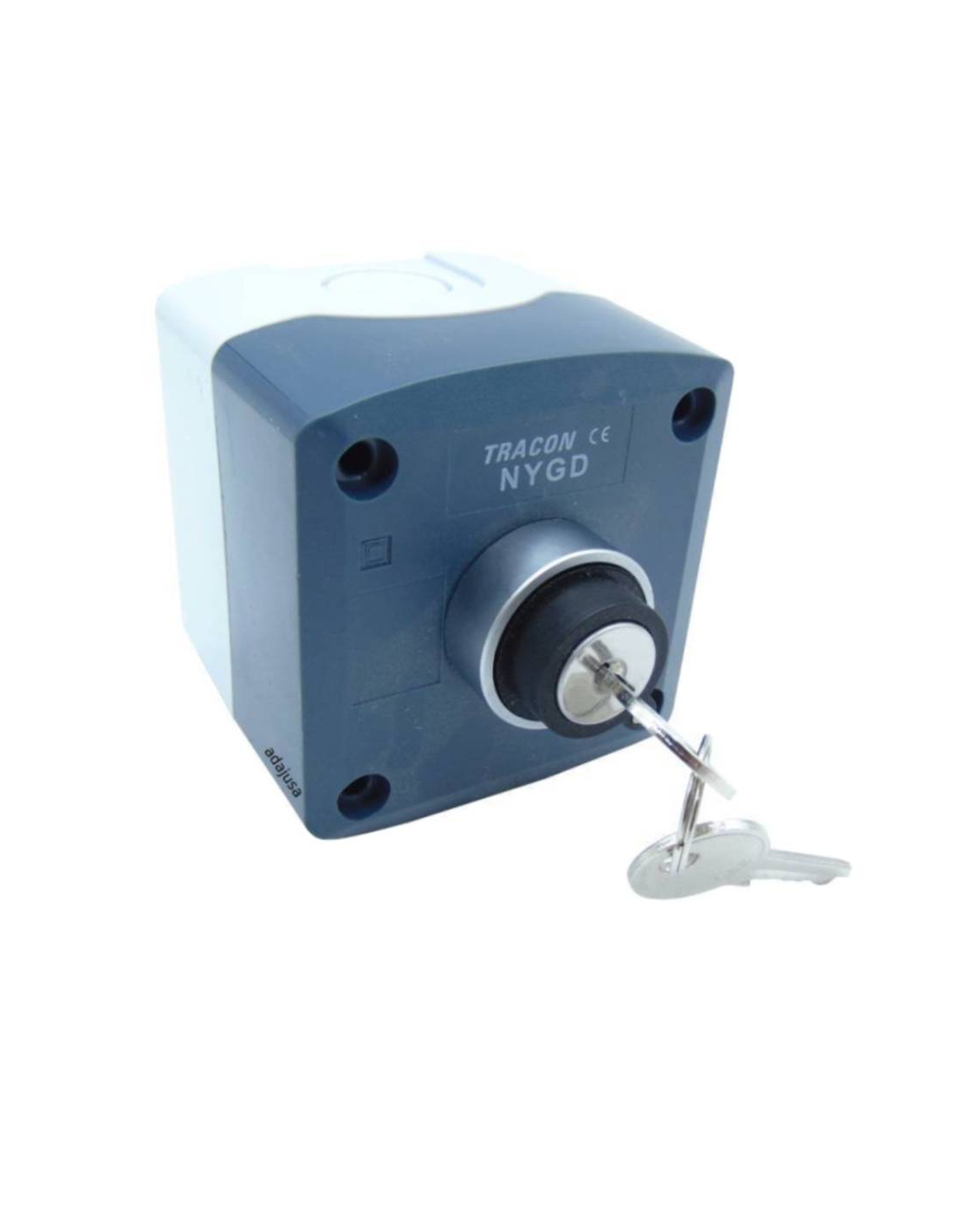

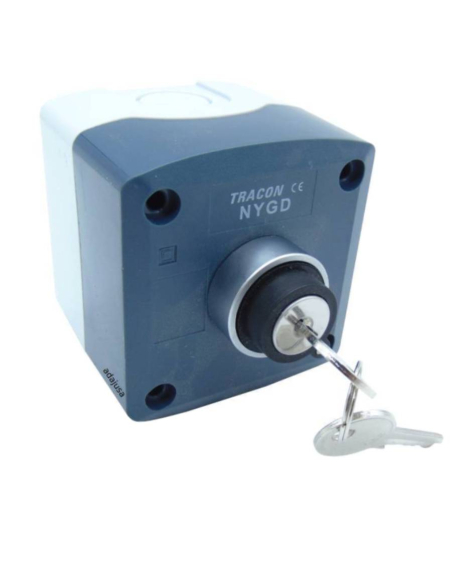

Box with complete 2-position Off-On key selector - NYG Series

Box with complete 2-position Off-On key selector - NYG Series

€8.42 Tax included

€6.96 tax excl.

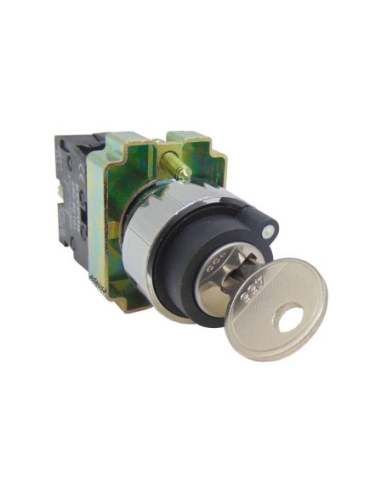

Box with 2-position selector activated by a complete key. Metal selector with 2 maintained position key and 1 open contact (NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.

The key can be inserted or removed in both positions.


Reference: NYBG41KKT


 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with 2-position selector activated by a complete key. Metal selector with 2 maintained position key and 1 open contact (NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.

The key can be inserted and removed in both positions, both in the "Off" position and in the "On" position.

The box has space for mounting another additional contact, open or closed, on the selector. The maximum number of contacts per item is 2.

The dimensions of the box are: 73x71x65.5mm



The supply does not include assembly, the box and selector are supplied loose. Includes two keys.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NYBG41KKT
  • Push button type: Selector
  • Number of positions: 2 maintained
  • Registration: None
  • Contacts : 1 NO
  • Light gray/dark gray plastic Box
  • Drill diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Nominal working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Protection grade: IP44
  • Regulations: EN 60947-1; EN 60947-5-1



Key selector dimensions







Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

16 other products in the same category:

Box with complete...
  • Pack
Button boxes with controls already installed

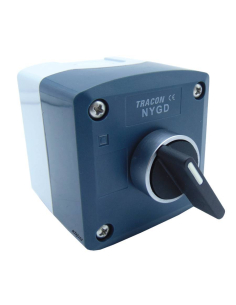

Box with complete 3-position long handle selector - NYG Series

TRACON
NYBJ33KLOT
€7.96 (€6.58 tax excl.)
Box with complete 3-position selector. Long handle metal selector with 3 maintained positions and 2 open contacts (2NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade. Reference: NYBJ33KLOT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
HP07 emergency button. D6 adajusa.is
Lifting elements - crane bridges - hostas

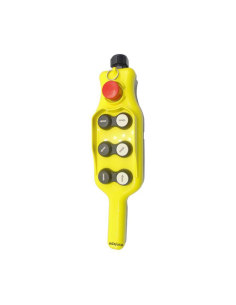

Emergency button HP07 D6 crane bridge or hosticch - Giovenzana

Giovenzana Internacional B.V.
GI-HP07.D6
€90.25 (€74.59 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down (double speed), back and front (double speed) and left right (double speed) It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe....
View
Box command maintenance elevator GM412 - Giovenzana Box command maintenance elevator GM412 - Giovenzana 2
Button boxes with controls already installed

Box command maintenance elevator GM412 - Giovenzana

Giovenzana Internacional B.V.
GI-GM412ES
€88.09 (€72.80 tax excl.)
Button box mounted for maintenance and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 2 NC 1NA alarm switch pushbutton. Pushbutton stopped in motion 2NA+1NC. Selector normal or in maintenance 3NA+3NC....
HP07 emergency button. D2 adajusa.is
Lifting elements - crane bridges - hostas

Emergency button HP07 D2 crane bridge or hosticch - Giovenzana

Giovenzana Internacional B.V.
GI-HP07.D2
€80.28 (€66.35 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down, left right and front behind (double speed). It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe. The supply includes: Box for...
Emergency box light and plug series GM403A - Giovenzana Emergency box light and plug series GM403A - Giovenzana 2
Button boxes with controls already installed

Emergency box light and plug series GM403A - Giovenzana

Giovenzana Internacional B.V.
GI-GM403ES
€38.45 (€31.78 tax excl.)
Button box mounted for moat and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 1 NC 1NA lighting switch Schuko European 16a outlet Reference: GM403A/EN Representative image for illustrative purposes, the...
View
Box control maintenance elevator cab GM751 - Giovenzana Box control maintenance elevator cab GM751 - Giovenzana 2
Button boxes with controls already installed

Box control maintenance elevator cab GM750 - Giovenzana

Giovenzana Internacional B.V.
GI-GM750ES
€96.87 (€80.06 tax excl.)
Assembled pushbutton box for car maintenance and inspection of elevators It complies with the specific regulations for elevators and machines, and meets all safety requirements. The supply includes: Box Emergency push button 1 NC Alarm switch push button 1NA. Push button stop in movement. Normal or maintenance selector. Up push button. Down...
Box with protruding stop...
  • Pack
Button boxes with controls already installed

Box with protruding stop button with complete "O" inscription - NYG Series

TRACON
NYGBA4322PT
€6.81 (€5.63 tax excl.)
Box with protruding stop button with "O" inscription. Protruding red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBA4322PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Box with mushroom stop...
  • Pack
Button boxes with controls already installed

Box with mushroom stop button with complete interlocking - NYG Series

TRACON
NYG542P40T
€7.65 (€6.32 tax excl.)
Box with 40mm diameter mushroom stop button with complete interlocking . Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYG542P40T Representative image for illustrative purposes, the item supplied will correspond to the indicated...
Box with complete...
  • Pack
Button boxes with controls already installed

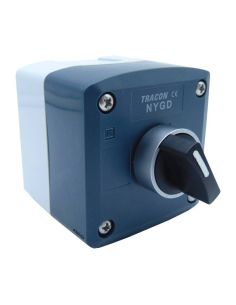

Box with complete 3-position selector - NYG Series

TRACON
NYBD33KSTT
€8.29 (€6.85 tax excl.)
Box with complete 3-position selector. Short lever metal selector with 3 maintained positions and 2 open contacts (2NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade. Reference: NYBD33KSTT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
TLP4 type button. C - Giovenzana adajusa
Lifting elements - crane bridges - hostas

Keypad TLP4 type C - Giovenzana

Giovenzana Internacional B.V.
GI-TLP4.C
€30.08 (€24.86 tax excl.)
Push button box mounted for elevator pit and inspection, escalators and general use. Wall or bracket mounting. Complies with the specific regulations for elevators and machines, allows to satisfy all safety requirements. The supply includes: Box for 4 elements Up push button 1NA Down push button 1NA. Right push button 1NO Left push button NA...
5-element Ergos HP05 series button. D4 Giovenzana adajusa
Lifting elements - crane bridges - hostas

HP05 emergency button. D4 crane bridge or hosticch - Giovenzana

Giovenzana Internacional B.V.
GI-HP05.D4
€84.31 (€69.68 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down (double speed) and left right (double speed). It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe. The supply includes: Box...

Customers who bought this product also bought:

Box with mushroom stop...
  • Pack
Button boxes with controls already installed

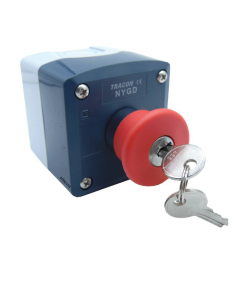

Box with mushroom stop button with complete key - NYG Series
