Metal emergency stop pushbutton 40 full (press-turn)
Metal emergency stop pushbutton 40 full (press-turn)

Metal mushroom stop button diameter 40 complete with interlocking

€3.58 Tax included

€2.96 tax excl.

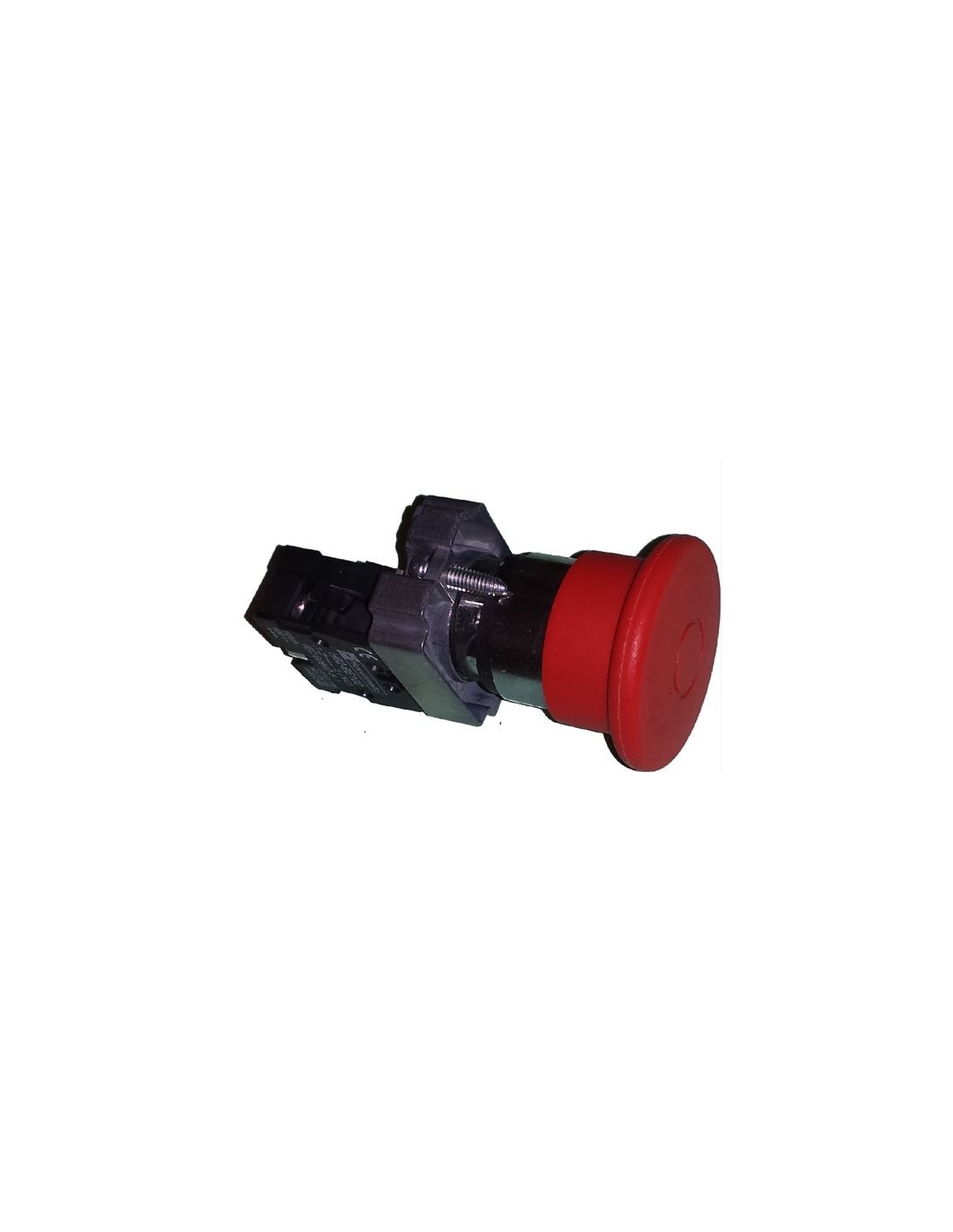

Mushroom stop button diameter 40mm with interlocking , 1 closed contact, metal body, chrome edge. Twist unlock.

The supply includes the complete pushbutton with a closed contact.

Reference: NYG542P40

Emergency button electrical diagram

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


40mm diameter mushroom stop button with interlocking , 1 closed contact (NC). Ability to add additional contacts. Chrome edge and twist unlock.

The supply includes the complete pushbutton with a closed contact.

Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference equivalent to: NYG542P40
  • Mushroom diameter: 40mm
  • Unlock mode: by twist
  • Material: Metal body
  • Contact : 1 closed (NC). Possibility of mounting additional contacts
  • Drill diameter: 22mm
  • Ith intensity: 10(6) A
  • Intensity Ie (AC1, 230Vac): 6 A
  • Ui voltage: 660V
  • Contact resistance: 50 mOhm
  • Protection degree: IP42 (Mounted, from the front)
  • Regulations: CE, EN 60947-1, EN 60947-5-1

This button can receive additional contacts, type BE101 and BE102. A maximum of 4 contacts can be installed.

Dimensions emergency button diameter 40 adajusa


Mounting distance for buttons diameter 30 adajusa

Material for professional use, install in compliance with the regulations in force at the installation site.
