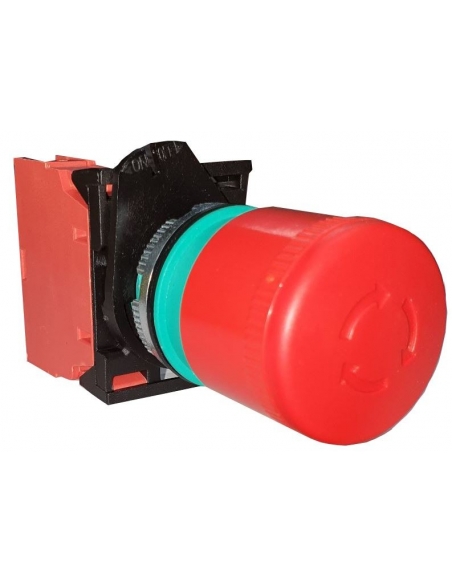

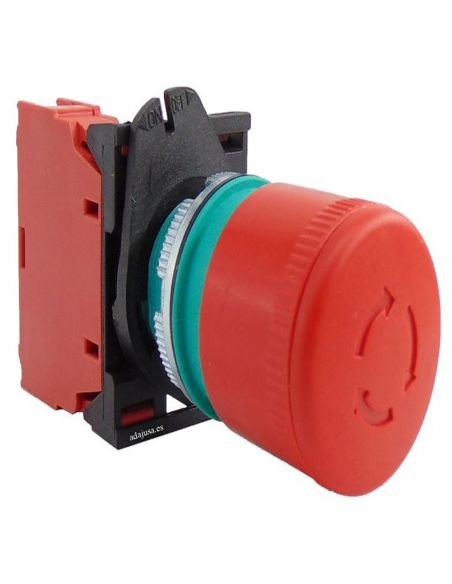

Emergency pushbutton 30mm full NC - Giovenzana

€8.53 Tax included

€7.05 tax excl.

Emergency pushbutton diameter 30mm,with unlocking by turn. Diameter of the drill for fixing of 22.5mm. Support for contacts included, allows the assembly of up to 3 contacts, both open and closed. The front visual indication for an easy indication of the situation of the push button, whether it is activated or not.
Includes a nc (NC), screw cable fixation.

reference: PPFN1R3N
Reference: PL004001

Simbolo pulsadro de emergencia

Logotipo Giovenzana para fichas
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!


Emergency pushbutton diameter 30mm,with unlocking by turn. Diameter of the drill for fixing of 22.5mm. Support for contacts included, allows the assembly of up to 3 contacts, both open and closed.

Includes a nc (NC), screw cable fixation.

European manufacture under EN ISO 13850 standard, manufactured in high strength technopolymer.

This emergency pushbutton head can only accommodate contact blocks of the Giovenzana brand, the references are:

  • 1 nc (NC), spring cable fastening: GIPCW01.
  • 1 no (NO), spring cable attachment: GIPCW10.
  • 1 nc (NC), screw cable attachment: GIPL004001 (included)
  • 1 no (NO), screw cable fixation: GIPL004002.

dimensions:

Dimensiones emergencia diametro 30 Giovenzana

Mounting the contact blocks on the media (contact blocks not included in the supply):

Montaje pulsadores serie Pegasus


For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
