€13.39 Tax included

€11.07 tax excl.

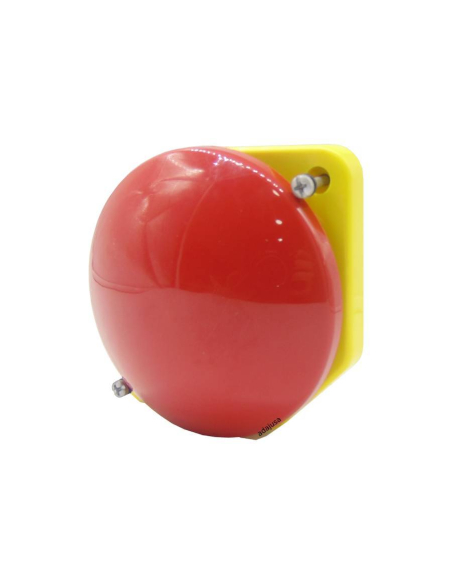

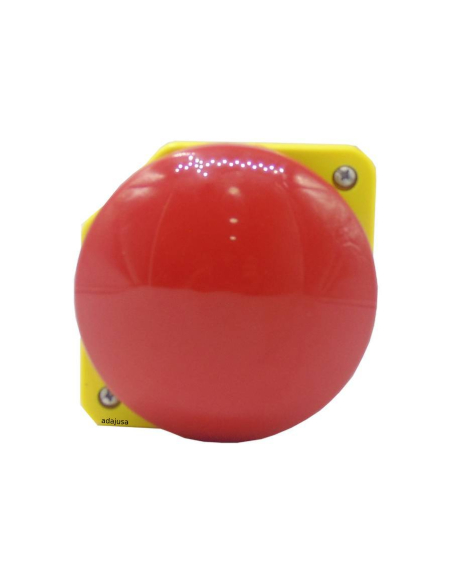

Fontal box pushbutton of large diameter,90mm, momentary action and in red color. Ideal for emergency stop applications where great accessibility is required. 1 nc (NC) of positive opening.

Red set pushbutton with recessed axial (front) drive, momentary action (without interlocking)

Button color: red

Reference: PR1M9W01

seta-emergencia-conexion

Logotipo Giovenzana Adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Embeddable fontal with large diameter emergency pushbutton (90mm) in red and momentary action (without interlocking).

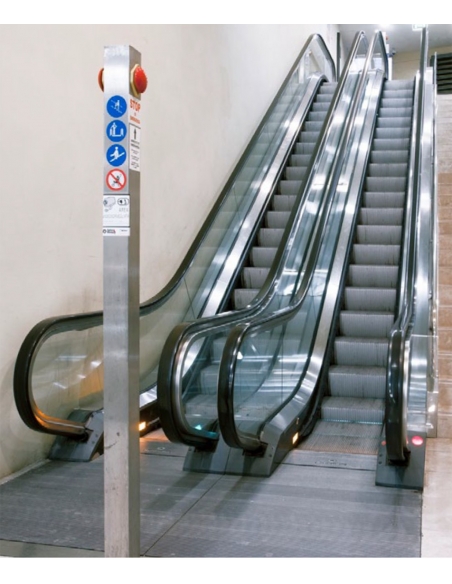

This front with push button is specially designed for applications and environments where great accessibility is required. It complies with all the applicable regulations in machine installations, elevators and automatic stairs.

Manufactured high quality plastic material and supplied with a positive opening nc (NC) and spring cable connection. 2 additional contacts can be added, these contacts can be both open (NA) and closed (NC). The total number of contacts installed in the box is 3 items.

The degree of protection is IP66.

The supply includes:

  • mushroom-head button Ø 90mm.
  • Normally closed contact (NC) of positive opening.

specifications:

  • Manufacturer: Giovenzana.
  • Reference: PR1M9W01
  • Type of action: Axial mushroom-head momentary action button.
  • colour:
    • Push button: mushroom-head red color.
    • Cover: Yellow.
  • Push button diameter: 90mm.
  • Front size: 90x90mm.
  • Degree of protection: EN60529 IP66.
  • maximum number of contacts: 3 items.
  • Type of connection: Fast fastening by spring.
  • Ambient temperature:
    • Employment: -25 to +70ºC.
    • Storage: -30 to +70ºC.
  • Climate resistance: IEC 68 2-3, 2-30.

Electrical characteristics:

  • Type of contact: Normally closed contact (NC).
  • Nominal insulation voltage (Ui): 690V.
  • Working frequency: 50/60Hz.
  • Rated thermal current (Ith): 16a.
  • Rated current of use (In) category AC15 (alternating current):
    • 24Vac: 16a.
    • 60Vca: 12A.
    • 110Vac: 8A.
    • 240Vac: 6A.
    • 400Vac: 4A.
    • 500Vac: 3A.
    • 690Vac: 1A.
  • Rated current of use (In) category DC13 (direct current):
    • 24Vcc: 2A.
    • 48Vcc: 1.2A.
    • 60Vcc: 0.85A.
    • 110Vcc: 0.4A.
    • 250Vcc: 0,25a.
  • Contact resistance:
  • Contact operation: Slow break double contact positive opening.
  • Drive force: 4N.
  • Electrical duration:
    • 1A: 1500000 cycles.
    • 2A: 500000 cycles.
    • 3A. 250000 cycles.
  • Identification of the terminals: EN50013.
  • Standard: IEC/EN60947-5-1.

dimensions:

Dimensiones frente caja pulsador 90

Mount mode

diagrama de tiempos contacto cerrado PL004001 Giovenzana Adajusa

Dibujo conexionado terminales resorte giovenzana

seta-emergencia-escalera-pulsador

Note: Only contact blocks manufactured by Giovenzana can be used.
For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
