Emergency stop push button diameter 40 2NC (push-turn) Harmony XB4 - SCHNEIDER

€21.61 Tax included

€17.71 tax excl.

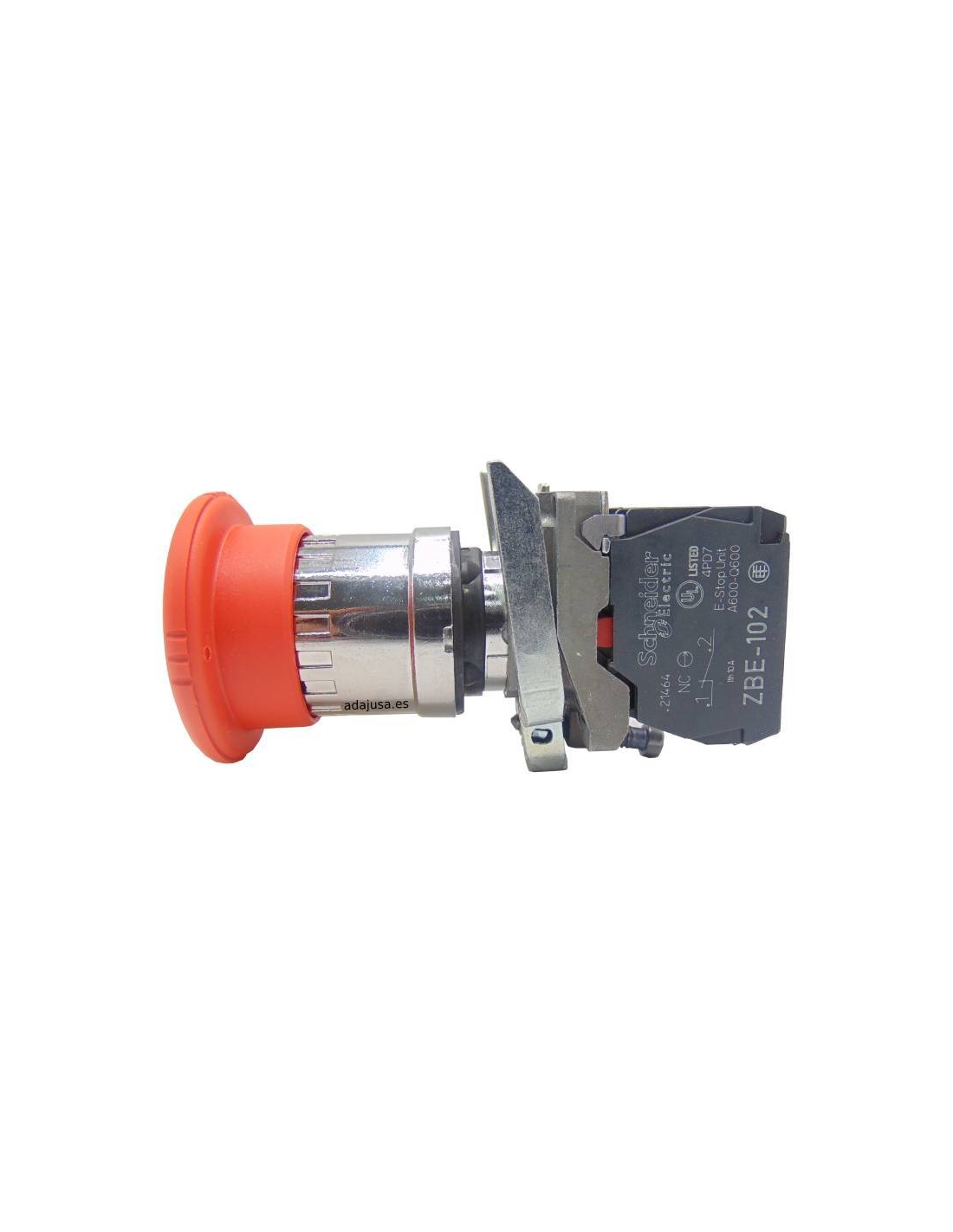

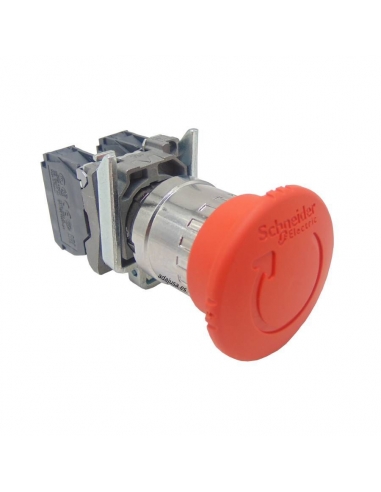

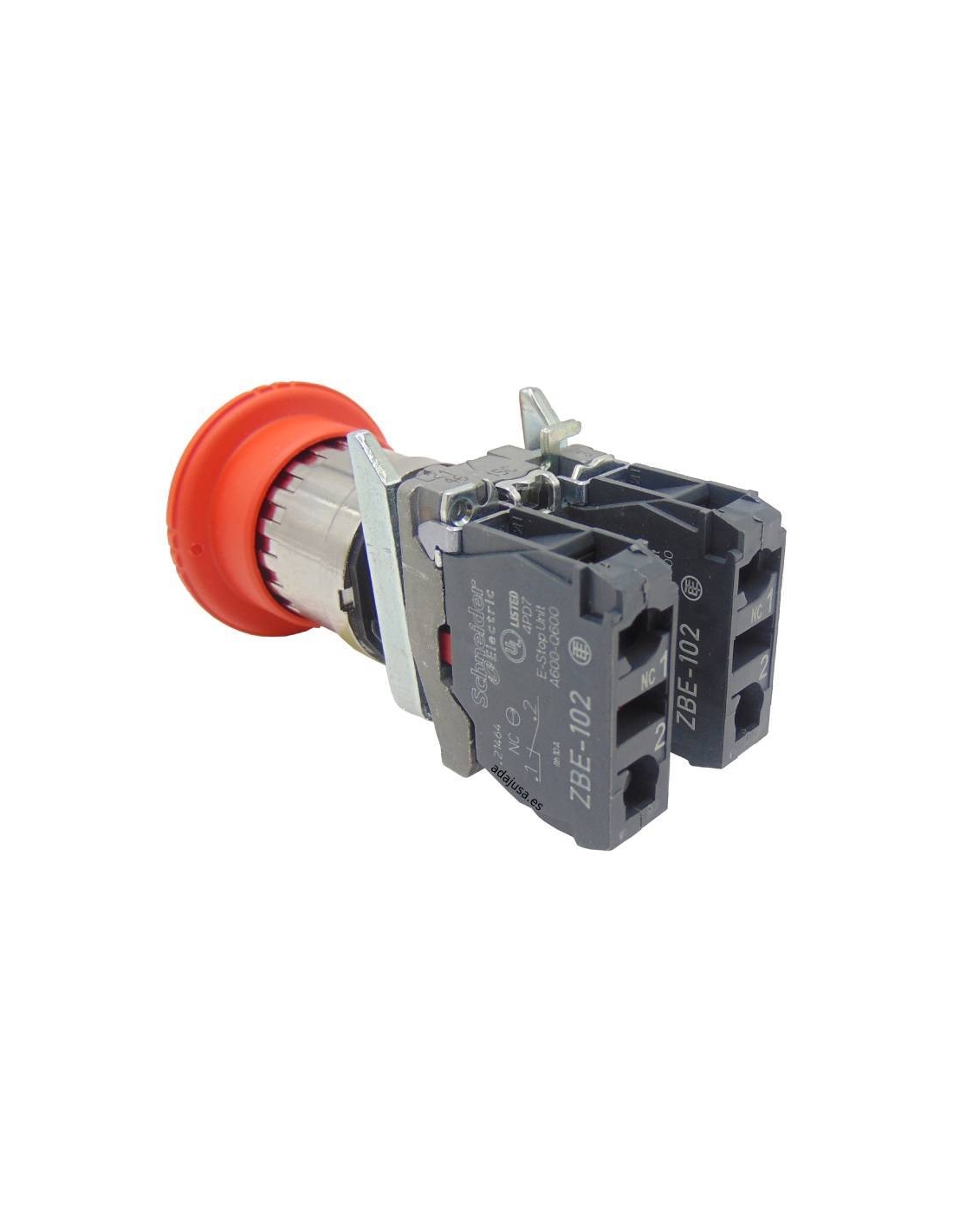

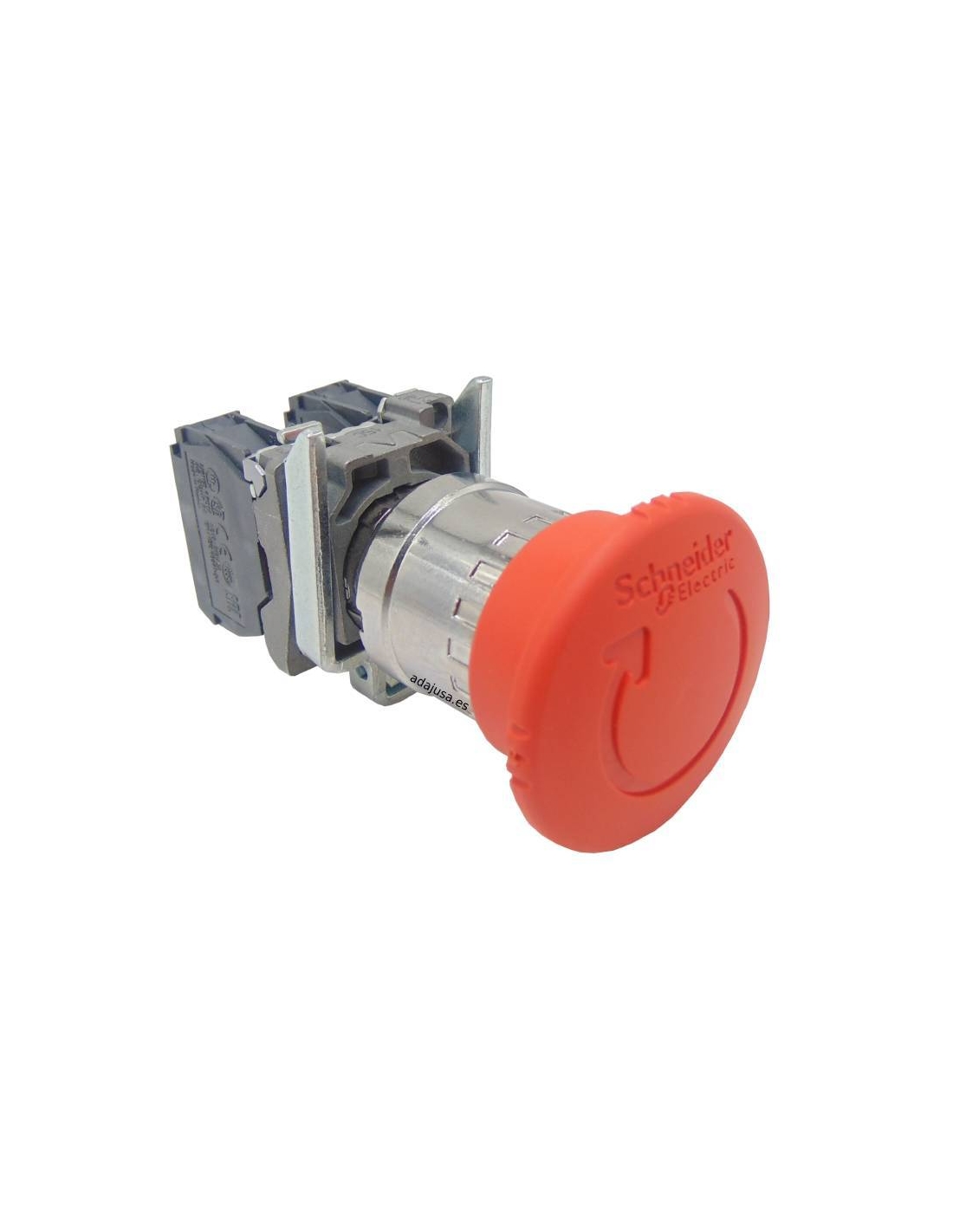

Emergency stop push button, red mushroom 40 mm diameter, 2 closed contacts, metal body and chrome-plated edge. Mechanical interlocking and twist release.

Delivery includes the complete pushbutton with two closed contacts (2 NC). Mounting diameter 22.5 mm. Cable fixing by screw.


Order No.: XB4BS8444




Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Emergency stop push button, mushroom type, red color and diameter 40mm with interlocking mechanical, 2 closed contacts (NC). Chrome-plated edge and twist release.



Features:

  • Manufacturer: SCHNEIDER
  • Ref. No.: XB4BS8444
  • HARMONY SERIES XBS metal
  • Mushroom diameter: 40mm
  • Mounting diameter: 22,5mm
  • Contact: 2 NC
  • Mode of interlocking: mechanical
  • Unlocking mode: by turning
  • Short-circuit protection: 10A Cartridge fuse type gG
  • Conventional thermal current: 10A
  • Rated insulation voltage: 600V
  • Peak voltage resistance: 6kV
  • Bezel material: Silver chrome-plated metal
  • Clamping ring material: Zamak
  • Contact material: Ag/Ni
  • Mechanical durability: 300000 cycles
  • Operating temperature: -40...70°C
  • IP degree of protection: IP66
  • Degree of protection IK: IK06

Dimensions (mm/in)



e: clamping thickness: 1 to 6 mm (0.04 to 0.24 in)


    For further information, you can download the technical data sheet by clicking on the "Attachments" tab.

    Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the installation site.
