Push button red closed contact (NC) Harmony XB4 - SCHNEIDER

Name: Push button red closed contact (NC) Harmony XB4 - SCHNEIDER
Brand: Schneider
SKU: XB4BA42
Price: 9.7478 EUR
Availability: InStock

€9.75 Tax included

€7.99 tax excl.

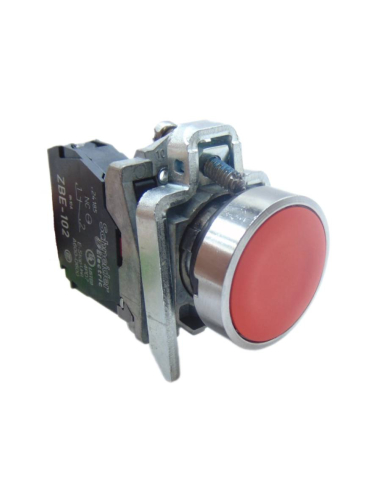

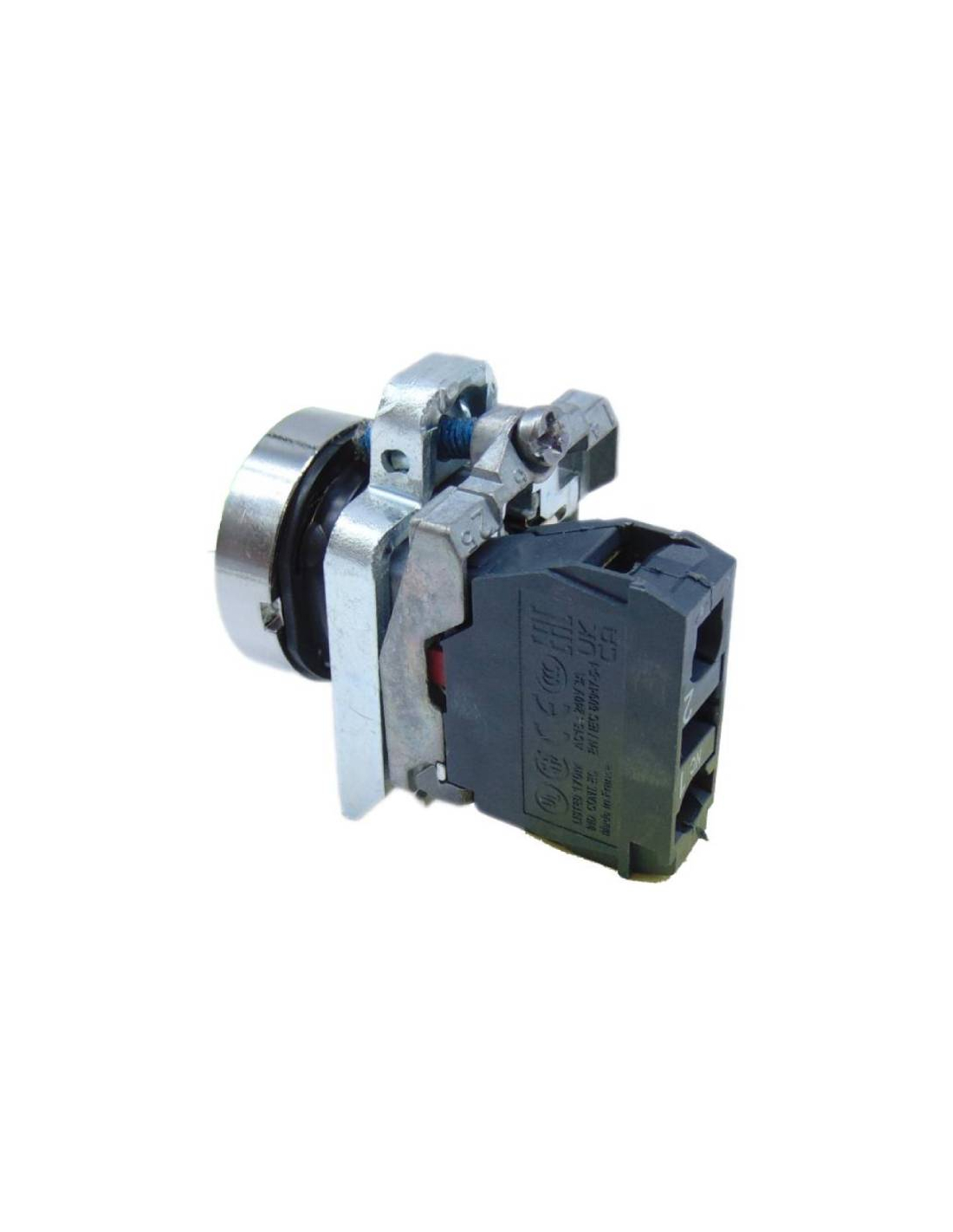

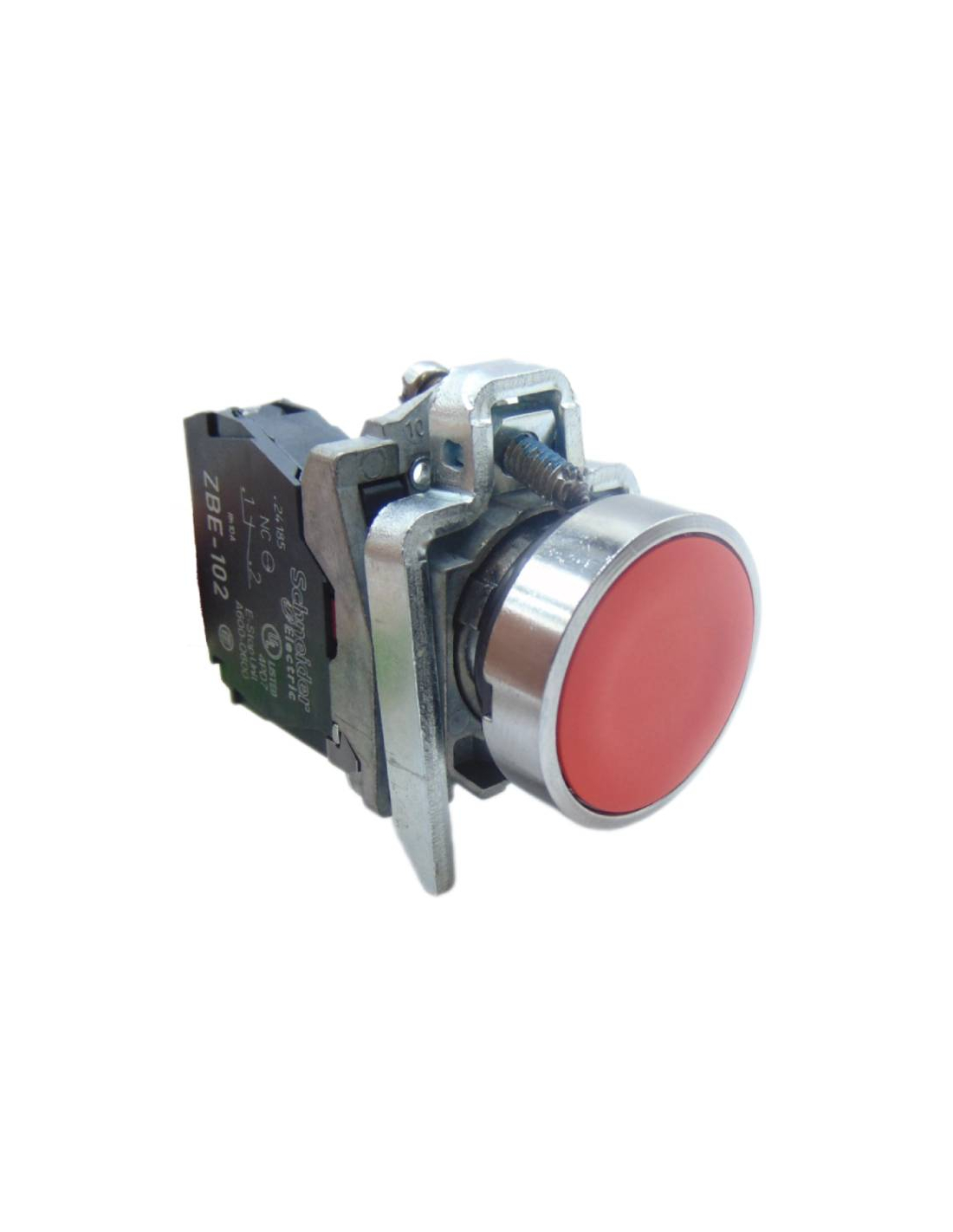

Red metal pushbutton, diameter 22 mm, 1 NC contact, metal body and chrome-plated edge.

The supply includes the complete pushbutton with 1 NC contact. Mounting diameter 22.5 mm. Cable fixing by screw.

Ordering No.: XB4BA42

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Flush metal push button in red color with one closed contact (NC), diameter 22 mm. Operation based on a spring/impulse return mechanism, featuring an ergonomic interface for machine control.

Delivery includes the pushbutton complete with a closed contact. Additional contacts can be added

Characteristics:

Manufacturer: SCHNEIDER
Ref. No.: XB4BA42
HARMONY XB4 SERIES
Operator profile: Flush red, without marking
Operator type: Spring return
Contact: 1 NC
Operator diameter: 22mm
Mounting diameter: 22.5mm
Short-circuit protection: 10A Cartridge fuse type gG
Conventional thermal current: 10A
Rated insulation voltage: 600V
Surge withstand voltage: 6kV
Rated operating current: 3A at 240V, AC-15 / 6A at 120V, AC-15 / 0.1A at 600V, DC-13 / 0.27A at 250V, DC-13 / 0.55A at 125V, DC-13 / 1.2A at 600V, AC-15
Bezel material: Silver plated chrome plated metal
Material of fixing ring: Zamak
Contact material: Ag/Ni
Electrical durability: 1000000 cycles
Mechanical durability: 10000000 cycles
Operating temperature: -40...70C
IP degree of protection: IP66
IK protection degree: IK06

Dimensions (mm/in)

For further information, you can download the data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

XB4BA42 technical sheet

Download (245.32KB)
