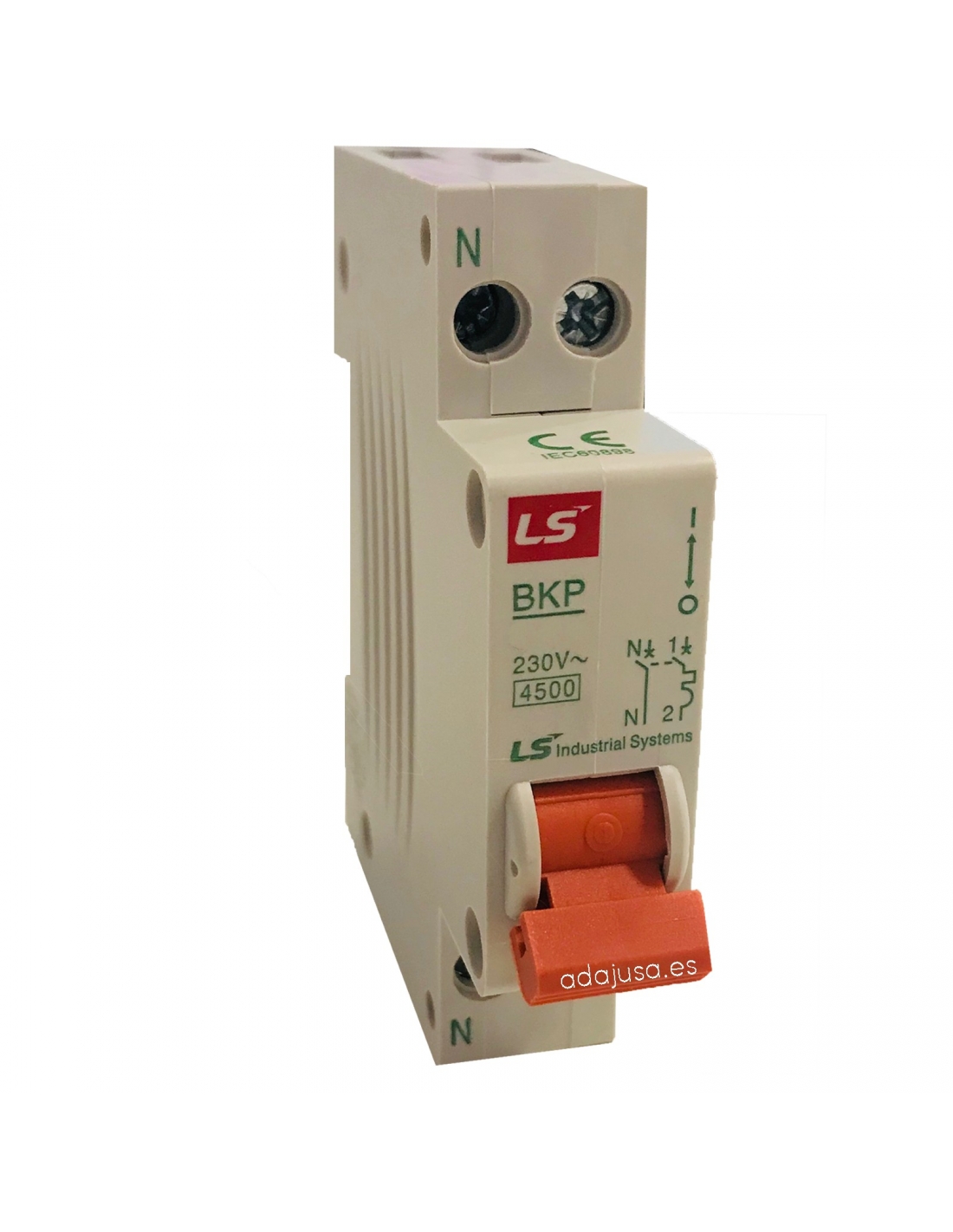

MCB circuit breaker 1 pole + neutral 16A narrow profile - LS

€5.67 Tax included

€4.69 tax excl.

16A MCB circuit breaker Pole + Neutral in narrow profile C curve.

1-pole + neutral, narrow profile, 16A MCB circuit breaker for protection against short circuits and overloads in single-phase installations. With an assigned breaking capacity of 4500A.

DPN electrical diagram

LG logo

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


16A 1-pole + neutral narrow-profile MCB circuit breaker for protection against short-circuits and overloads in electrical installations and elements. Protects the active conductor and cuts both conductors. Suitable for use in both single-phase and two-phase installations. High rated breaking capacity, 4500A according to IEC 60898-1.

Ideal for use in both domestic and industrial installations, as well as in machinery automation cabinets.

High reliability and performance allowing a high number of work cycles.

Auxiliary elements such as trip coils or permanent surge protectors can be added to the right side.



Main features of the magnetothermal switch:

  • Manufacturer/Supplier: LS - LG Industrial Systems
  • Reference: BKP 1P+N C16A
  • Nominal intensity of the magnetothermic (In): 16A
  • Number of poles: 1P+N
  • Type: DZ30 DPN
  • Use of the magnetothermic: domestic and tertiary sector
  • Rated Breaking capacity : 4500A
  • Operating voltage: 240Vac 50/60Hz
  • Characteristic curve: C
  • Mechanical life: 20000 operations
  • Standard: IEC60898
  • Marking: CE
  • Allows the use of pin type connection combs
  • Connection capacity: 10mm² cable


Professional use material, install in compliance with the regulations in force at the place of installation.
