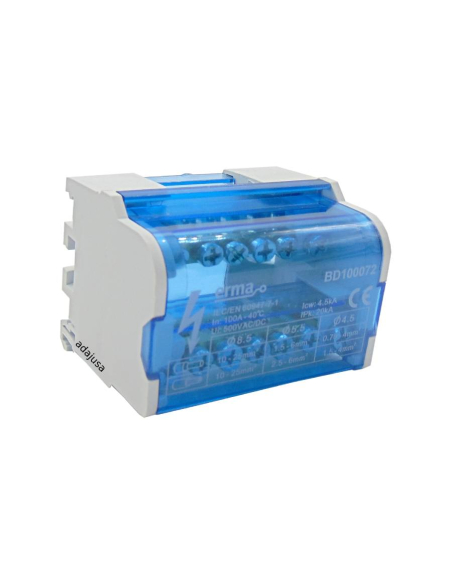

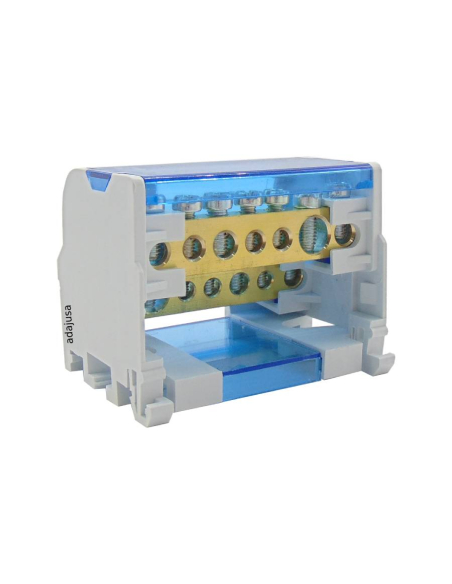

Bipolar connection delivery man 7 outputs

Two-pole distribution switch 6 outlets 100A

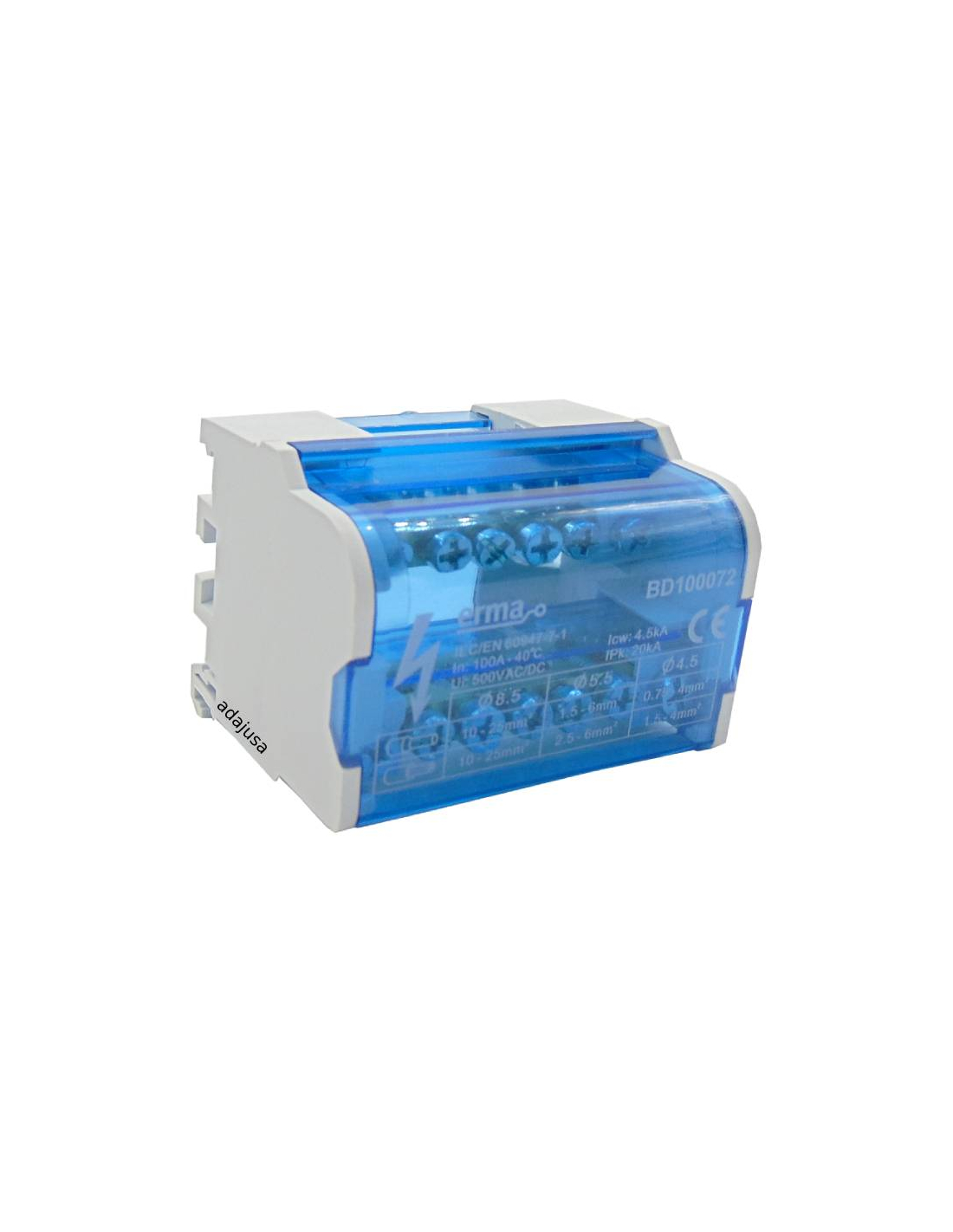

Name: Two-pole distribution switch 6 outlets 100A
Brand: ErMa
SKU: BD100072
Price: 6.70 EUR
Availability: BackOrder

€6.70 Tax included

5.49 tax excl.

BD100072

Two-pole (1 pole + neutral) electrical distribution board with 6 outputs and 1 input, suitable for currents up to 100A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size.

Part number: BD100072

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Bipolar electrical connection splitter with 6 outputs and 1 input, for use in electrical distribution cabinets to facilitate wiring and improve electrical load distribution and wiring.

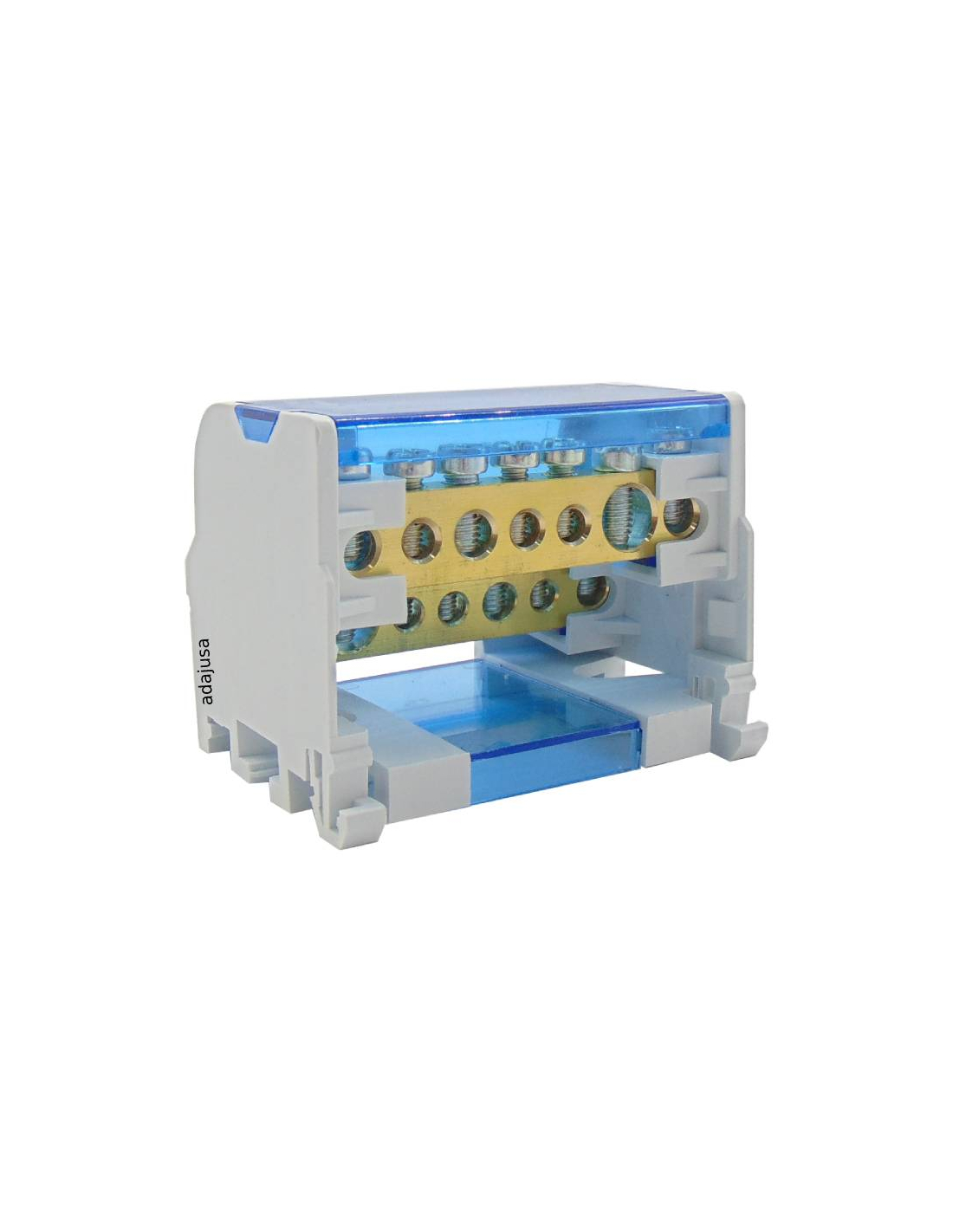

It has 2 brass distribution bars with steel screws, distributed in 2 heights and several orientations to facilitate the connection. It allows the possibility of incorporating a neutral extension bar, which is simply fixed to the distributor with a screwdriver.

Easy and fast mounting on DIN rail or screwed. The distributor is protected with a transparent polycarbonate cover.

The connection bar is equipped with:

1 inlet Ø8.5mm for cables 10mm² to 25mm²
3 outlets Ø4.5mm for cables 0.75mm² to 4mm²
3 outlets Ø5.5mm for cables from 1.5mm² to 6mm²

Technical characteristics:

Manufacturer/Supplier: Gaestopas
Manufacturer's reference: BD100072
Type: bipolar (1P+N)
Rated voltage: 500Vac/dc
Rated current: 100A
Icw: 4,5kA
Ipk: 20kA
Number of holes per busbar: 7
Holes per pole (holes x Ø mm): 1x8,5 / 3x4,5 / 3x5,5
Dimensions: 50x64x50 mm
Halogen free
UL94-V0 flammability rating
Certification: CE, ROHS
Standards: IEC 60947-7-1

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

RVOG3 3 Pole Quick Connect Terminal 32A | ADAJUSA | price

Electrical connection dealers

Quick connection terminal 3 poles 0,2-4mm

TRACON

RVOG3

€0.35 (€0.29 tax excl.)

3-pole quick connection terminal 32A, 450Vac for conductors from 0.2 to 4mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Reusable system. Part number: RVOG3 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Four-pole connection distributor 11 outputs 125A | Adajusa

Four-pole connection distributor 11 outputs 125A | Adajusa 2

Electrical connection dealers

Four-pole connection distributor 10 outlets 125A

ErMa

BD125114

€31.62 (€25.92 tax excl.)

Four-pole (3 poles + neutral) electrical distribution board with 10 outputs and 1 input, suitable for currents up to 125A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD125114 Representative image for illustrative purposes, the item...

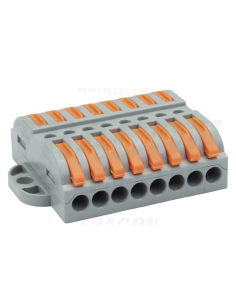

Double quick connection terminal 8 poles 32A OVOFT88 | ADAJUSA : price

Electrical connection dealers

Double quick connection terminal 8-pole 32A

TRACON

OVOFT88

€3.01 (€2.47 tax excl.)

32A, 400Vac 8-pole quick-connect double terminal for conductors from 0.5 to 4mm2. Screwless quick connection ensures a simple and safe electrical connection. Part number: OVOFT88 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

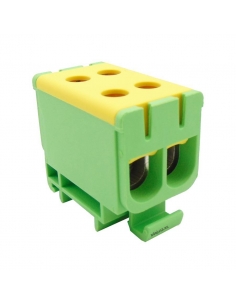

1 pole derivation terminal 4x2.5-50mm2 green | ADAJUSA

Bypass terminals

Bypass terminal 1-pole 4x2.5-50mm² Green/Yellow

TRACON

FLEAL-50/2ZS

€6.82 (€5.59 tax excl.)

1-pole shunt terminal for DIN rail mounting. Suitable for connection of copper conductors from 2.5 to 50 mm2 and aluminum conductors from 6 to 50 mm2. Color green/yellow. Reference: FLEAL-50/2ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

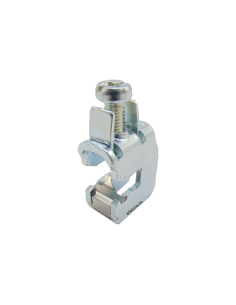

Direct mounting terminal block 16-120mm2 5mm thick plate | Adajusa

Connection and assembly material

Direct mounting terminal 16-120mm2 plate thickness 5mm

XBS

SZK120F5

€4.49 (€3.68 tax excl.)

Terminal for direct mounting on a plate for cables with a section of 16-120mm 2 , thickness of the mounting plate 5mm. Reference: SZK120F5 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Branch terminal 1 pole 4x1.5-16mm2 Green/Yellow | ADAJUSA | price

Bypass terminals

Branch terminal 1 pole 4x1.5-16mm Green/Yellow

TRACON

FLEAL-16/2ZS

€3.04 (€2.49 tax excl.)

1-pole branch terminal for DIN rail mounting. Valid for connecting copper conductors from 1.5 to 16 mm 2 and aluminum conductors from 1.5 to 16 mm 2 . Green/yellow color. Reference: FLEAL-16/2ZSRepresentative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Electrical connection dealers

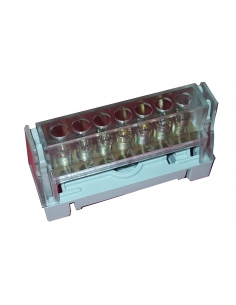

Phase 7 connection delivery man with cover

Generico-GAE

992-507F

€3.62 (€2.97 tax excl.)

Electric connection delivery machine for distribution of phase conductors, 7 holes with transparent polycarbonate lid, capable of supporting up to 50A, brass bar with steel screws and gray polyamide support. Fixation on panel or DIN rail. Manufacturer's reference: 507F. Representative image for illustrative purposes, the item supplied will...

Four-pole connection distributor 13 outputs 80A Adajusa

Four-pole connection distributor 13 outputs 80A Adajusa 2

Electrical connection dealers

Four-pole distribution switch 8 outlets 80A

ErMa

BD80134

€14.40 (€11.80 tax excl.)

Four-pole (3 poles + neutral) electrical distribution board with 8 outputs and 5 inputs, suitable for currents up to 80A, terminals made of brass with steel screws on polyamide support and protected with polycarbonate cover. Screw mounting on panel or DIN rail. Compact size. Part number: BD80134 Representative image for illustrative purposes, the item...

Electrical connection dealers

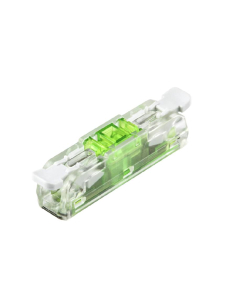

Double quick-connecting terminal 1 pole 0.5-4mm

TRACON

RVOGTT11

€0.50 (€0.41 tax excl.)

1 pole 32A, 400Vac double quick connection terminal for conductors from 0.5 to 4mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Reusable system. Part number: RVOGTT11 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Branch terminal 1 pole 2x35-240mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x35-240mm² Blue

TRACON

FLEAL-240/1K

€16.38 (€13.43 tax excl.)

1-pole shunt terminal for DIN rail mounting. Suitable for connection of copper and aluminum conductors. Part number: FLEAL-240/1KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Tapping terminal 1-pole 4x35-240mm² Green/Yellow | Adajusa

Bypass terminals

Derivation terminal 1 pole 4x35-240mm² Green/Yellow

TRACON

FLEAL-240/2ZS

€30.22 (€24.77 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Part number: FLEAL-240/2ZSRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

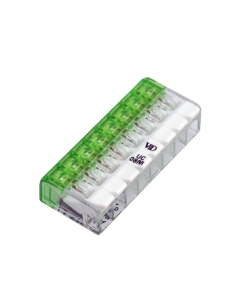

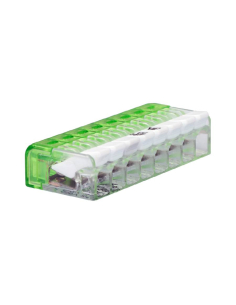

RVONK8| ADAJUSA 8-pole 24A quick connection terminal : price

RVONK8| ADAJUSA 8-pole 24A quick connection terminal : price 2

Electrical connection dealers

8-pole fast connection terminal 0.2-2.5mm

TRACON

RVONK8

€1.42 (€1.16 tax excl.)

8-pole 24A, 450Vac quick connection terminal for conductors from 0.2 to 2.5mm2. Screwless quick connection that guarantees a simple and safe electrical connection. Reusable system. Part number: RVONK8 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Connection Strips - Clemas

Black 6 mm terminal strip

TRACON

SF10A-H

€1.33 (€1.09 tax excl.)

6mm² 12-pole terminal strip, made of black polypropylene. For electrical connections. Part number: SF10A-H Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

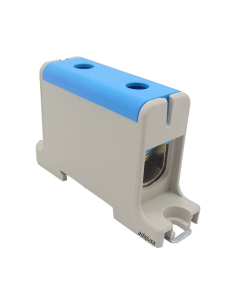

Branch terminal 1 pole 2x16-95mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 2x16-95mm² Blue

TRACON

FLEAL-95/1K

€6.11 (€5.01 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper conductors from 16 to 95 mm2and aluminum conductors from 16 to 95 mm2. Blue color Reference: FLEAL-95/1KRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

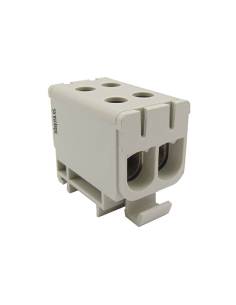

Branch terminal 1 pole 4x35-240mm2 gray | ADAJUSA

Bypass terminals

Derivation terminal 1 pole 4x35-240mm² Gray

TRACON

FLEAL-240/2

€30.22 (€24.77 tax excl.)

1-pole shunt terminal for DIN rail mounting. Valid for connection of copper and aluminum conductors. Reference: FLEAL-240/2Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Terminal block 1 pole 125A FVKK | Adajusa

Terminal block 1 pole 125A FVKK | Adajusa 2

Electrical connection dealers

1-pole connection distributor 125A 1000V

TRACON

FLSO50

€11.16 (€9.15 tax excl.)

1-pole electrical connection distributor suitable for intensities up to 125A, high-conductivity tinned copper contacts protected with a polycarbonate cover. Compact design. Fixing by screw or DIN rail. Inputs: 1 x 35mm 2 Outputs: 6 x 16mm 2Reference: FLSO50Representative image for illustrative purposes, the item supplied will correspond to the indicated...

Customers who bought this product also bought:

Signallers "6" for cables 1 to 2.5mm (Bag 100 units)

Signalling elements

Signallers 6 for cables from 1 to 2.5mm (Bag 100 units)

Unex

98911SE1811-6

€2.82 (€2.31 tax excl.)

Pre-cut signallers for cables marked "6", for electrical installations, cable size from 1mm to 2.5mm.Bag of 100 units (in 5 strips of 20 numbers).Ref: 1811-6Representative image for illustrative purposes, the item supplied will correspond to the indicated

Polyester cabinets

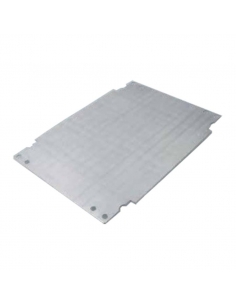

Insulating mounting plate for 500x400 fiber cabinet - Gaestopas

Generico-GAE

GGC54PP

€24.89 (€20.40 tax excl.)

Insulating mounting plate for 500x400mm fiber cabinets of the brand Gaestopas. Reference: GGC54PP Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

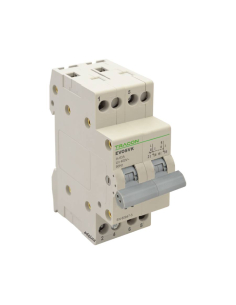

Change over switch 2 poles 3 positions 32A SVK2-32 | ADAJUSA | price

Modular disconnectors and switches

Change over switch 2 poles 32A - Tracon

TRACON

SVK2-32

€15.58 (€12.77 tax excl.)

32A 2-pole Change over switch , operated by lever with 3 fixed positions (I-0-II), 2 contacts. Reference: SVK2-32 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

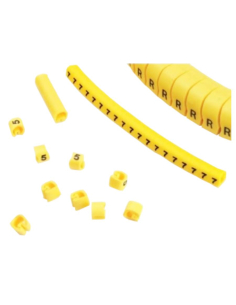

Signallers "Y" for cables 1 to 2.5mm (Bag 100 units)

Signalling elements

Y signallers for cables from 1 to 2.5mm (Bag 100 units)

Unex

98911SE1811-Y

€2.82 (€2.31 tax excl.)

Pre-cut signallers for "Y" marked cables, for electrical installations, cable size from 1mm to 2.5mm. Bag of 100 units (in 5 strips of 20 numbers). Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Signallers "-" for cables 1 to 2.5mm (Bag 100 units)

Signalling elements

Signallers - for cables from 1 to 2.5mm (Bag 100 units)

Unex

98911SE1811--

€2.82 (€2.31 tax excl.)

Pre-cut signallers for "-" marked cables, for electrical installations, cable size from 1mm to 2.5mm. Bag of 100 units (in 5 strips of 20 numbers). Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Interface relay 1 contact ,12A 230Vac SCHNEIDER | Adajusa

Interface relay 1 contact ,12A 230Vac SCHNEIDER | Adajusa 2

Solid-state and electromagnetic relays

Relay 230Vac 1 contact 12A RSB SERIES - SCHNEIDER

Schneider

RSB1A120P7

€6.82 (€5.59 tax excl.)

Pluggable connection relay with 1 contact, 230Vac, 12A . RSB-HARMONY series for use in standard applications, easy installation and operation. Compact size. Flat pin for connection on a mounting base SCHNEIDER RSZE1S35M, RSZE05P. Reference: RSB1A120P7 Representative image for illustrative purposes, the supplied article will correspond to the...

View

Signallers "N" for cables 1 to 2.5mm (Bag 100 units)

Signalling elements

Signallers N for cables from 1 to 2.5mm (Bag 100 units)

Unex

98911SE1811-N

€2.82 (€2.31 tax excl.)

Pre-cut signallers for cables marked "N", for electrical installations, cable size from 1mm to 2.5mm. Bag of 100 units (in 5 strips of 20 numbers). Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

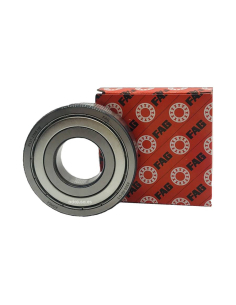

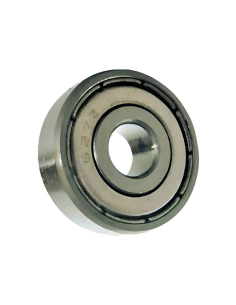

Deep groove ball roller

Bearing 6202-ZZ FAG 15x35x11mm

FAG

6202-2Z

€3.42 (€2.80 tax excl.)

Ball bearing 6202-ZZ dimensions 15x35x11mm. With two metal closure sealing caps (ZZ). Reference: 6202-2Z Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

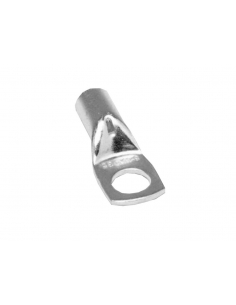

Copper terminals
