Regulator pressure 1/4 0-12 bar FRL MINI series...
Regulator pressure 1/4 0-12 bar FRL MINI series - Aignep

Regulator pressure 1/4 0-12 bar FRL MINI series - Aignep

€17.12 Tax included

€14.15 tax excl.

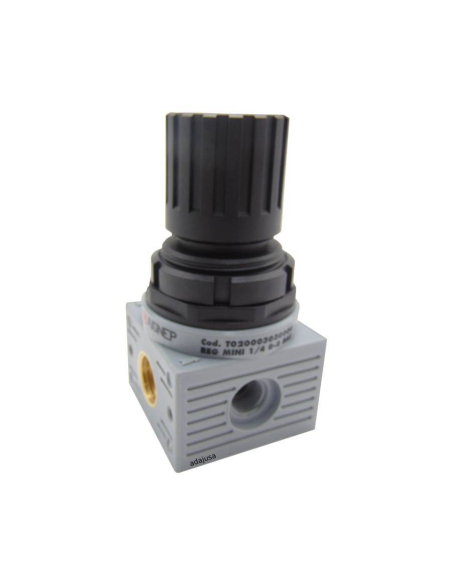

Regulator 1/4pressure, with regulation between 0-12 bar, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure.

Series: FRL MINI
Reference: T020003040000

Simbolo neumático regulador de presión

Logotipo Aignep
Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Regulator 1/4pressure regulator, regulation 0-12 bar, body made of high resistance technopolymer, and with metallic terminations. Allows stability of the outlet pressure to the preset pressure starting from an equal or higher inlet pressure. Possibility of fixing by means of lateral holes.

Pressure gauge not included (can be ordered separately)

Technical characteristics.

  • Manufacturer: Aignep
  • Part number: T020003040000
  • Threaded connection size: 1/8"
  • Regulating range: 0-12 bar
  • Maximum inlet pressure: 15 bar
  • Flow rate at 6 bar (∆P 1 bar): 600 Nl/min
  • Fluid: Filtered air, lubricated or unlubricated.
  • Wall fixing screws: M3 (not included)
  • Pressure gauge connection: 1/8"
  • Temperature: -10ºCto +50ºC
  • Reference standard: PED 2014/68/EU

(**)Other regulation ranges on request:

  • 0 a 2 bar
  • 0 a 4 bar

Mounting accessories not included and pressure gauge not included in delivery.

Dimensiones regulador de presion FRL Mini Aignep Adajusa
Cotas regulador de presión FRL mini Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
