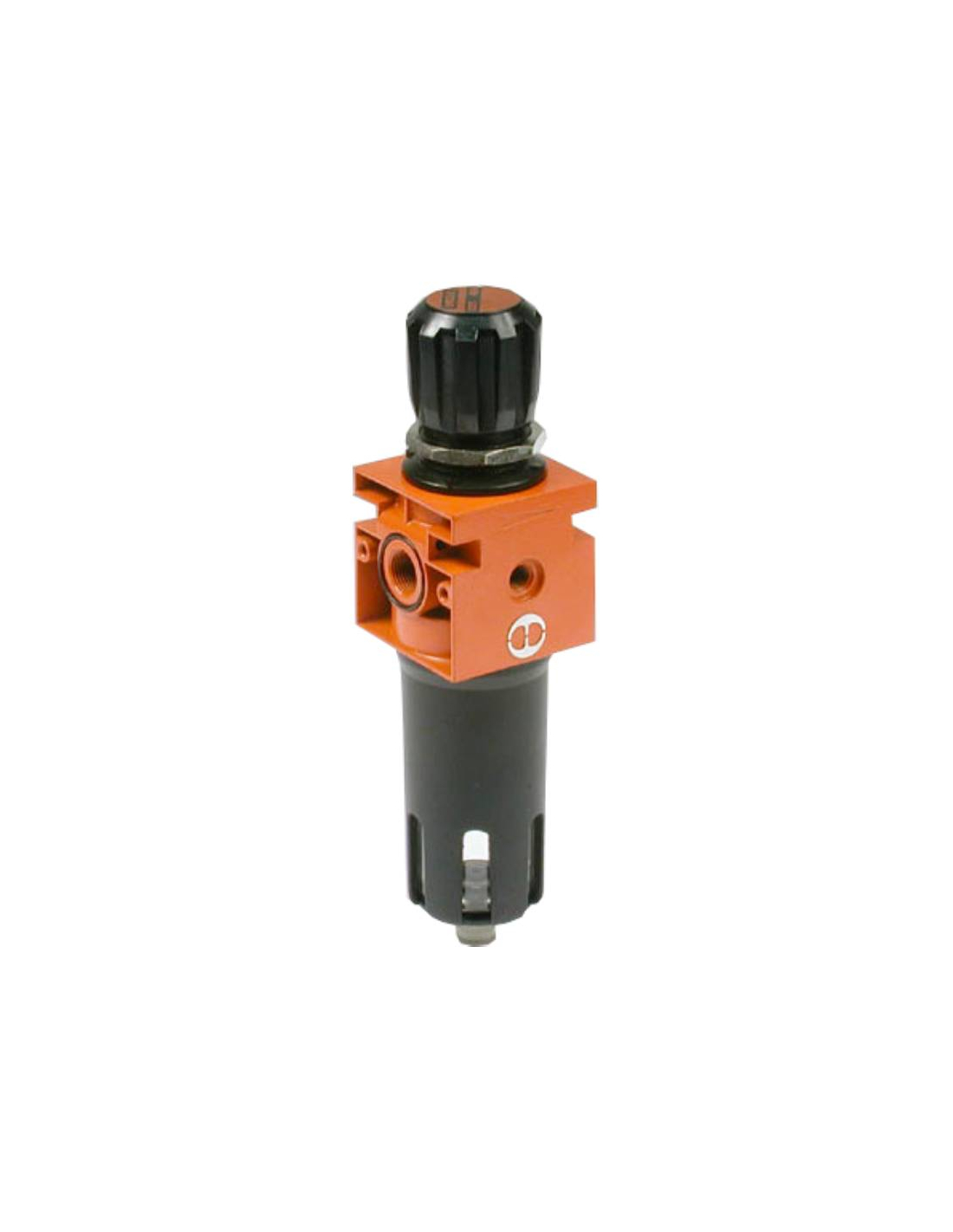

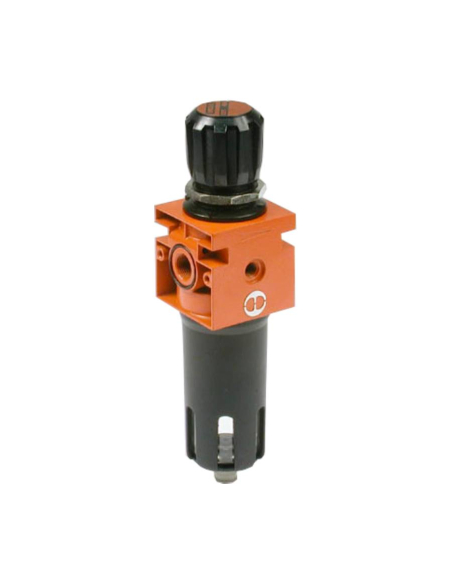

Filtering unit with 1/2 pneumatic pressure regulator, consisting of 1 element (Filter-regulator) with automatic purge. This device combines in a single unit the functions of filtration, condensation separation and pressure regulator. The pneumatic pressure regulation margin is between 0 and 12 kg/cm2, the degree of filtering is 20 μm.
Among the main characteristics of this filtering group, it has a great flow performance compared to its size, metallic construction, excellent resistance to corrosion.
The type of purge is automatic, it works by depression.
Note: the pressure gauge is not included in the supply, it must be ordered separately.
Characteristic:
- Manufacturer: Metal Work
- Manufacturer reference: 1425514
- Thread size: 1/2"
- Maximum inlet pressure: 18 bar .
- Condensation discharge type: SAC
- Metal glass with external viewer.
- Built-in overpressure bleed valve.
- Filtration degree: 20μm.
- Cup capacity: 45 cm 3
- Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 1000
- Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) (Nl/min): 2500
- Pressure gauge coupling: 1/8"
- Wall fixing screws: M4x55.
- Mounting position: Vertical.
For other sizes or references: consult.
.jpg?1645545887663)
Material for professional use, install in compliance with the regulations in force at the place of installation.
For more information, you can download the technical sheet by clicking on the "Annexes" tab.
