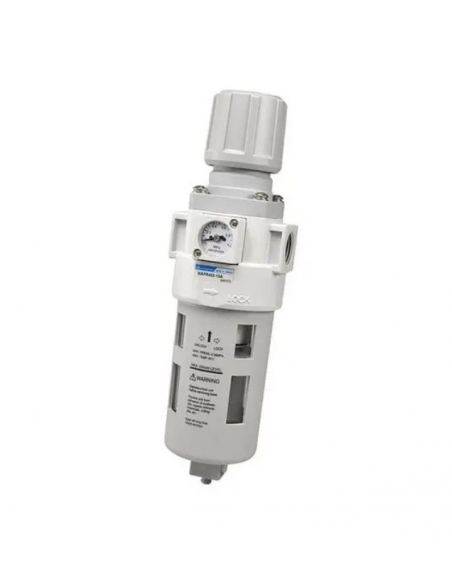

1/2 metal filter-regulator with integrated pressure gauge on the regulator. Pneumatic maintenance unit FR. Body in metal and plastic cup. The pressure gauge is integrated into the regulator. Fixing by metal bracket, included in the supply.
Among the main characteristics of this filter group is a large flow mixing, high robutes and easy handling for the regulation and emptying of the filter vessel.
Filtering Group Features:
- - Manufacturer: Mindman.
- - Manufacturer's reference: MAFR403-15A
- - Number of elements: 1 (FR).
- - Thread size: G 1/2".
- - Adjustment range: 0-8.5 Kgr/cm2.
- - Maximum input pressure: 10 Kgr/cm2.
- - Test pressure: 15 Kgr/cm2.
- - Integrated pressure gauge on the pressure regulator.
- - Effective pitch: 32 mm2.
- - Degree of filtration: 5 mm. (Optional 40'm)
- - Manual-semi-automatic condensation purge.
- - Glasses with external viewfinder.
- - Vessel capacity: 65 c.c.
- - Flea type: semi-automatic.
- - Fixing bracket: Included.
For other sizes or references: consult.
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the data sheet by clicking on the tab "Attachments"
