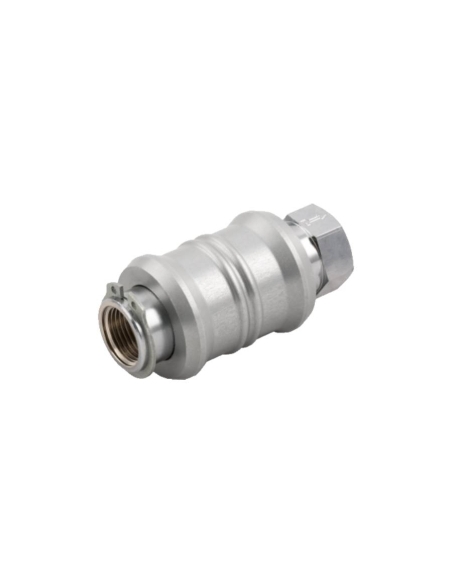

Valve 1/4 female 3- way cut-off - AIGNEP

€12.22 Tax included

€10.02 tax excl.

6060 1/4

Valve 1/4 female shut-off , with discharge (3- way ).

Series: Function
Reference: 6060 1/4

aignep
normative

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 female shut-off valve, with discharge (3- way ), frequently used as a circuit isolating valve.

By moving the ring back, the air supply is interrupted and the circuit is discharged; by moving the ring forward, the air supply to the circuit is established.

These valves can also be considered ON-OFF valves, in the ON position the air from the circuit passes to the use through the connection of the radial holes of the valve shaft, in the OFF position the connection between the circuit is closed. and utilization, and the air flows automatically due to pressure difference.


exhaust valve drawing

Technical characteristics:

  • Manufacturer: Aignep
  • Reference: 6060 1/4
  • Size: 1/4"
  • Fluid: Compressed air
  • Slide material: anodized aluminum
  • Shaft material: chrome plated brass
  • O-Ring: NBR
  • Safety ring: steel
  • Pressure: - 0.99 bar + 10 bar
  • Temperature: -20 ºC + 80ºC.
  • Thread: Gas cylindrical IO 228

Dimensions:


6060DIMENSIONS
6060DIMENSIONSTABLE


Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
