Disconnector switch 4 poles 32A full 67x67mm - Giovenzana
Disconnector switch 4 poles 32A full 67x67mm - Giovenzana

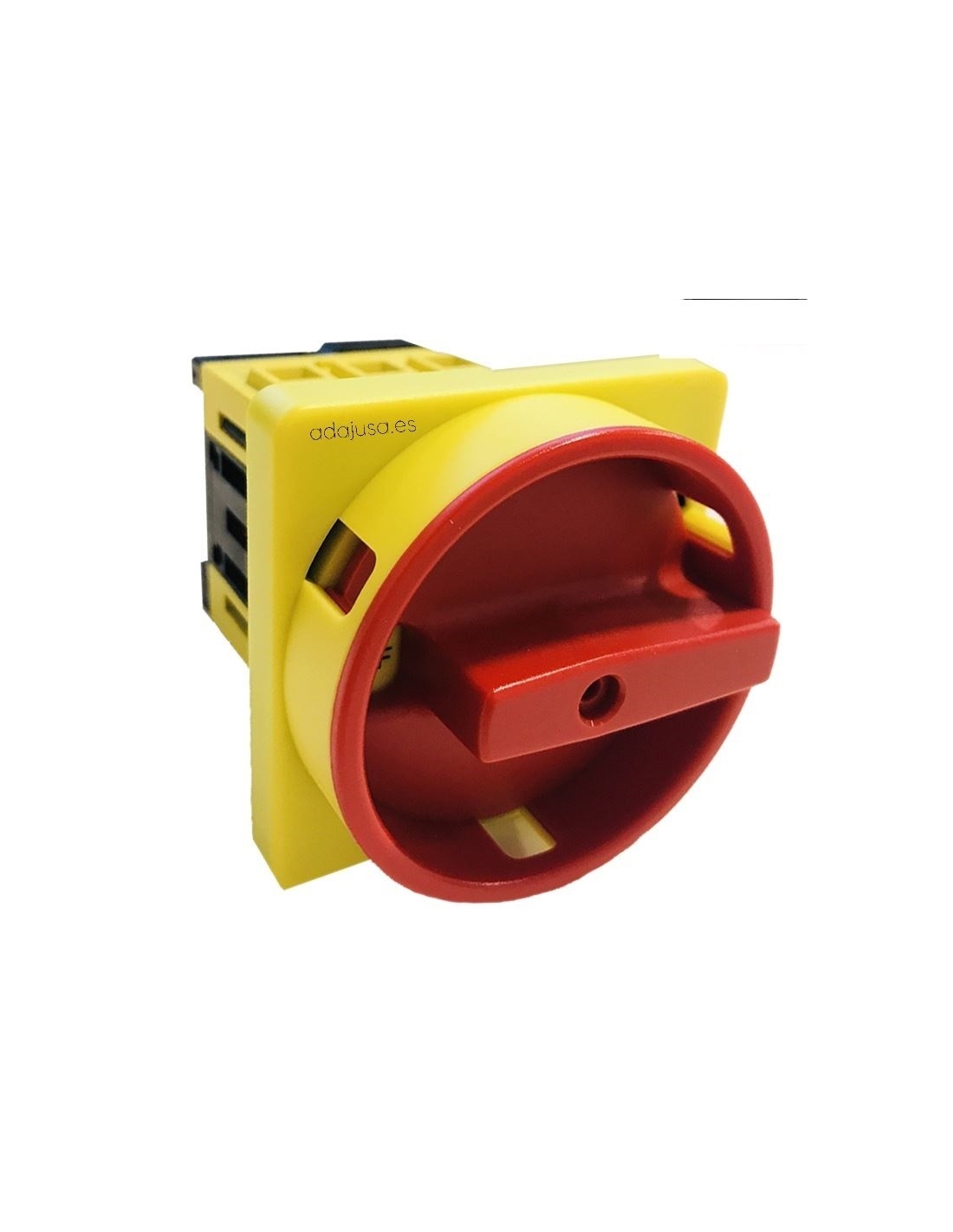

Disconnector switch 4 poles 32A series SQ 67x67 yellow red lever - Giovenzana

€26.46 Tax included

€21.87 tax excl.

Disconnecting switch 4 poles (tetrapolar) 32A., rotary control 90º 0-1. front the yellow color and red lever, possibility of locking by padlock, made according to the strictest European standards, which allow, comply with the requirements in terms of safety.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines. Suitable up to 15kw. 400Vac.

Reference: GISQ320467R
esquema electrico interruptor 4 polos
Giovenzana
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.



Disconnector switch 4 poles (tetrapolar) 32A for inductive loads (Electric motors) and general control. Rotary control 90º with two positions 0-1, faceplate in yellow and lever in red. Possibility of locking by padlock.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by fixing panel (back frame), IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

This three-phase switch is suitable for machinery, motors and installations up to 7.5kw connected to 230Vac or 11kw connected to 400Vac.

The supply includes:

  • 3-pole switch: SQ323003R
  • Faceplate: 010/0001
  • Side contact: PL004002
Padlock not included in the supply.

      characteristics:

      • Brand: Giovenzana
      • Switch reference: SQ032003R
      • Faceplate reference: 010/0001
      • Additional pole reference: PL004002
      • Number of poles: 3 + 1 additional
      • Rated voltage Ue: 690V.
      • Nominal intensity Ie (AC21A): 32A.
      • Ith thermal nomitanl intensity: 40a.
      • Rated interrupt capacity: 8kA.
      • Contacts: Slow opening of double interrupt.
      • Number of maneuvers / hours: 120.
      • Mechanical durability: 100,000 maneuvers.
      • Maneuver angle: 90º.
      • Built-in assembly.
      • Degree of protection:
        • Controls type 1-4-4X: IP-65.
        • Bornes: IP-20.
      • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14

      Table of intensities and powers of employment:

      • Use category AC-21A: 40a.
      • Use category AC-22A: 32A.
      • Use category AC-23A:
        • Standard three-phase motors 230Vac: 32A - 10kW.
        • Standard three-phase motors 400Vac: 32A - 18,5kW.
      • Use category AC-3:
        • Standard three-phase motors 230Vac: 27A - 7,5kW.
        • Standard three-phase motors 400VAc: 27A - 15kW.

        dimensions:

        Dimensiones interruptor seccionador 25A Giovenzana

        assembly:

        Montaje interruptor de levas trifásicos
