Filter 3/8 5 microns semi-automatic drain size 1 Syntesi series - Metal Work

€28.38 Tax included

23.26 tax excl.

5613F103

3/8 filter, with a filtration degree of 5μm and semi-automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.

Series: Synthesis
Reference: 5613F103

metal work logo

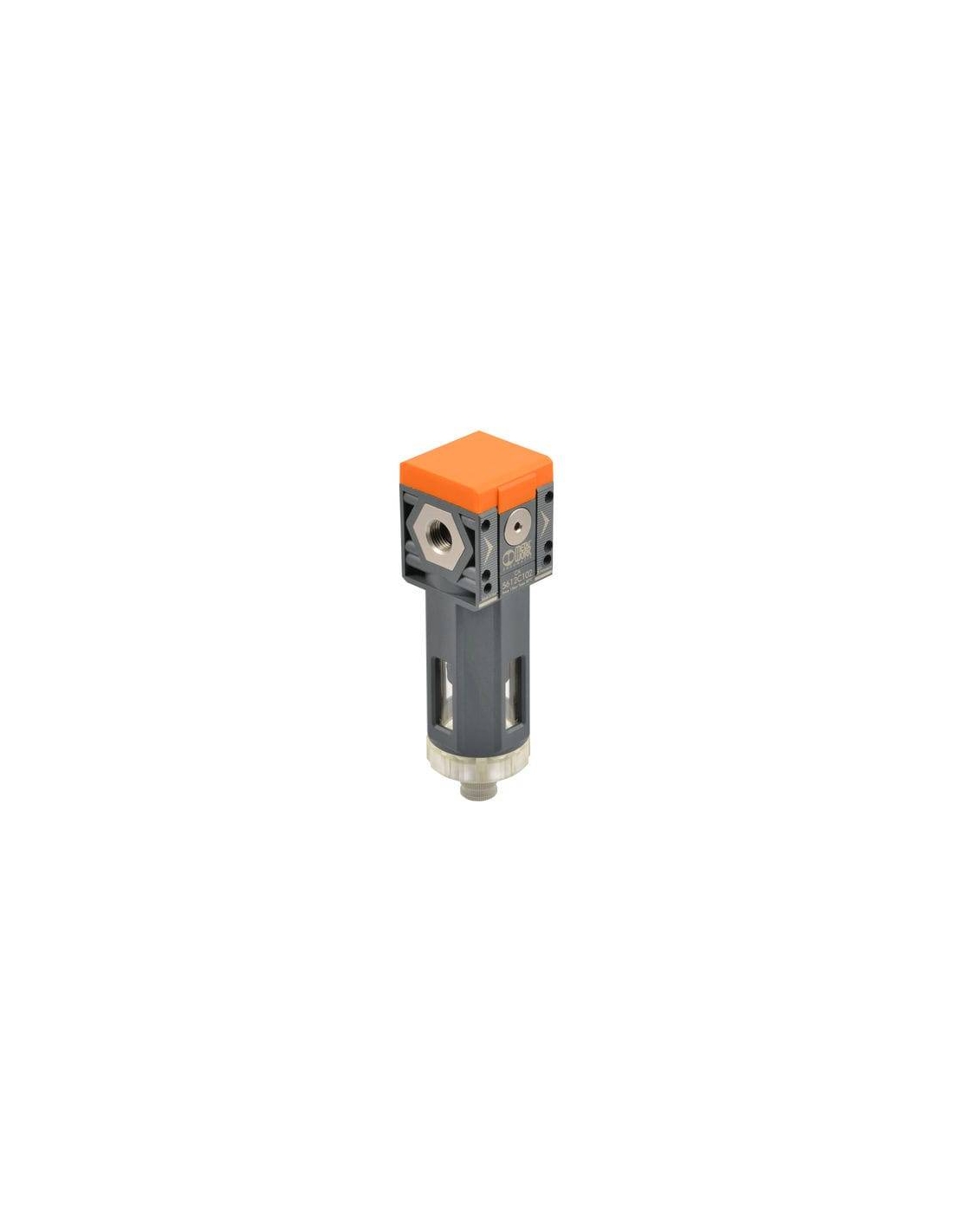

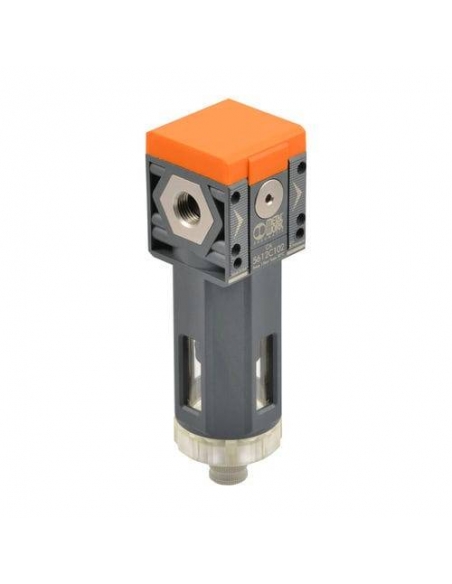

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/8 filter cup with a filtration degree of 5μm to retain solid or liquid impurities from the air compressor. Compact size (SY1). The type of purge is semi-automatic, it discharges when the pressure in the filter approaches zero.

 Characteristic:

  • Manufacturer: Metal Work
  • Manufacturer reference: 5613F103
  • Threaded drive: 3/8"
  • Group Size: Size 1
  • Filtered degree: 5 μm
  • Maximum inlet pressure ( bar /Mpa/psi): 15 / 1.5 / 217
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 1300
  • Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 1750
  • Fluid: Compressed air or other inert gases
  • Bowl capacity (condensation) (cm3): 30
  • Flow rate of additional air intakes at 6.3 bar (Nl/min): 500
  • Wall fixing screws: Number 2 M4 screws
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
