Filter 3/8 20 micron semi-automatic purge size...
Filter 3/8 20 micron semi-automatic purge size 1 FRL EVO series - Aignep

Filter 3/8 20 micron semi-automatic purge size 1 FRL EVO series - Aignep

€28.72 Tax included

€23.54 tax excl.

3/8 filter, with a filtration degree of 20μm and semi-automatic discharge, size 1, for retention of solid or liquid impurities from the air compressor .These filter cups are made of technopolymer with metal endings. Made in Italy.

Series: FRL Evo
Part number: Y010104201000

Simbolo neumatico filtro Adajusa
Logotipo Aignep

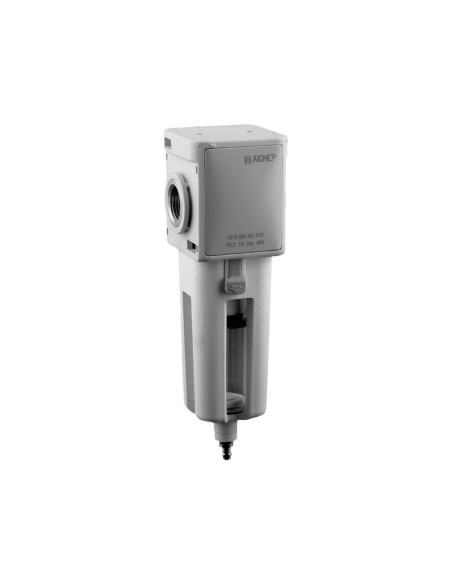

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/8 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the aircompressor .Compact size (T1). The type of purge is semi-automatic, discharges when the pressure in the filter approaches zero.

Features:

  • Manufacturer: Aignep
  • Manufacturer's part number: Y010104201000
  • Threaded drive: 3/8"
  • Group size: size 1.
  • Filtration degree: 20 μm
  • Maximum inlet pressure: 15 bar
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 2500
  • Fluid: Compressed air or other inert gases
  • Cup capacity (condensing) (cm3): 28
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
